49
7.4.1 Layer management

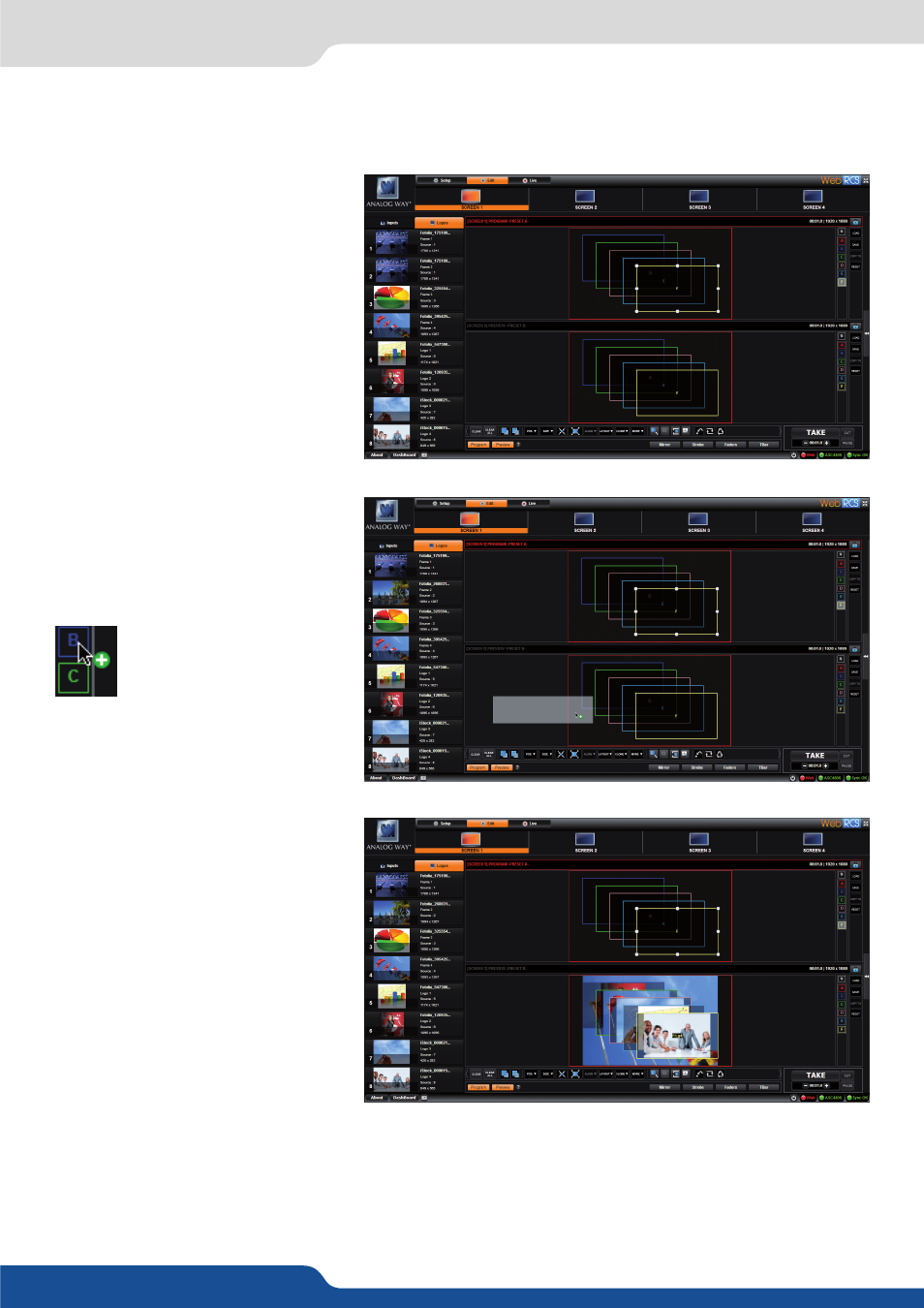

When you enter into the Edit menu, you
will encounter by default this window.
On this example, we have the Screen 1
Program and the Screen 1 Preview. The
following example can be applied for
any other output configurations.
To display an input into one of the
available layers A, B, C, D, E or F simply
drag and drop the input from the left
to the layer on the chosen screen.
Remember that a layer can be filled
with an input but also with logos or
frames.
You can affect a source to a
layer by dropping the selected
source into the layer letter.
7.4.1 Layer management
7.4 Edit
Your sources are now affected to layers.
When a layer contains an input, it dis-
plays on the Web RCS an image into it
or a live capture of the affected input.
You can affect the inputs directly to any
preset, even to the Program preset.
