Communication Concepts 2N5192 User Manual
Npn power transistors, Features, Applications

June 2007
Rev 3
1/9
9
Table 1.
Devices summary
Order code
Marking
Package
Packaging
2N5191
2N5191
SOT-32
Tube
2N5192
2N5192
SOT-32
Tube
2N5191
2N5192
NPN power transistors
Features
■
NPN transistors
Applications
■
Linear and switching industrial equipment
Description
The devices are manufactured in Planar
technology with “Base Island” layout. The
resulting transistor shows exceptional high gain
performance coupled with very low saturation
voltage. The PNP type of 2N5192 is 2N5195.

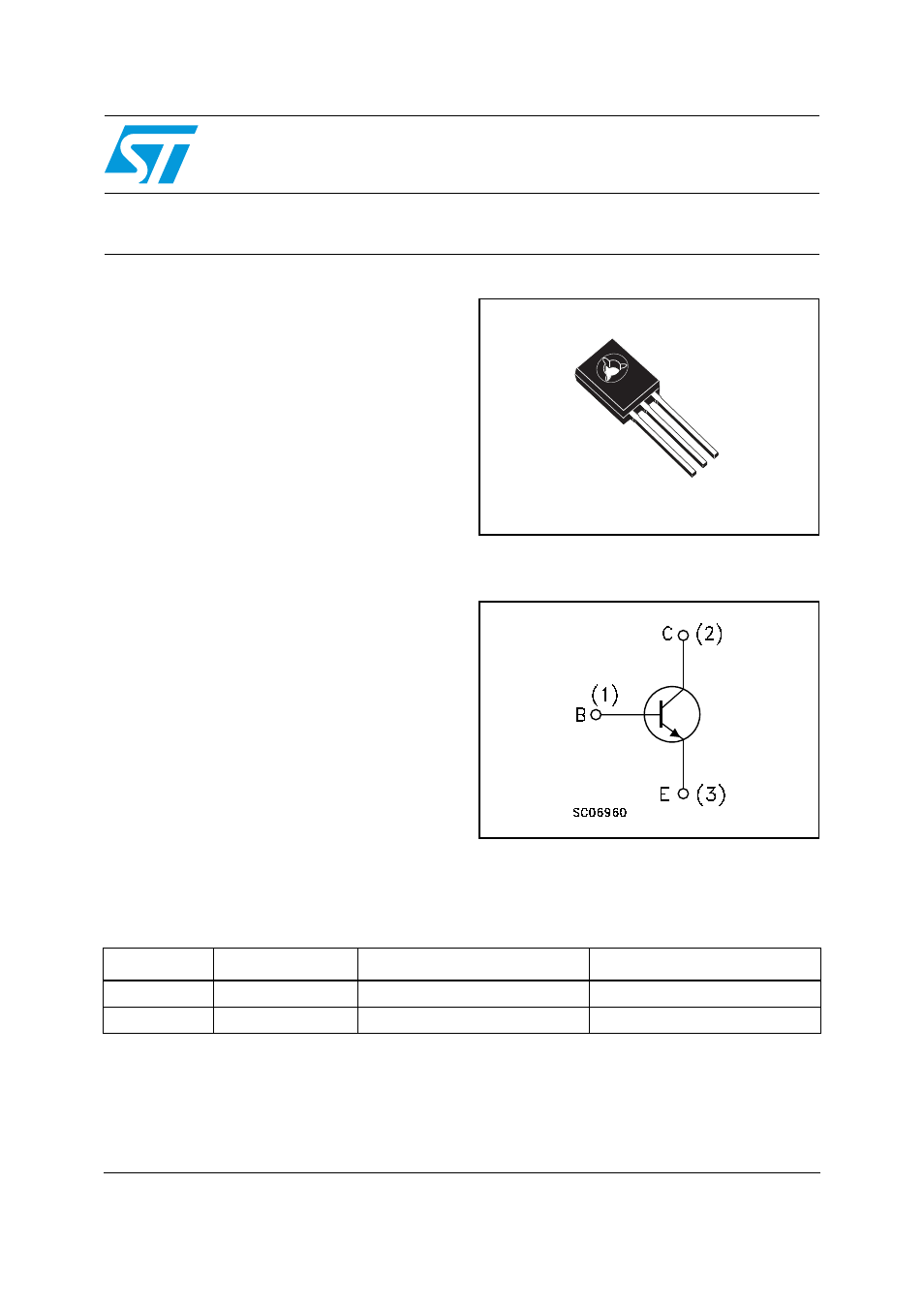

Figure 1.
Internal schematic diagram
3
2
1
SOT-32
