Huber+suhner

HUBER+SUHNER
®
DATA SHEET

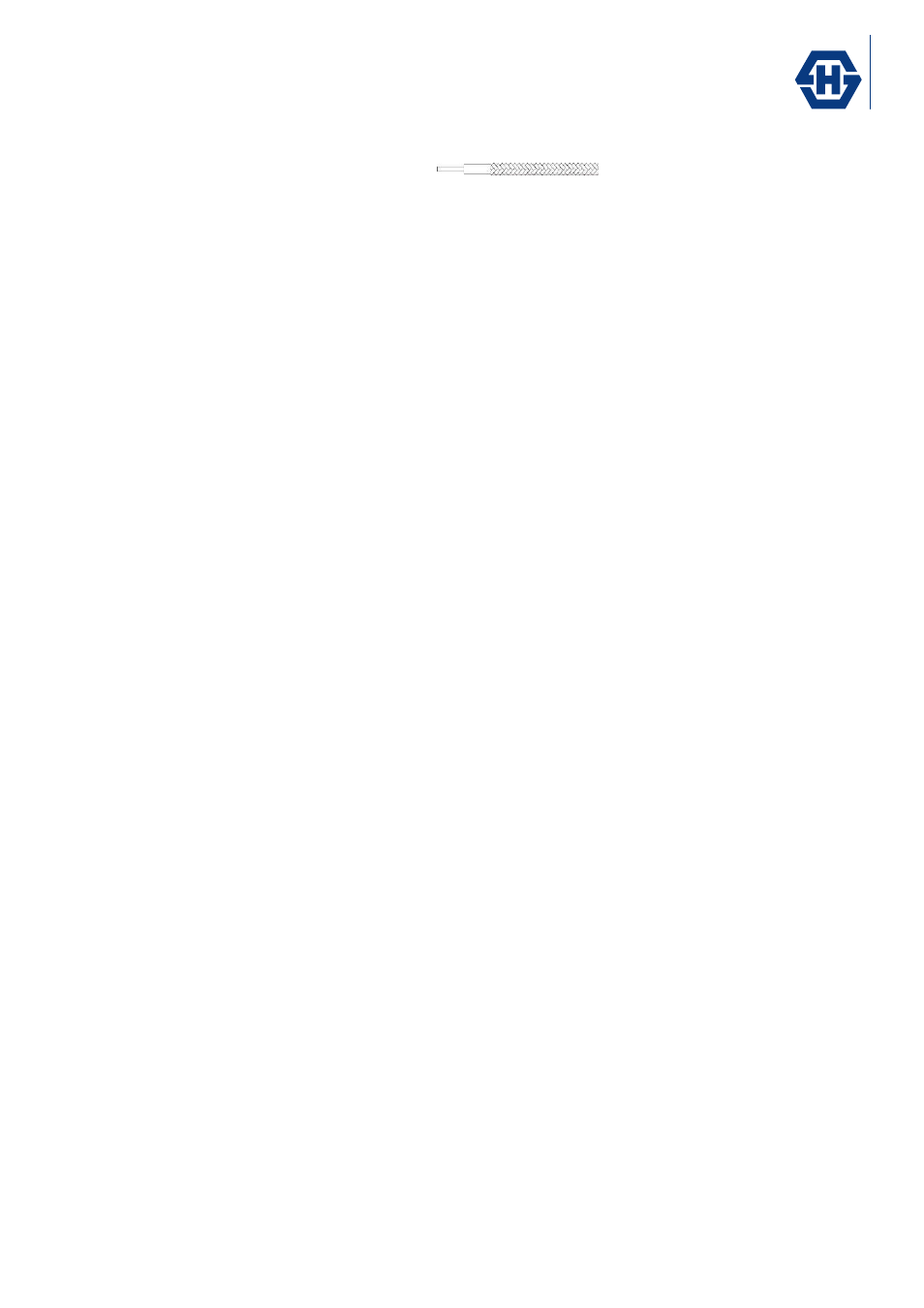

Coaxial Cable: SUCOFORM_250-01
Rev.: E
Document: DOC-0000225851 J
Issued: 25.01.11
Uncontrolled Copy
Page 1/2
Description
SUCOFORM, the handformable microwave cable
Technical Data
Construction
Material
Detail
Diameter
Centre conductor
Copper, Silver plated
Wire
1.67 mm
Dielectric
PTFE
5.24 mm
Outer conductor
Copper, Tin plated
Tin soaked braid, 100 % 6.3 mm
HUBER+SUHNER SUCOFORM 250-01 50 Ohm (PA no.)
Electrical Data
Impedance
50
Ω +/- 2
Max. operating frequency
18
GHz
Capacitance
95
pF/m
Velocity of signal propagation
71
%
Signal delay
4.7 ns/m
Insulation resistance
≥ 1 x
10
8
MΩm
Min. screening effectiveness
> 100 dB (up to 18 GHz)
Max. operating voltage
3.5 kV
rms
(at sea level)
Test voltage
7.5 kV
rms
(50 Hz/1 min)
Mechanical Data
Weight
12.5 kg/100 m
Min. bending radius
static
30
mm
repeated (for max. 50 bendings) 120 mm
Environmental Data
Temperature range
-65 °C... + 165 °C
Installation temperature
-20 °C... + 60 °C
Flammability
IEC 60332-1, UL 1581 § 1080 (VW-1)
2002/95/EC (RoHS)
compliant
Ordering Information
Order as
SUCOFORM_250-01
Additional Information
Remarks
(For details refer to the HUBER+SUHNER MICROWAVE CABLES AND ASSEMBLIES GENERAL CATALOGUE or contact
your nearest HUBER+SUHNER partner)
Cable group
Y14 5 mm / 50 Ohm
