The RF Line NPN Silicon Power Transistor
150W(PEP), 30MHz, 28V
M/A-COM Products
Released - Rev. 07.07
MRF429
• North America Tel: 800.366.2266 / Fax: 978.366.2266
• Europe Tel: 44.1908.574.200 / Fax: 44.1908.574.300
• Asia/Pacific Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macomtech.com for additional data sheets and product information.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
changes to the product(s) or information contained herein without notice.
ADVANCED: Data Sheets contain information regarding a product M/A-COM Technology Solutions
is considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY: Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
Designed primarily for high–voltage applications as a high–power
linear amplifier from 2.0 to 30 MHz. Ideal for marine and base station
equipment.
•
Specified 50 V, 30 MHz Characteristics —
Output power = 150 W (PEP)
Minimum gain = 13 dB
Efficiency = 45%
•
Intermodulation distortion @ 150 W (PEP) —
IMD = –32 dB (Max)
•
Diffused emitter resistors for superior ruggedness
•
100% tested for load mismatch at all phase angles with 30:1
VSWR
@ 150 W CW

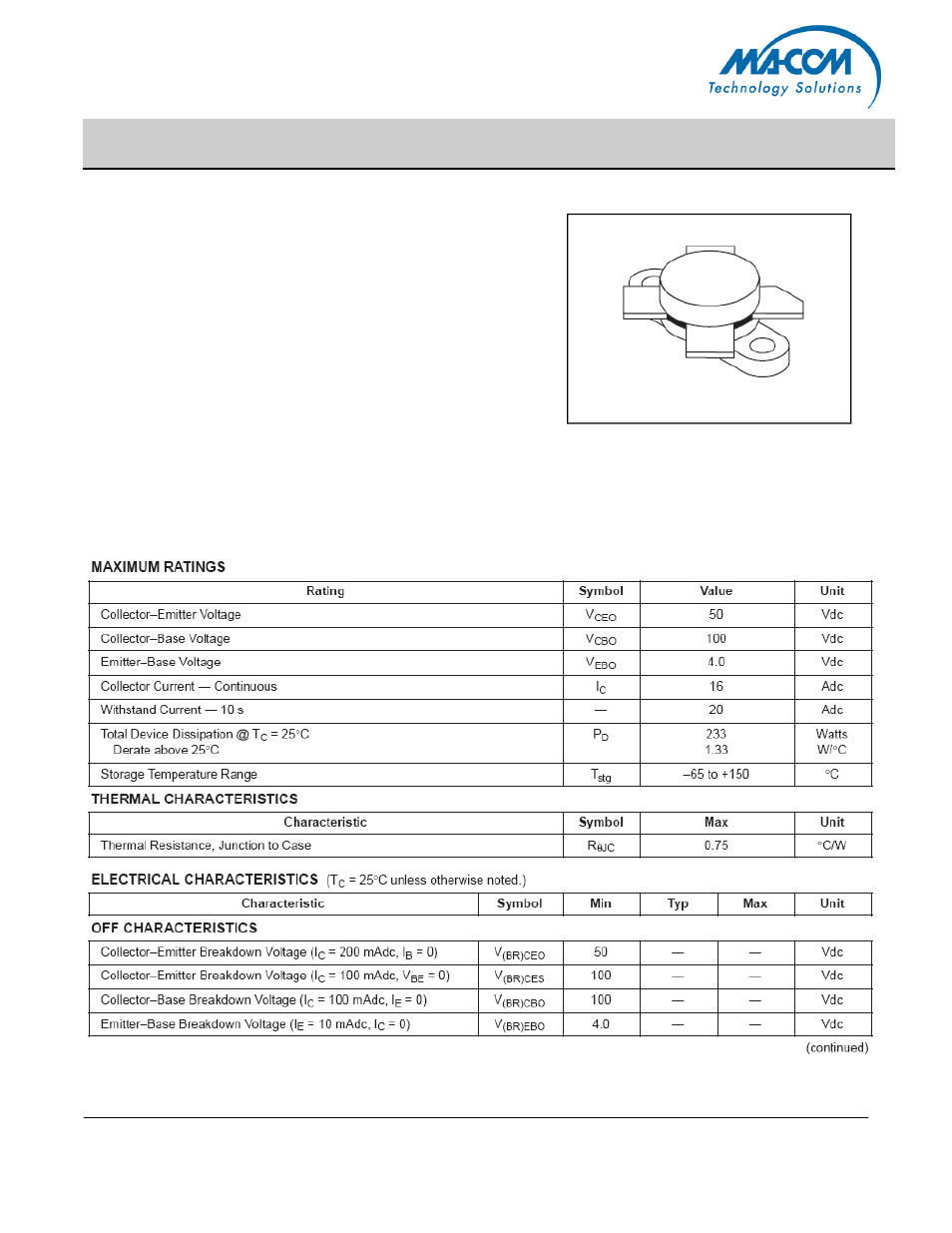

Product Image
CASE 211–11, STYLE 1
