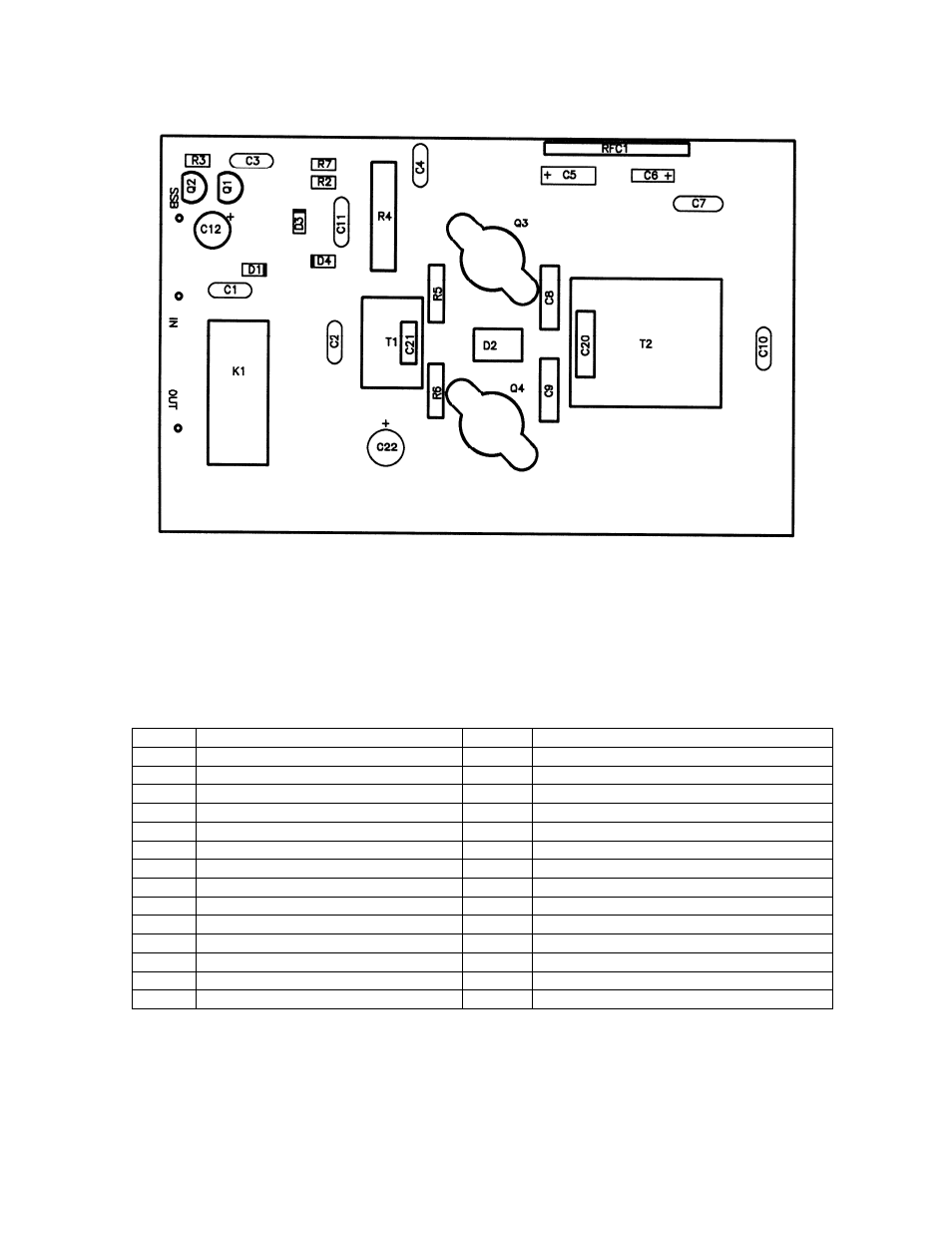

Figure 2 - EB63A COMPONENT LAYOUT
EB63A PARTS LIST
C1 33 pF Dipped Mica R1 Not Used
C2 18 pF Dipped Mica R2 47K ohm ¼ W Resistor
C3 0.1 uF Ceramic Mono R3 10K ohm ¼ W Resistor
C4 0.1 uF Ceramic Mono R4 82 ohm 5 W Resistor
C5 10 uF 35 Vdc Electrolytic R5, 6 10 ohm ½ W Resistor
C6 1 uF 35 Vdc Tantalum R7 1.5K ¼ W Resistor
C7 0.001 uF Erie Disc Ceramic RFC1 10 Ferroxcube Beads on #18 AWG Wire
C8, 9 330 pF Dipped Mica D1 1N4001
C10 24 pF Dipped Mica D2 MFJ243 Transistor
C11 470 pF Ceramic Disc D3, 4 1N4148
C12 22 uF 25 Vdc Electrolytic Q1, 2 2N4401
C20 910 pF Dipped Mica Q3, 4 MRF454
C21 1100 pF dipped Mica T1 16:1 RF400 Transformer
C22 470 uF 10 Vdc Electrolytic T2 16:1 RF1000 Transformer
K1 Omron G2RL-24-DC12 8 Amp
6
