CM2L40 Installation Instructions
4

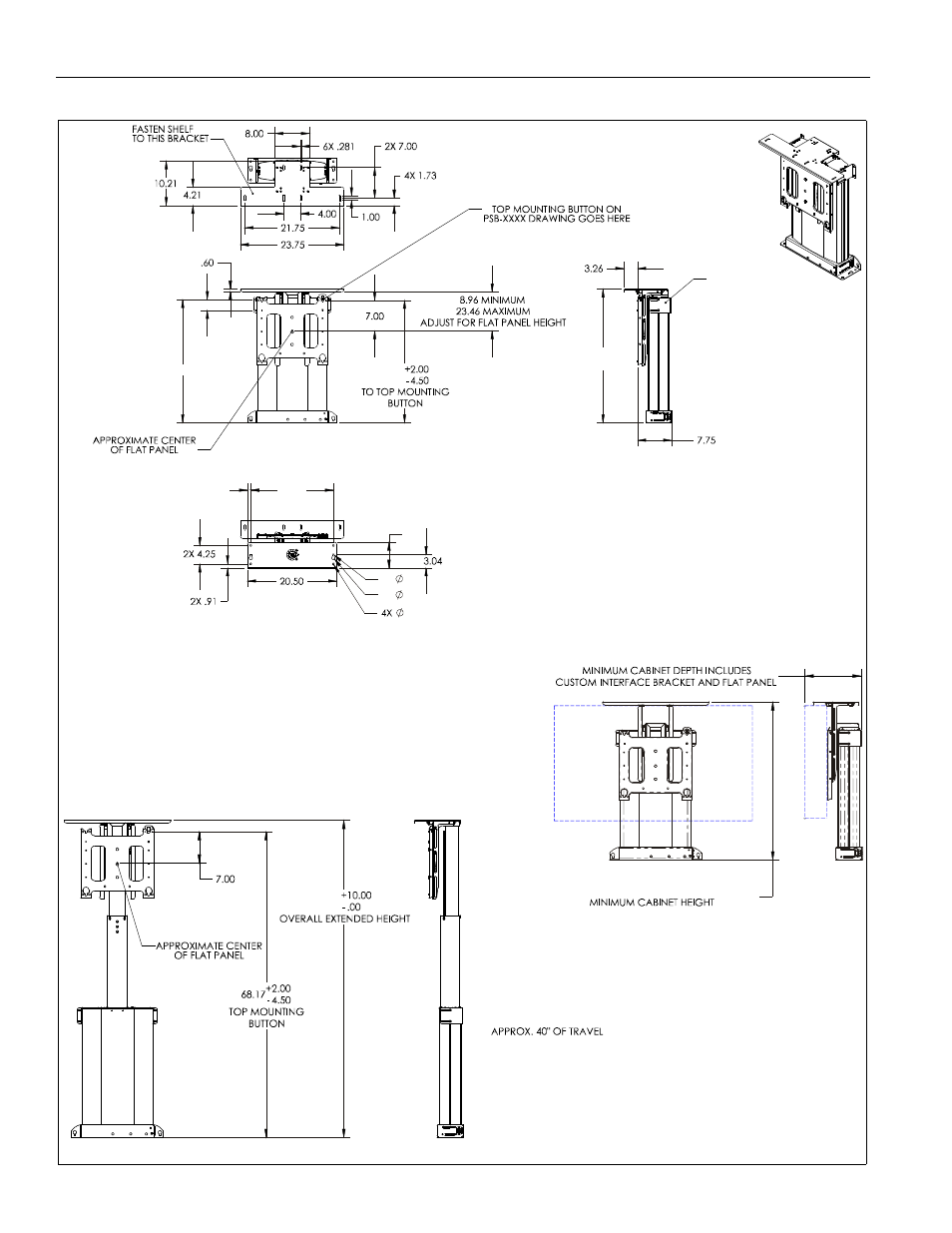

DIMENSIONS
2.50
28.38
28.17
.41
5.91
19.00 .75
2x .75
2x .34
2X
BASE MOUNTING
HOLES
OF TRAVEL
APPROX. 40"
(2) SIDE MOUNTING
BRACKETS (1 PER SIDE)
SHELF BRACKET
AND
MOUNTING HOLES
NOTES:
THE CUSTOM INTERFACE BRACKET REQUIRED 1.
FOR YOUR FLAT PANEL (NOT SHOWN) WILL ADD
1/2" TO 2" IN DEPTH AND MAY AFFECT THE LOCATION
OF THE FLAT PANEL ON THE MOUNT.
2. ALLOW FOR A MINIMUM OF 1.5" OVERHANG ON ALL
SIDES OF SHELF OVER FLAT PANEL.
3. ALSO SEE PSB-XXXX DRAWING (CUSTOM INTERFACE BRACKET)
TO CALCULATE CORRECT FLAT PANEL LOCATION.
4. FLAT PANEL HEIGHT MUST BE USED TO CALCULATE
MINIMUM CABINET HEIGHT.
70.74
DIMENSIONS: INCHES
