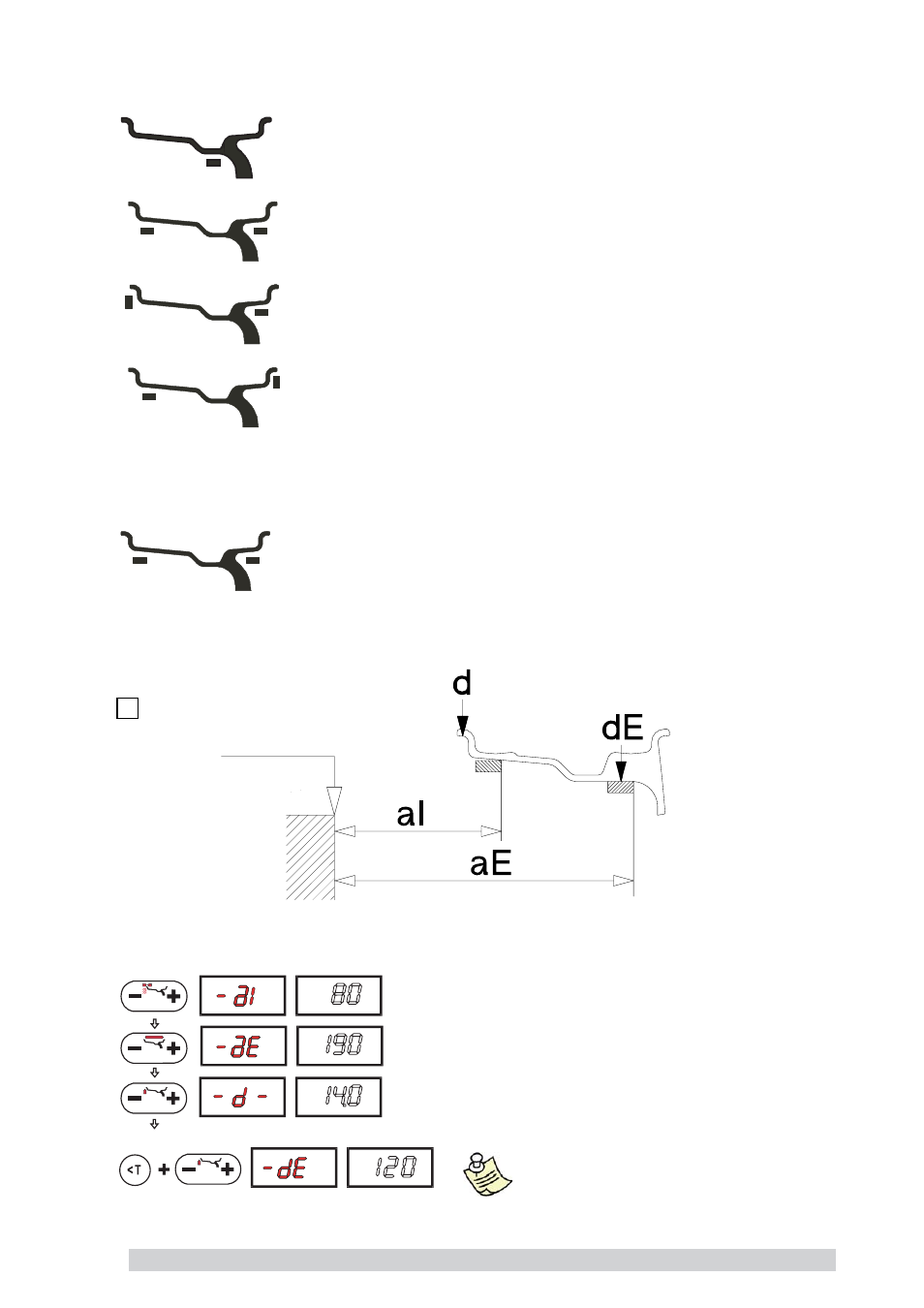

This setting is also valid for the following correction modes:
The STATIC mode is required for motorcycle wheels or when it is not possible to
place the counterweights on the two sides of the rim.
Balancing of light alloy rims with application of adhesive weights on the shoul-
ders of the rims. The position of the weights is fi xed from the edges of the rim to
the inside of the rim.
Combined balancing: adhesive weight on the outside and clip-on weight on the
inside. The position of the outside weight is fi xed from the outside edge of the
rim to the inside of the rim.
Combined balancing: adhesive weight on the inside and clip-on weight on the
outside. The position of the inside weight is fi xed from the edge of the rim to the
inside of the rim.
b)
Balancing of alloy rims with hidden application of the out-
side adhesive weight.
The position of the weights can be set.
0 gauge
MEASURING:
SETTING:
Set the nominal value shown on the wheel rim, bea-
ring in mind that in the calculations the inside adhesive
weight is considered applied at a diameter Ø d - 1".
Note: not setting dE as it is automatic, dE = d - 2”
.
