CEMB USA K9 (B) - Manual (Page 10)

I 0672 - 10
1
2
1
2
1
2
1 2
1
2
GB

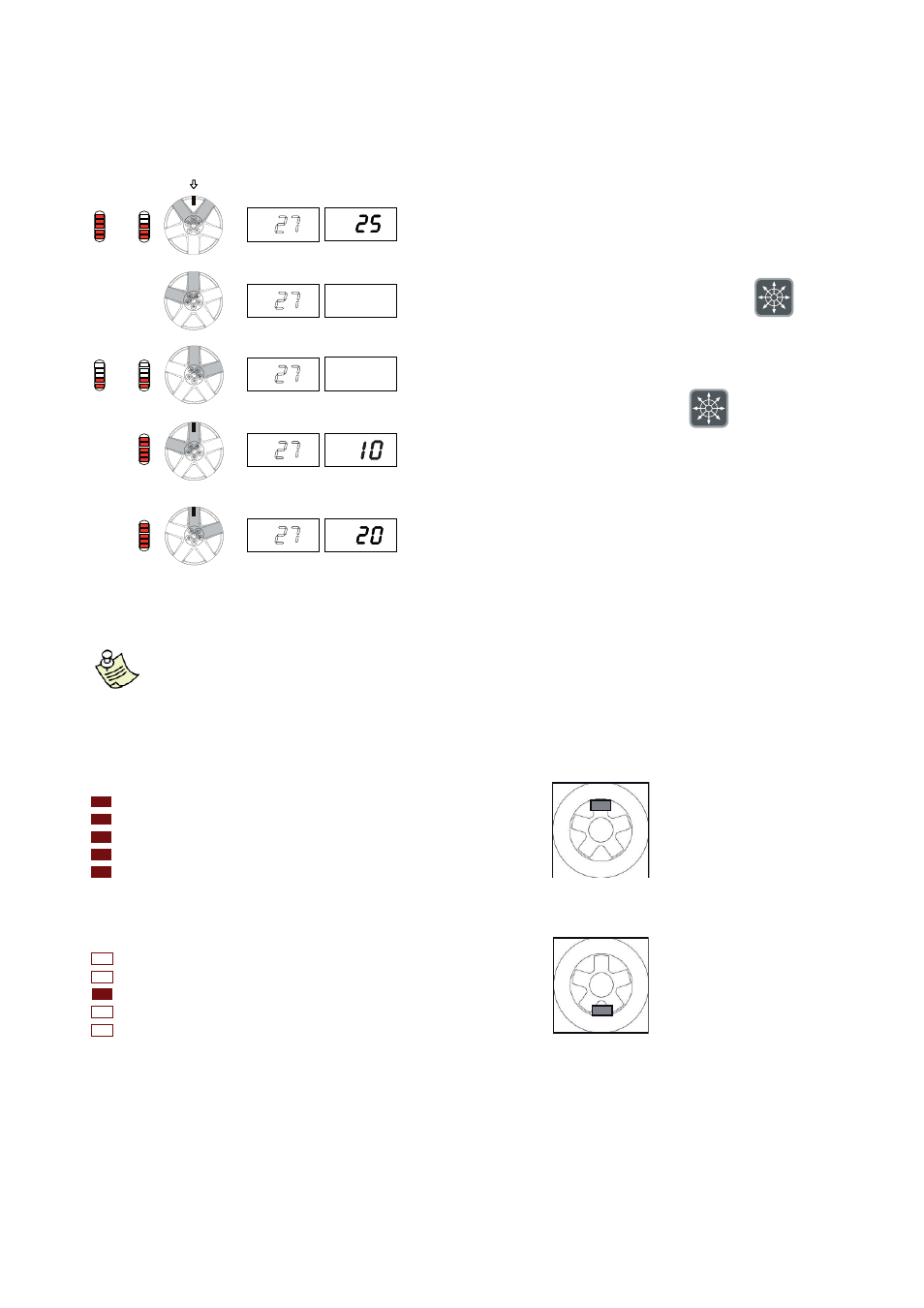

5.2.4 - SPLIT FUNCTION (HIDDE ► N ADHESIVE WEIGHTS)
The SPLIT function is used to position the adhesive weights behind the wheel spokes so that they are not visible.
This function should be used in ALU mode where the adhesive weight is applied on the outside. Input the wheel
dimensions and do a spin.
▪ Turn the wheel to the outside unbalance correction position
as indicated by the machine
▪ Position one spoke at 12 o'clock (e.g. 1) and press
▪ Following the rotation direction indicated on the display,
position spoke 2 at 12 o'clock and press
▪ Position the wheel as indicated by the LEDs.
The unbalance is indicated on the right-hand display
▪ Repeat the operation for the other spoke
To return to normal unbalance display, press any button.
NOTE: The distance between the spokes must be at least 18° and at most 120° (if not, the errors 24,25
or 26 appear).Spokes with irregular or inconstant angles can be compensated.
5.2.5 ► - OPPOSITE POSITION
The normal balancing condition requires the correction weight to be applied at the top (12 o’clock) when the symbol
is displayed:
Apply the correction weight at the top (12 o’clock)
If OPPOSITE POSITION is enabled, the eventual application position for the bottom weight is also indicated next to
the positioning arrows to facilitate cleaning the rim and the relative application of adhesive weights. The symbol used
is:
Apply the correction weight at the bottom (6 o’clock)
