6 - SET-UP
6.1 - Autodiagnostics
Performs tests useful for maintenance staff.
6.2 - Autocalibration

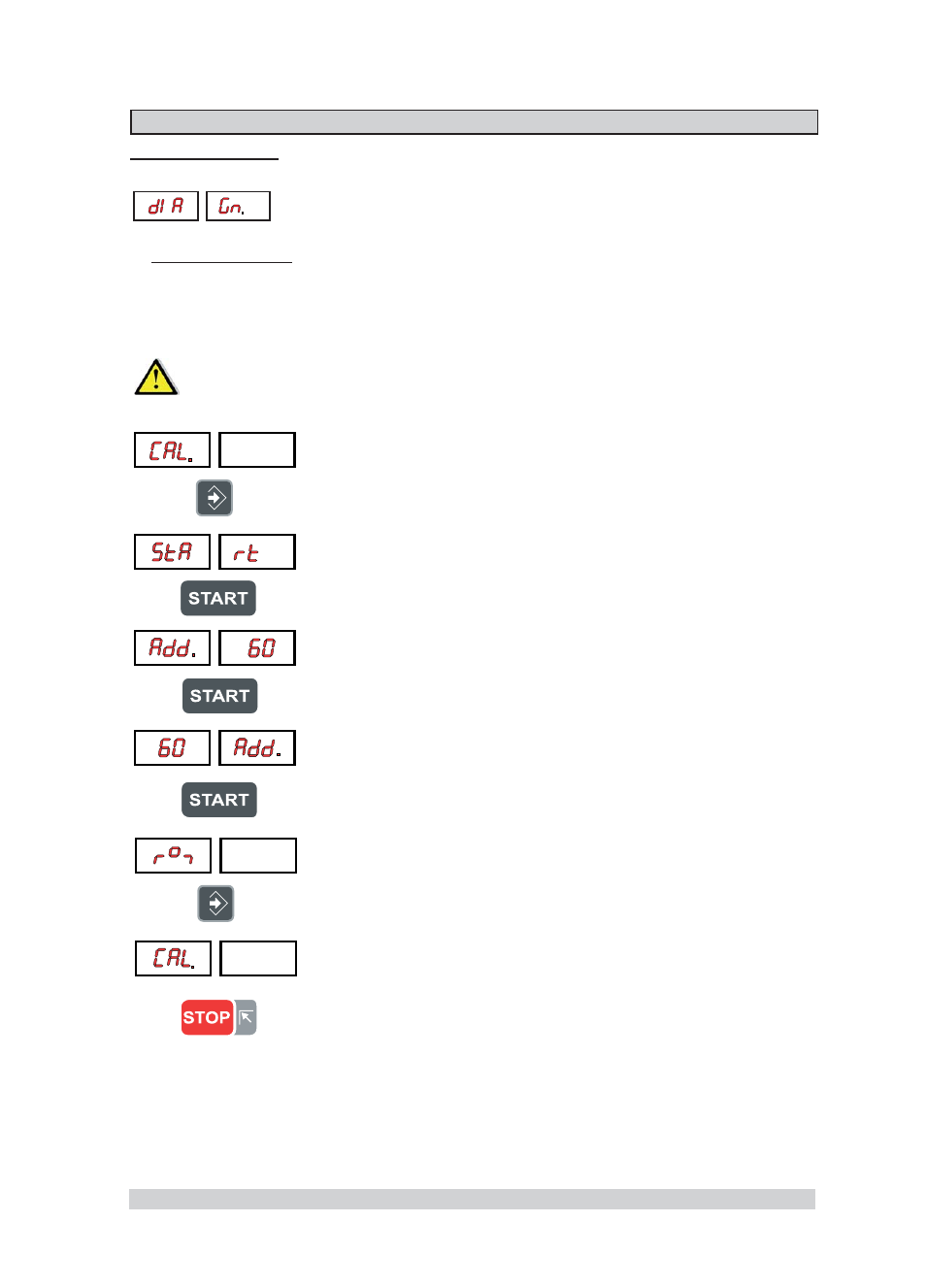

For autocalibration proceed as follows:
Fit a wheel with steel rim of average dimensions on the shaft. Example 6” x 14” (± 1”)
Set the exact dimensions of the wheel mounted.
S ETTING INCORRECT DIMENSIONS WILL RESULT IN THE MACHINE NOT BEING PROPERLY CALIBRATED AND HENCE ALL THE
SUBSEQUENT MEASUREMENTS WILL BE INCORRECT UNTIL A NEW AUTOCALIBRATION IS PERFORMED WITH THE CORRECT
DIMENSIONS !!
►
1.
2.
- Perform a spin under normal conditions.
- Add a 60 g. sample weight (2.00 oz) on the outside in any angular
position.
- Shift the sample weight from the outside to the inside keeping the
same angular position.
- Turn the wheel until the sample weight is in the 12 o’clock position.
END OF AUTOCALIBRATION
CANCEL AUTOCALIBRATION IN ANY PHASE.
