I 0184 - 9 GB

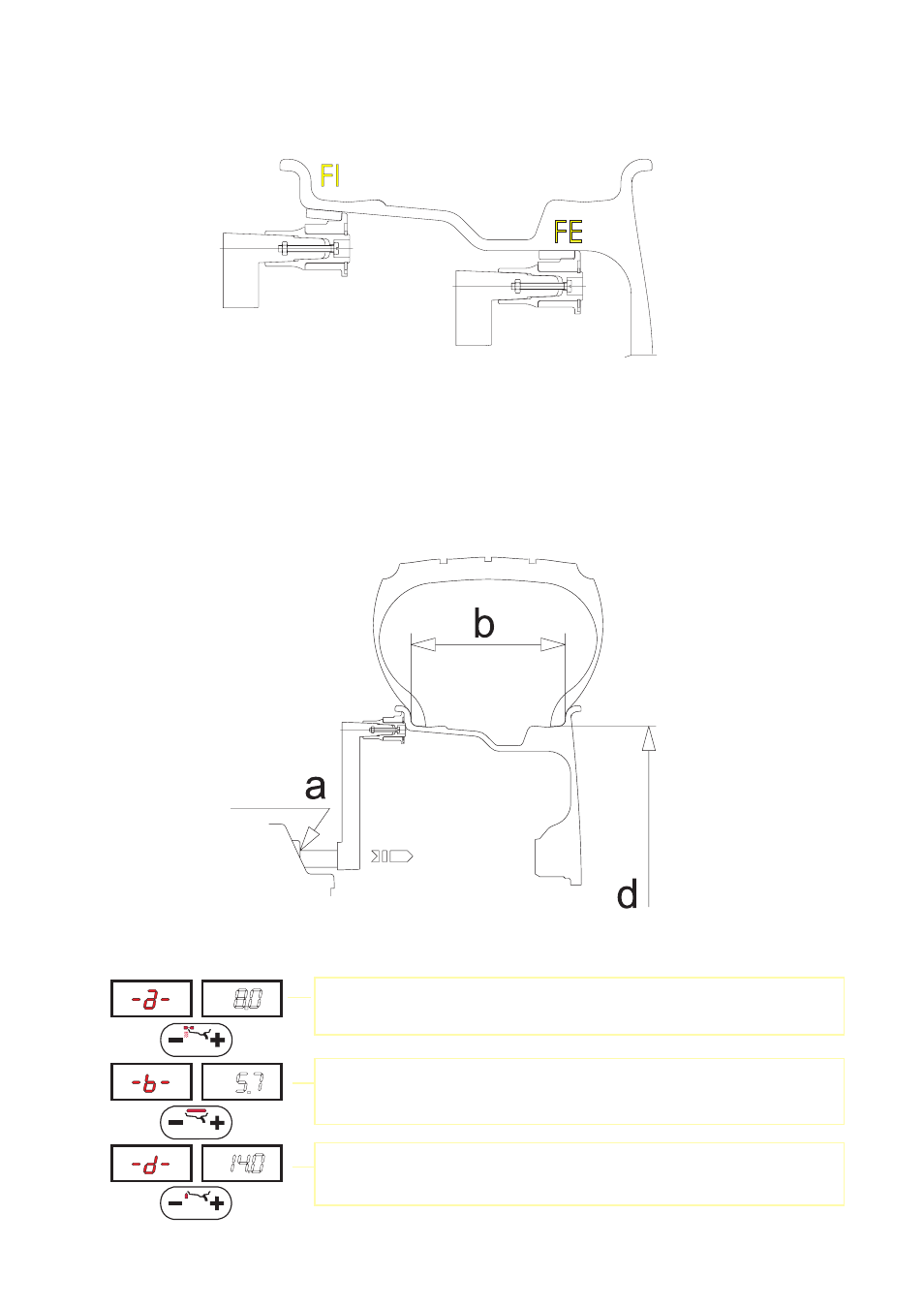

- Wheel ALU-S (correction from inside for two balancing planes with direct calibration):
Fig. 7
After measurement for inside FI as shown in fi g. 7, again remove the gauge in order to memorize the
data for the outside FE; keep this position for at least 2 seconds. Measurement can be performed in the
position as per Fig. 5/Pos.A or in the position as per Fig . 5/Pos.B.
Manual setting is possible as described below.
5.2.2 - MANUAL PRESETTING ( C61 )
- Standard wheels
Fig. 8
- Preset distance “a” of the inside of the wheel from the machine.
- Set the rated width, which is generally indicated on the rim, or measure
width “b” using the compass gauge supplied.
- Preset the nominal diameter “d” indicated on the tyre.
