cm

Fig.A

Fig.B

I 0184 - 10

GB

- Wheel ALU-S

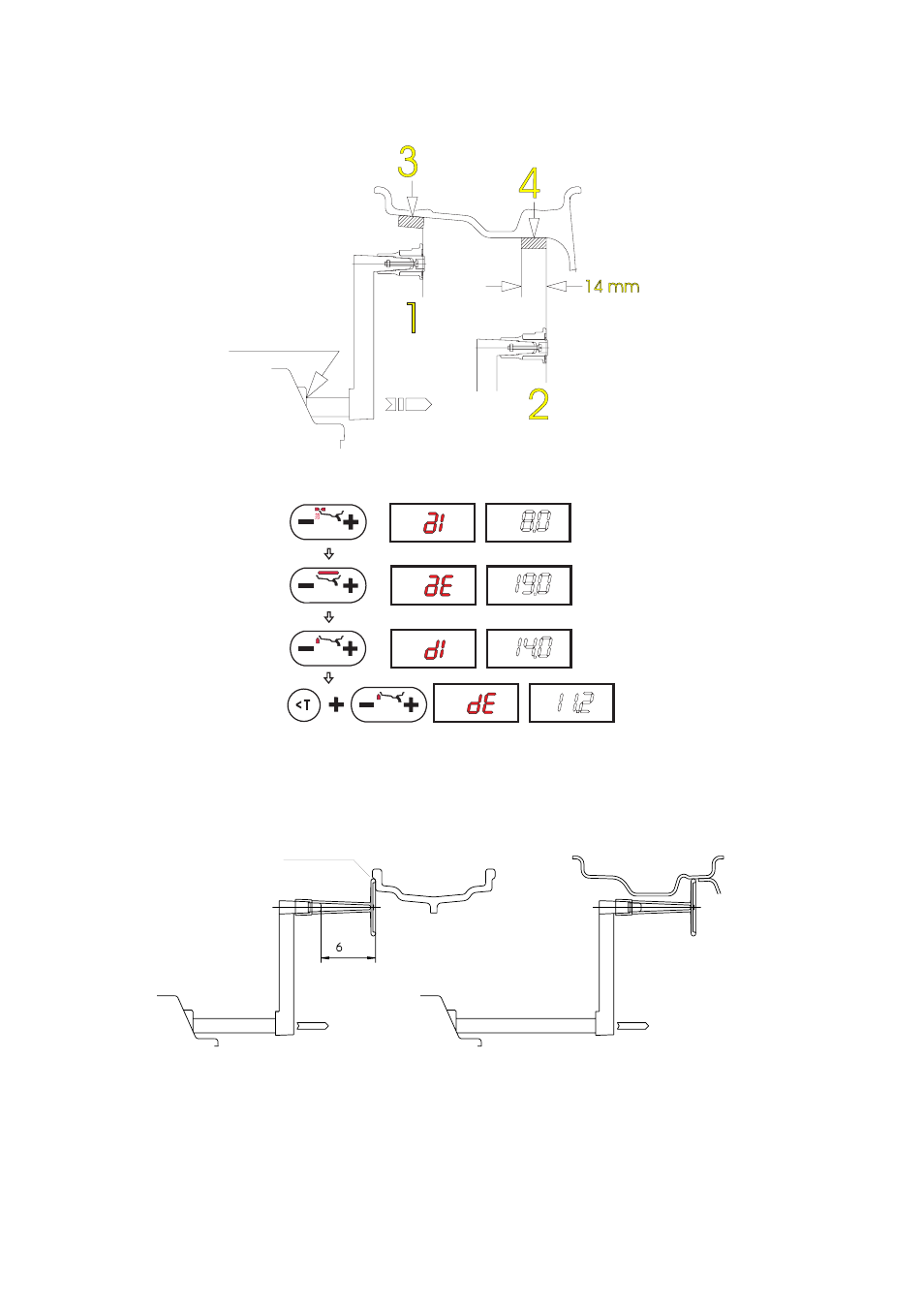

- Measure the dimensions as shown in the following diagram.

Fig.

9

PRESETTING:

Note: when dE is not set, dE = 0.8 dI is automatic

5.2.3 - SETTING WITH GAUGE EXTENSION ( OPTIONAL C61 )

The extension increases the by 6 cm the gauge distance measurement fi eld (Fig. A) and allows distance
measurement even when the rim has a special profi le (Fig . B).
Proceed as indicated below:
- fi t the extension on the distance gauge
- Measure the distance as already described.
- Read value “a” on the dial and then reset the gauge to “0” and set by hand the value “a + 6”
- Manually set the diameter and the width.

Extension +6

0 Gauge
