6.3 - AUTOMATIC GAUGES ( C 61 Z )

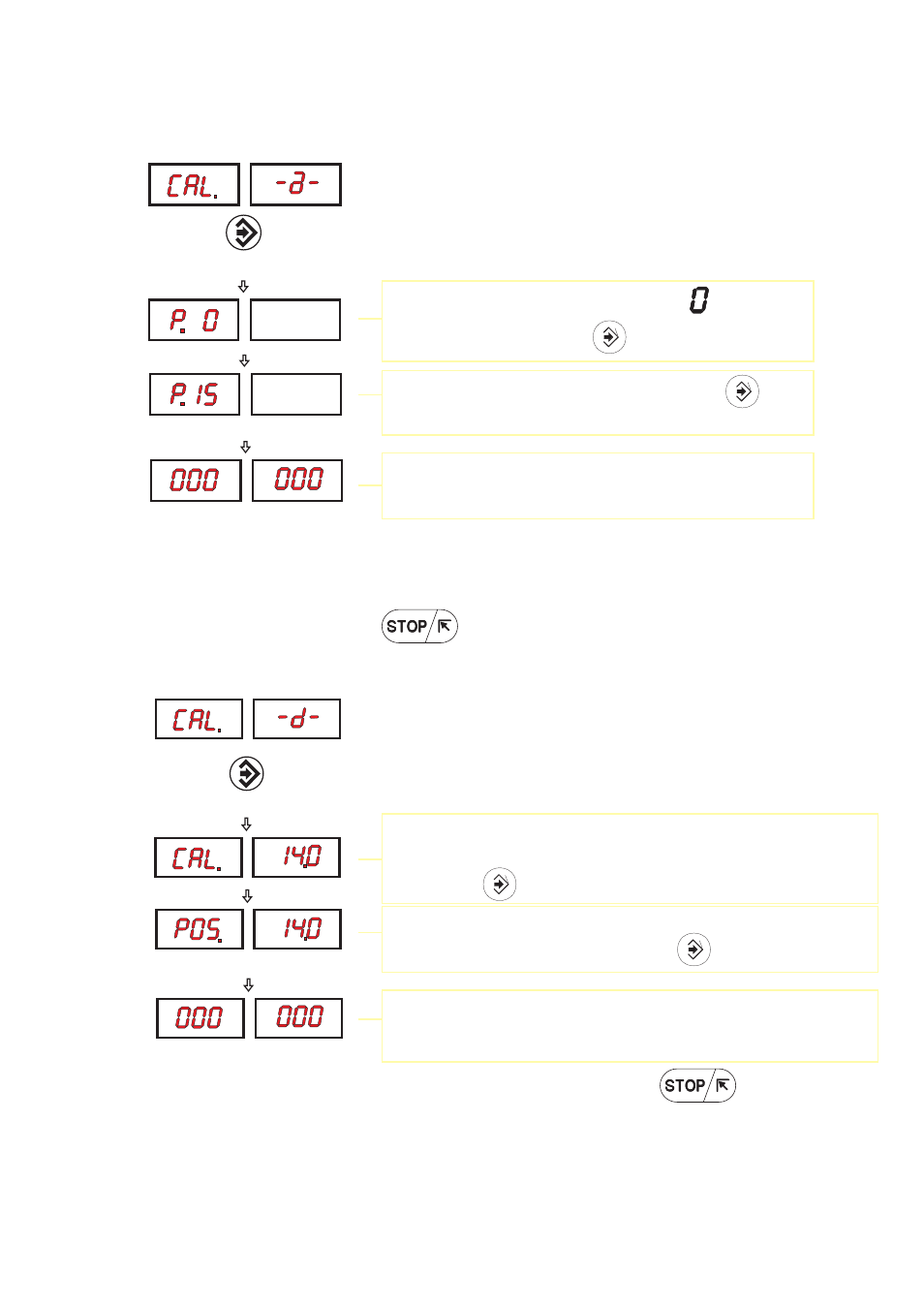

6.3.1 - DISTANCE GAUGE
- Place the distance gauge in position and,
holding it fi rmly, press
- Move the gauge to position
15
and press
CORRECT CALIBRATION
- Return the gauge to rest position
- The wheel balancer is ready for operation
Note: In the event of errors or faulty operation, this wording appears on the display
“CaL.” “P.O.”
: shift
the gauge to position 0 and repeat the calibration operation exactly as described above. If the error
persists, contact the Technical Service Department. In the event of incorrect input in the rim distance
gauge calibration function, press to cancel it.
6.3.2 - DIAMETER GAUGE
- Currently preset diameter
- Set the required machine calibration value (10 ÷ 18”)
- Press
- Place the gauge tip in the measurement position (Fig.5/
Pos.A)and, holding it down, press
CORRECT CALIBRATION
- Return the gauge to rest position
- The wheel balancer is ready for operation
In the event of incorrect input in the rim diameter gauge calibration function, press to cancel it.
