Machine description
2.1 PURPOSE
It is used to balance the wheels of cars, vans, 4-WD, mo-
torcycles and scooters. The wheels must weigh less than
75 kg. and, when fitted on the balancing machine, must
not interfere with any fixed part of the machine, excluding
the shaft and support adaptor. It can be operated in the
temperature range of 0° to + 45°C.
The machine is supplied with equipment enabling the
vast majority of car wheels available on the market to be
fitted. Other wheels with special dimensions, geometry
and centring require special adaptors supplied on request.
The machine can oper
ate only on flat non resilient floor.
To lift the machine, lever only on the base where the 3
support points are located. never, under any circustance,
apply force to other points such as the spindle, head, or
accessory shelf. It functions properly without having to
fasten it to the floor with wheels weighing up to 35 kg; for
heavier wheels, fasten it at the points indicated. Do not
mount anything other than motorbike, car or truck tyres
on the wheel balancer.
Thanks to the new and exclusive VDD (Virtual Direct Drive)
system, reliable unbalance measurements can be made
in a short time, almost half the time of the cycle used with
respect to other balancers in this range.
The main features include:
▪ machine settings menu.
▪ adhesive weight positioning laser
▪ rim interior light
▪ wheel locking
▪ static programme, ALUS; SPLIT; Unbalance optimiza-
tion; indication of exact correction weight position; Self
diagnostics; Calibration.
▪ automatic minimisation of static unbalance
2.2 TECHNICAL SPECIFICATIONS
The following data refers to the balancer in its standard
configuration.
Single-phase power supply 115 / 230 V 50/60 Hz
Protection class IP 54
Max.power consumption 0,15 Kw
Balancing speed 100 min -1
Cycle time for wheel 4.7 sec. (5 3/4”x14”) 15 Kg.
Measurement uncertainty 1 g
Average noise < 70 dB (A)
Rim width setting range 1.5” ÷ 20” or 40 ÷ 510 mm
Diameter setting range 10” ÷ 30” or 265 ÷ 765 mm
Maximum wheel weight < 75 Kg.
Machine weight 110 Kg.
2.3 DIMENSIONS

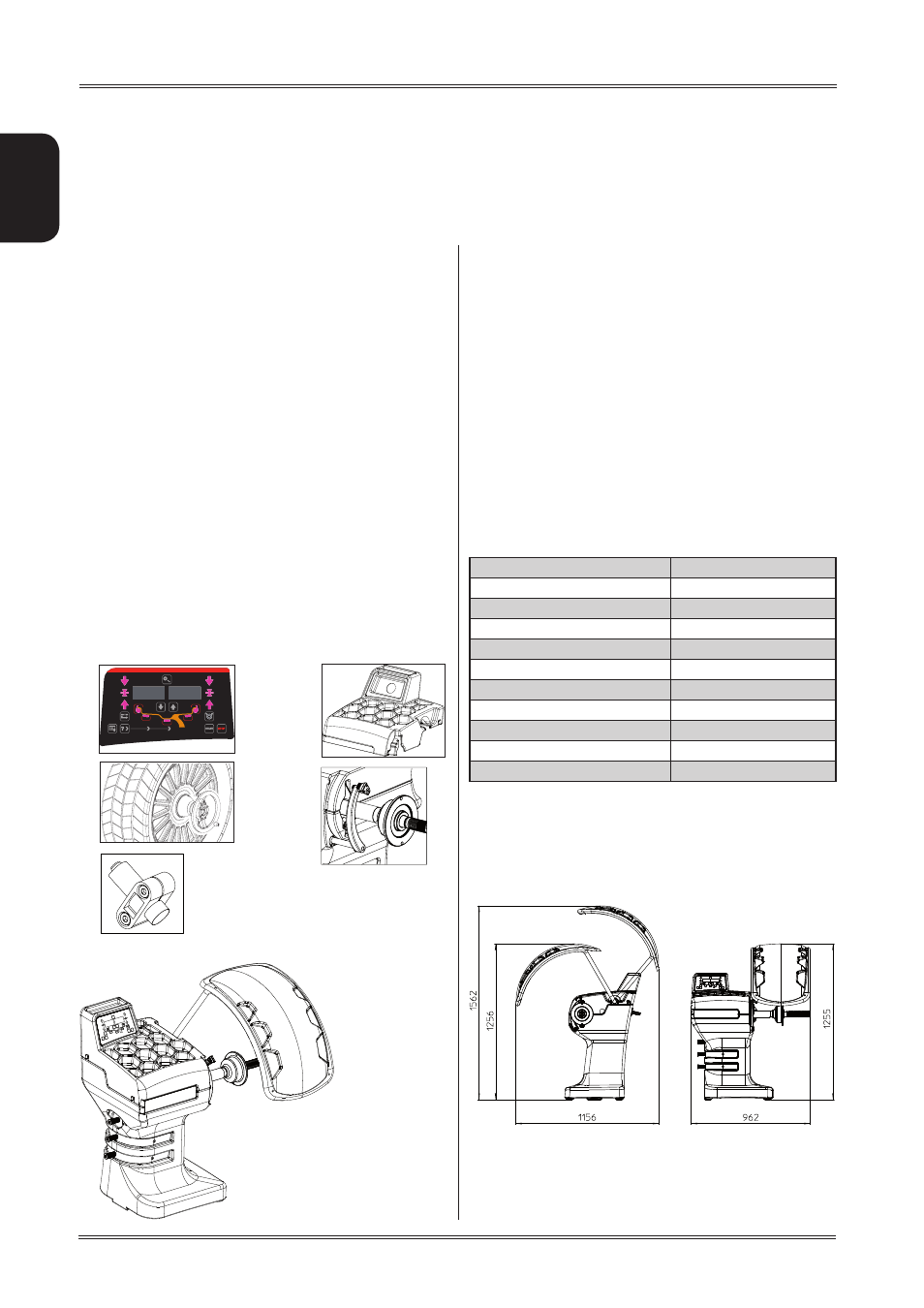

2. Machine description
1. CONTROL PANEL
2. WEIGHT-TOOL HOLDER
3. LOCK NUT
4. AUTOMATIC GAUGE
5. WHEEL POSITIONING LASER
