www.airkinglimited.com 984856 Rev A. 7-05 2 of 4
INSTALLATION INSTRUCTIONS
CAUTION:
MAKE SURE POWER IS SWITCHED OFF AT
SERVICE PANEL BEFORE STARTING INSTALLATION.
SECTION 1
Installation Requirements
1. Electrical Requirements: This unit requires a grounded electrical
supply line of 120 volts AC, 60 Hz, 15 amp circuit.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR PERSONAL INJURY, PROPERLY INSTALL TO AN OUTLET BOX
MARKED “ACCEPTABLE FOR FAN SUPPORT”. USE SCREWS
PROVIDED WITH OUTLET BOX. MOST OUTLET BOXES COMMONLY
USED FOR THE SUPPORT OF LIGHTING FIXTURES ARE NOT
ACCEPTABLE FOR FAN SUPPORT AND MAY NEED TO BE REPLACED.
CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
2. Electrical Box: This unit will fit any of the following electrical
boxes: 4" octagon box, 3" octagon box, 1/2" deep ceiling pan, or
a plaster ring with 3-1/2" mounting hole centers mounted on one
of the above listed boxes. This fan will also install on a “Wiremold”
No. 5738 fixture box. The electrical box must be securely anchored
and capable of withstanding a load of at least 35 pounds.
CAUTION:
IF ONE OF THE ABOVE ELECTRICAL BOXES IS
NOT PRESENT FOR PROPER INSTALLATION, CONTACT A LICENSED
ELECTRICIAN.
SECTION 2
Preparing the Ceiling Fan
1. Unpack fan from the carton and confirm that all pieces are
present. The following should be present:
2. Install J-Hook Bracket to an
electrical box marked
“Acceptable For Fan Support”
using the screws provided with
the outlet box. Insert the
screws through the slotted
holes in the bracket and attach
to the electrical box. Tighten
both screws (Figure 1).
CAUTION:
IF BRACKET
AND/OR ELECTRICAL BOX ARE
NOT SECURELY ATTACHED, THE
FAN COULD WOBBLE.

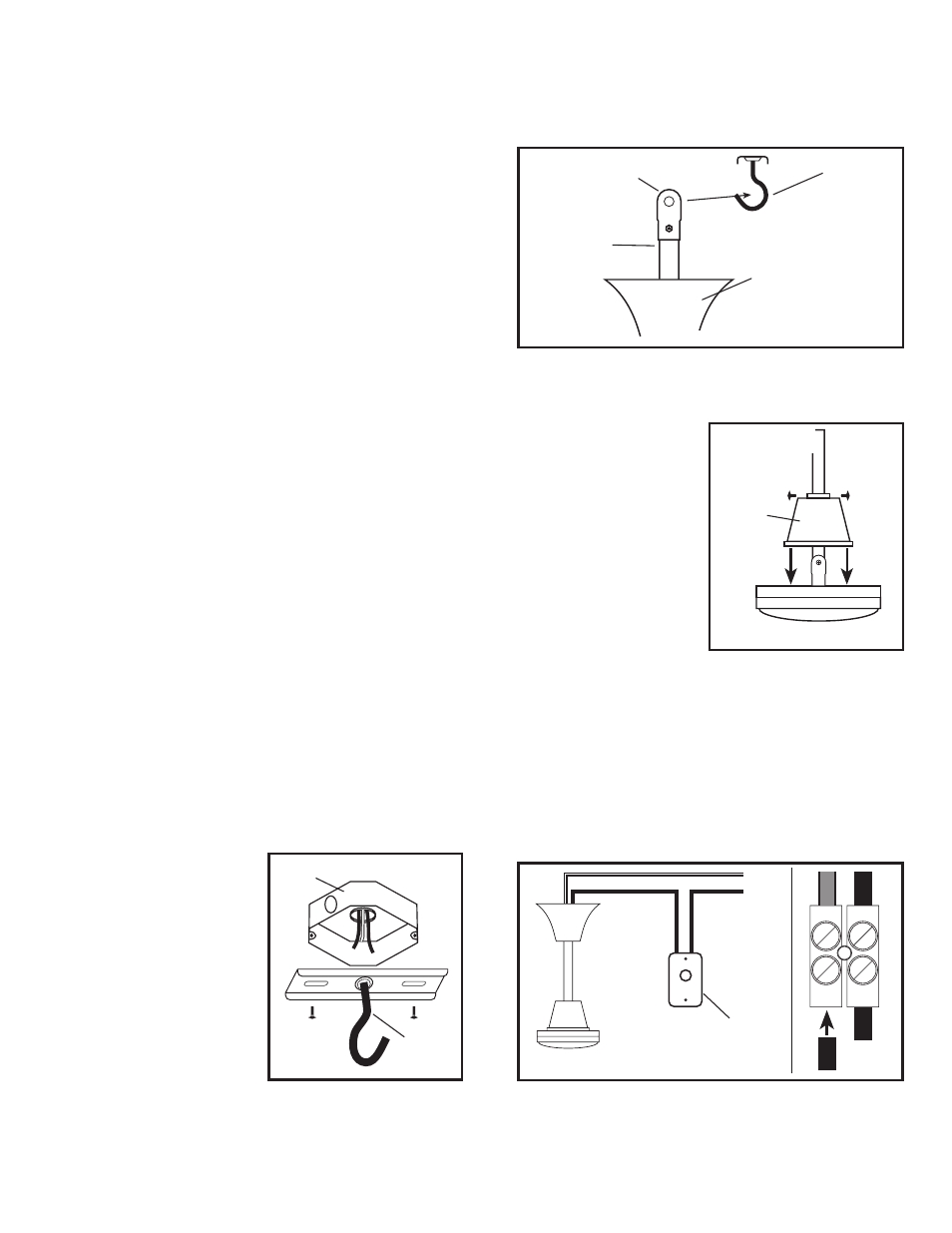

Figure 1
Screw
Electrical Box
J-Hook
Bracket
SECTION 3
Mounting the Fan
2. Carefully lift the fan and hang on the J-Hook, ensuring that all
wires are clear of the rubber roller (Figure 2).
WARNING:
FAILURE TO SEAT DOWNROD ASSEMBLY ON
J-HOOK BRACKET COULD CAUSE DAMAGE TO ELECTRICAL WIRES
AND CAUSE FAN TO FALL.
CAUTION: DO NOT PINCH
WIRES BETWEEN THE J-HOOK
AND DOWNROD ASSEMBLY.
2. Slide lower canopy down the
downrod until it is snug
against the motor housing.
Tighten both set screws
(Figure 3).
SECTION 4
Wiring
CAUTION:
ALL ELECTRICAL CONNECTIONS MUST BE MADE
IN ACCORDANCE WITH LOCAL CODES, ORDINANCES, OR NATIONAL
ELECTRICAL CODE. IF YOU ARE UNFAMILIAR WITH METHODS OF
INSTALLING ELECTRICAL WIRING, SECURE THE SERVICES OF A
QUALIFIED ELECTRICIAN.
1. Unscrew the speed control cover and screw base to wall.
2. Connect the Black (Hot) supply wire into socket marked “A”.
Connect the Black lead wire from the fan into socket marked
“F” and tighten screws (Figure 4).
Figure 2
J-Hook Bracket
Downrod
Figure 4
F A
Rubber Roller
Upper Canopy
NOTE: Wires omitted from figure for clarity
NOTE: Wires omitted
from figure for clarity
Figure 3
Screw
Lower
Canopy
Wall Control
1 - Motor assembly 1 - Package containing:
1 - Lower canopy 4 - Flat washers
1 - Upper canopy 2 - 8/32" screws
6 - Blade lock washers 2 - #8 lock washers
6 - Blade screws 2 - #10 lock washers
1 - Downrod assembly 3 - Wire nuts
1 - J-hook bracket 2 - Wood screws
1 - Wall control 1 - Instruction/Safety Sheet
3 - Blades
