Phoenix-Award BIOS Utility

47

PC817 User’

2

s Manual

¤

Parallel Port Mode

Select an operating mode for the onboard parallel (printer)
port. Select Normal unless your hardware and software
require one of the other modes offered in this field. The
options available are EPP1.9, ECP, SPP, ECPEPP1.7,
EPP1.7.

¤

ECP Mode Use DMA

Select a DMA channel for the parallel port for use during
ECP mode.

¤

PWRON After PWR-Fail

This item enables your computer to automatically restart or
return to its operating status.

Press to return to the Integrated Peripherals page.

a

Onboard Lan1/Lan2 Boot ROM

Use this item to enable or disable the Boot ROM function of the
onboard LAN1/LAN2 chips when the system boots up.

a

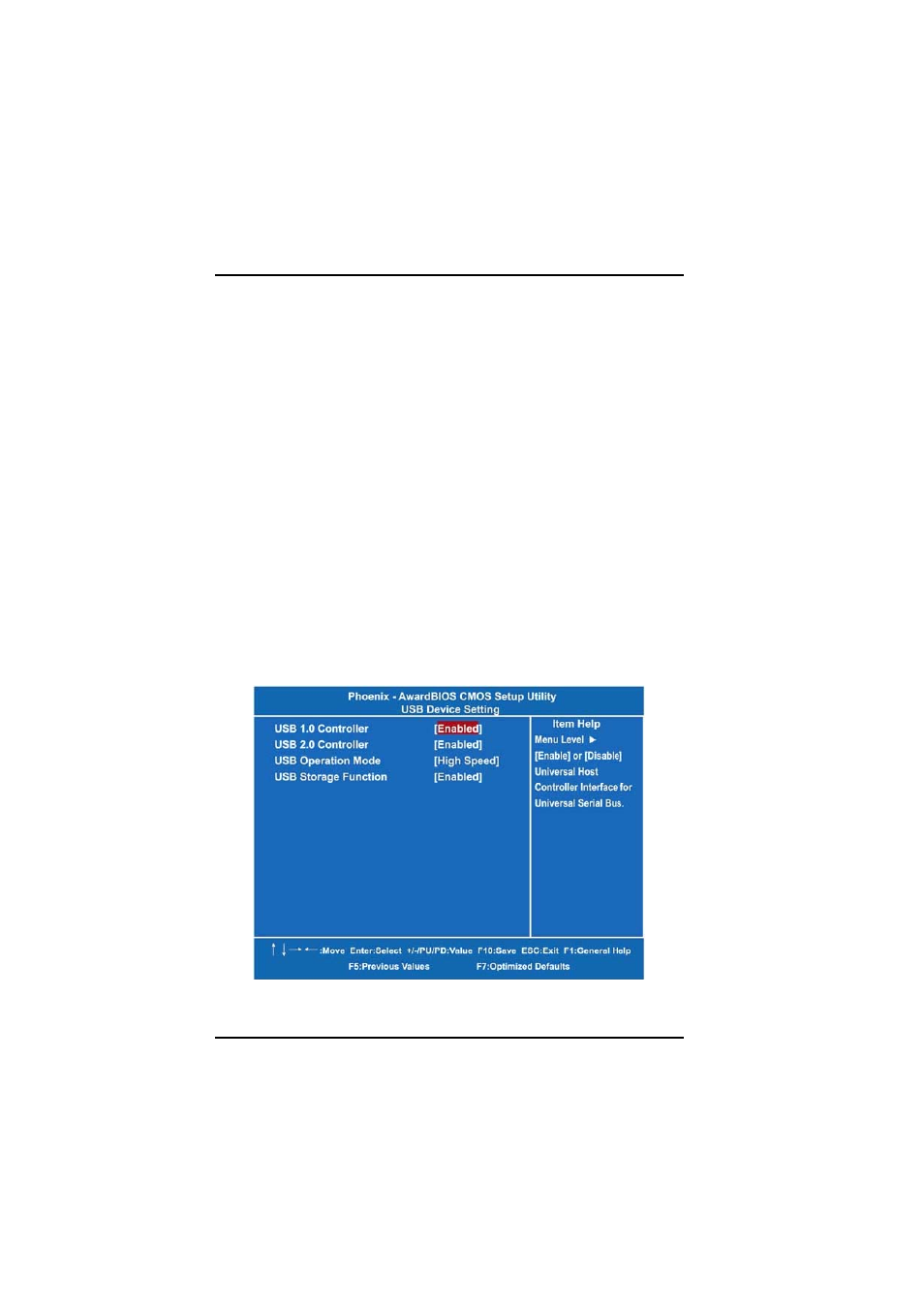

USB Device Setting

Scroll to this item and press to view the sub menu USB
Device Setting. USB (CN16) is not working when USB2.0 Controller
is disabled.

Press twice to return to the Main Menu page.
