PC 8172 User’s Manual

16

Hardware Installation

Step 4

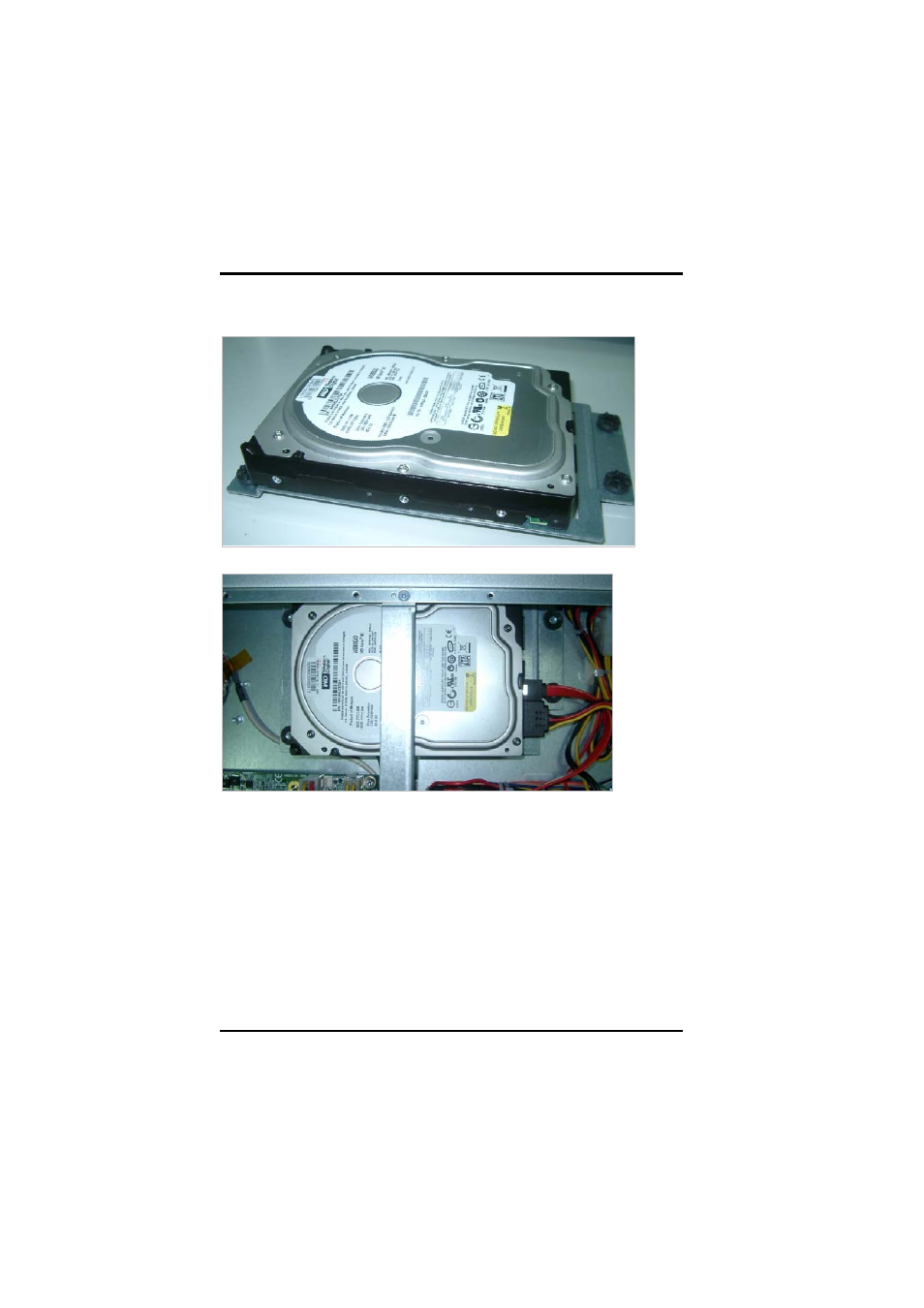

Fix the Hard Disk to the HDD bracket and connect the cable

to complete the installation.














(4-1)













(4-2)

¤

Installing Dual 3.5” HDD

If installing the dual 3.5” HDD, please follow the steps:
Step 1

Change HDD bracket from 3.5” to dual 3.5”.
