46

Phoenix-Award BIOS Utility

PC 8172 User’s Manual

a

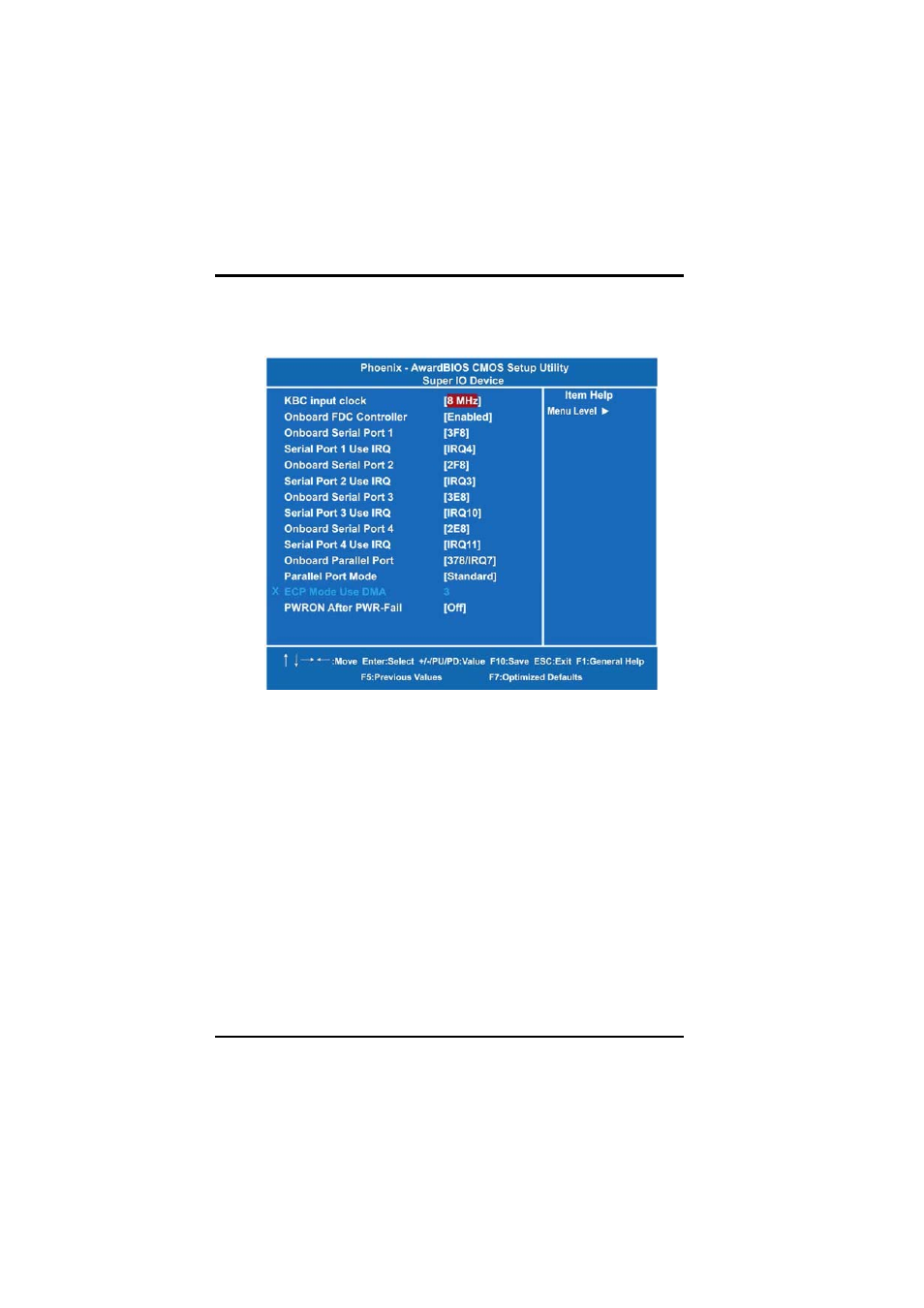

Super IO Device

Scroll to this item and press to view the sub menu Super
IO Device.






















¤

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller
(FDC) installed on the system board and you wish to use it.
If you install and-in FDC or the system has no floppy drive,
select Disabled in this field. The options available are
Enabled, Disabled.

¤

Onboard Serial Port 1/2/3/4

Select an address and corresponding interrupt for the serial
port. Options: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3,
Disabled, Auto.

¤

Serial Port 1/2/3/4 Use IRQ

These items assign which I/O address to access onboard
serial port 1/2/3/4.

¤

Onboard Paralellel Port

This item allows you to determine access onboard parallel
port controller with which I/O address. The options available
are 378H/IRQ7, 278H/IRQ5, 3BC/IRQ7, Disabled. The 3BC
option does not support any EPP modes.
