Dialight D264-A54-001 Vigilant L864 Based Red Beacon User Manual
Page 8

Document No.
9100-127-1556-99 Rev A
October 19, 2011
_____________________________________________________________________
_____________________________________________________________________________
Dialight Corporation 1501 Route 34 South Farmingdale NJ 07727
Tel: 732.919.3119 Fax:732.751.5778 Web: www.dialight.com
Sheet 8 of 13
Repair and Replacement
Refer to Table 1 for troubleshooting procedures.

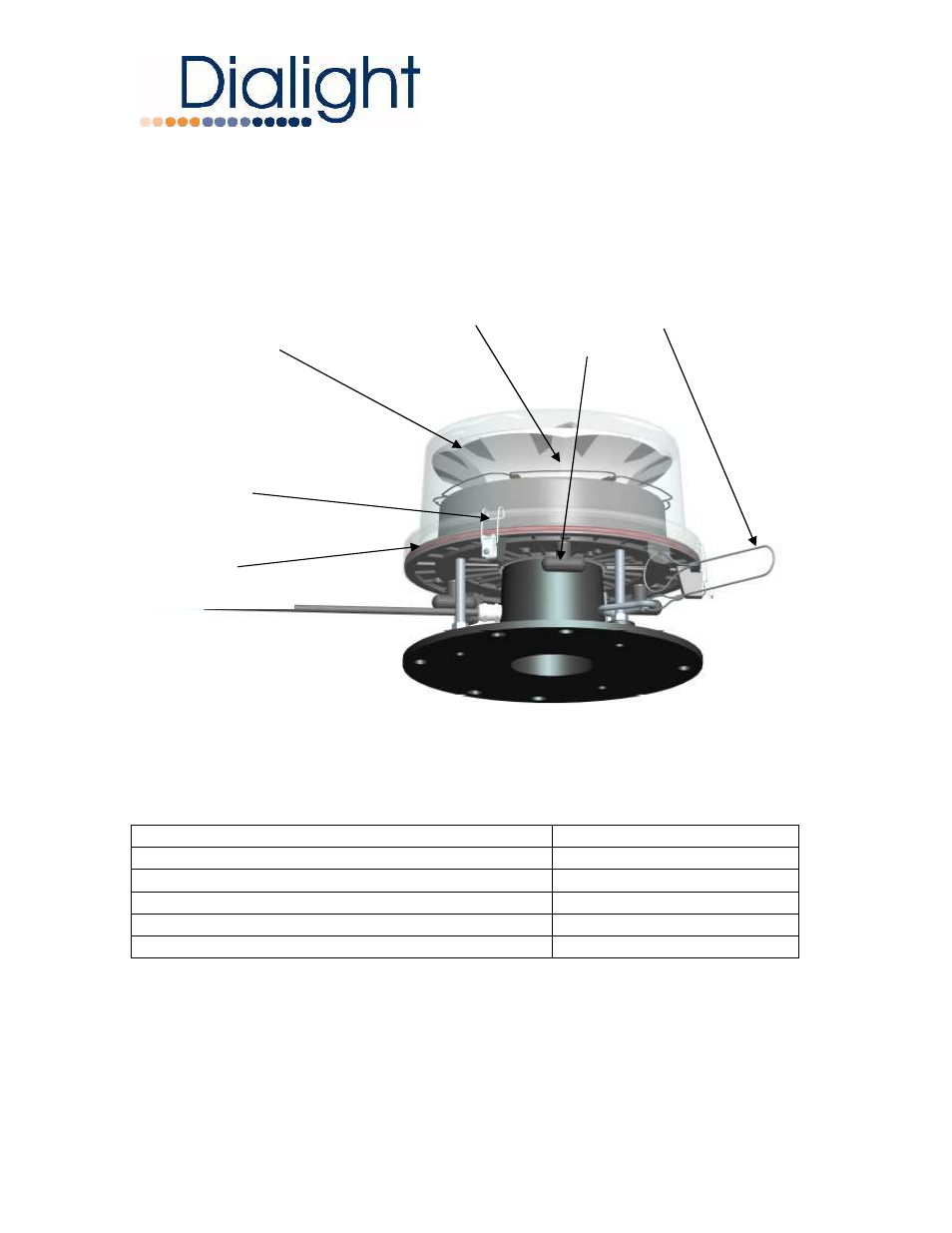

Figure 5 Beacon– External View
Recommended spare parts, User replaceable parts
Description
Dialight Part Number
Beacon LED Module
D264-1016
Dome Assembly
D264-2005
O-Ring Gasket
D264-8001
Power Supply, 48 VDC
D264-9004
The only parts that are serviceable on the Beacon are the LED module and power supply.
The troubleshooting and replacement procedure for the LED Module is as follows.
Knob
Latch
Dome Assembly
D264-2005
Safety
Lanyard
LED Module
D264-1016
(Beacon LED Module)
O-Ring Gasket
D264-8001
(Under Dome Edge)
