ATEX/IECEx LED LINEAR LUMINAIRE
INSTALLATION MANUAL
9100-127-1715-00 Rev A
October 2013
Dialight – LED Solutions for Industrial and Hazardous Applications
Tel: 732-919-3119 – Fax: 732-751-5778 – www.dialight.com
Page 3 of 6

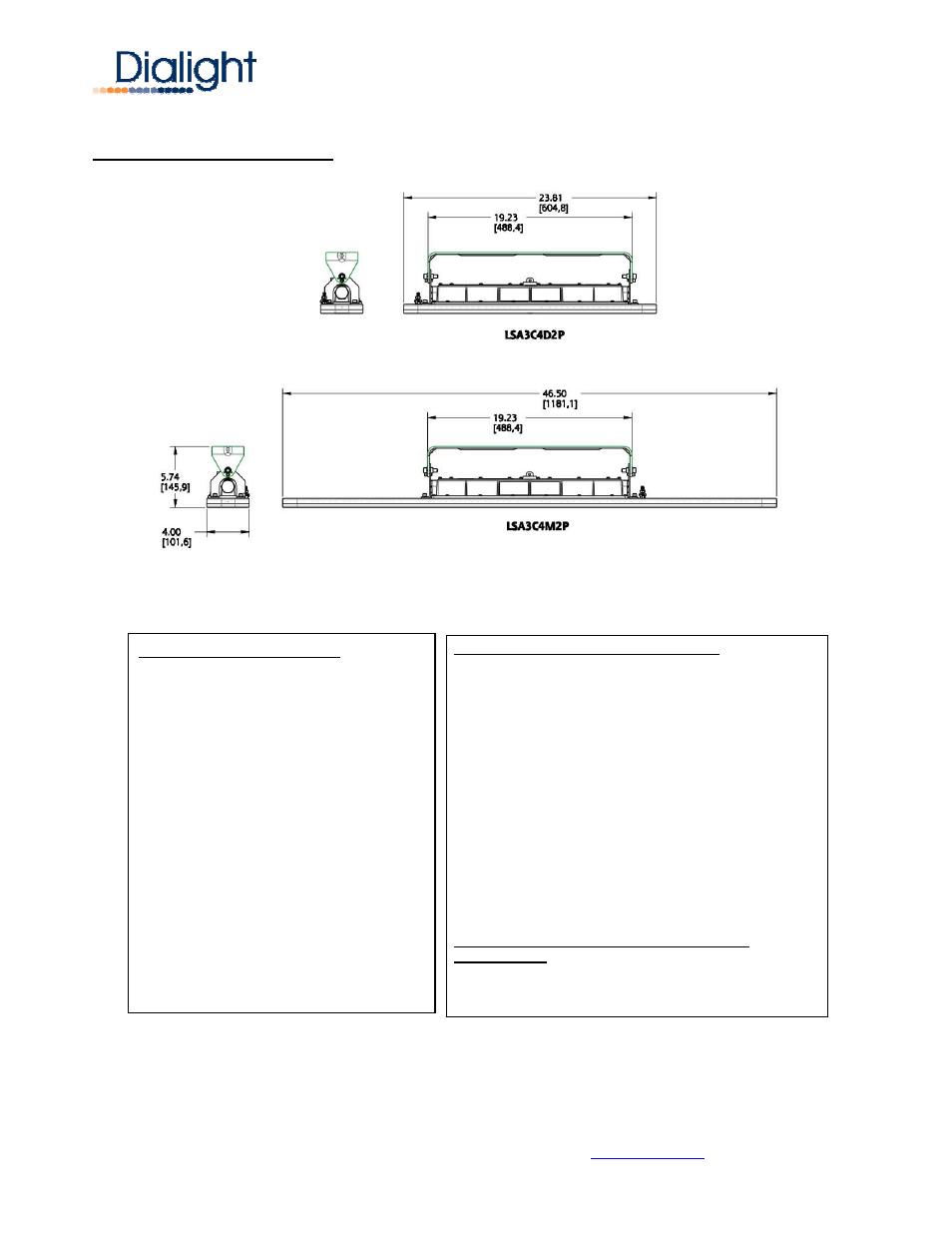

MECHANICAL DIMENSIONS:
ATEX/IECEx Certifications
Zone 1&21
Zone 2 &22
Ex d e mb IIB T4 Gb
Ex tb IIIC T135c Db IP66
Ex II 2 GD
Sira 12 ATEX1215
IECEx SIR 12.009
LED Enclosure rated for EXd
LED Driver Enclosure rated for Exe
LED Driver is rated for EXm
No alternate supplier materials can be
used with luminaire
Electrical Connections/Color Code
The terminal block is suitable for multi-stranded and
single core cables up to a maximum of 12gauge or
(4mm
2
) recommended strip length of .4 inches or
(10mm)
L1 = LIVE / BLACK
N = NEUTRAL / WHITE
E = GROUND / GREEN
Loop thru Electrical Connections:-
Connect incoming cable as above then connect the
outgoing cable to the associated adjoining connection to
pass to the next luminaire.
ONLY SINGLE CABLES TO BE USED ON EACH
CONNECTION.
