ATEX/IECEx LED LINEAR LUMINAIRE
INSTALLATION MANUAL
9100-127-1715-00 Rev A
October 2013
Dialight – LED Solutions for Industrial and Hazardous Applications
Tel: 732-919-3119 – Fax: 732-751-5778 – www.dialight.com
Page 2 of 6

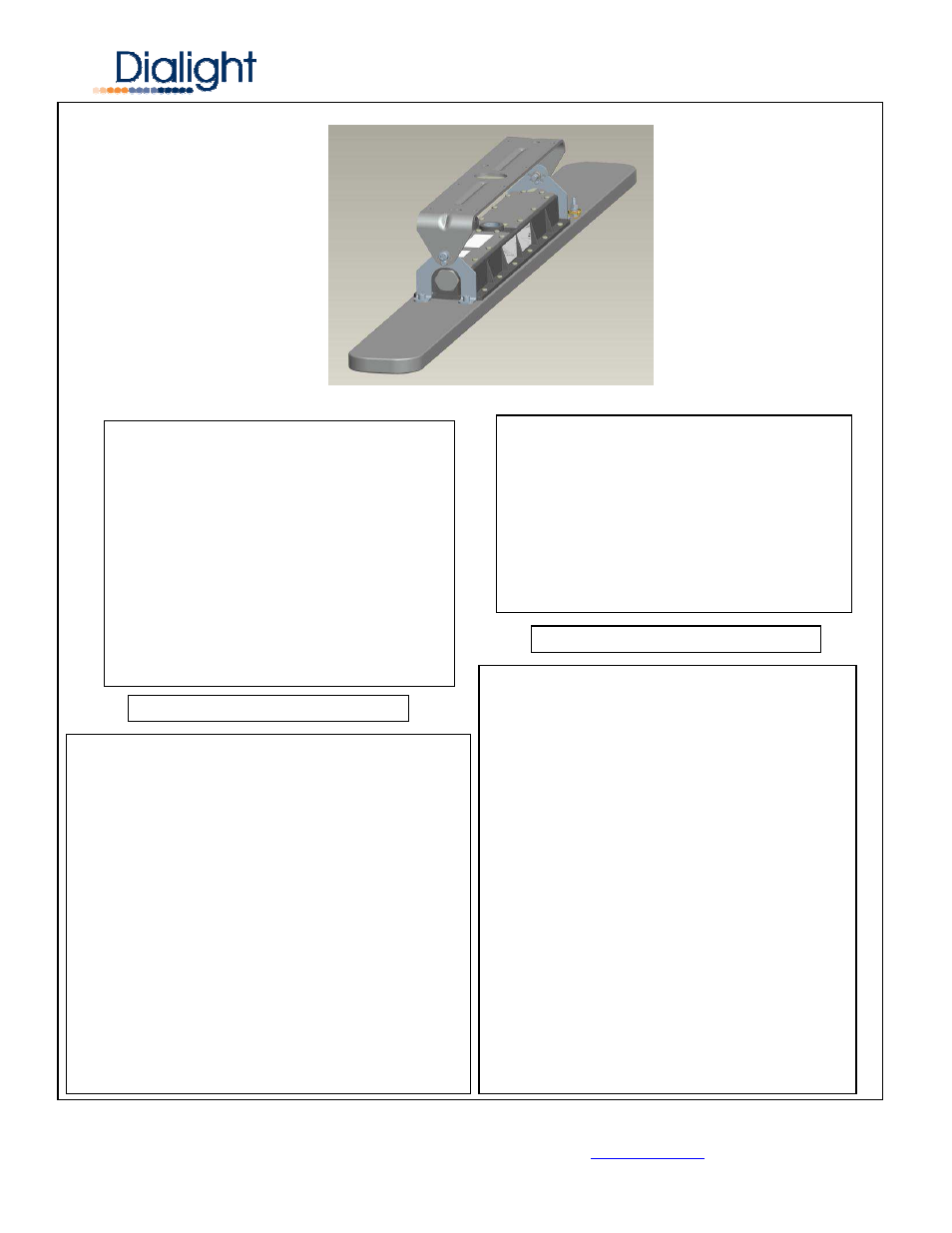

Contents Supplied with Luminaire:-
1 x LINEAR Luminaire
2 x Certified Blanking Plugs
1 x Dust Plug (used for shipping purpose only)
1 x Equi-potential Ground stud
1 X Mounting Bracket
Cable Glands MUST be approved to:
Ex e IIB Gb/Ex t IIIC Db minimum
NOTE: Certified Blanking Plugs must be
moved to unused ports.
Electrical Connection Requirements:
Terminal capacity
- 0.5 – 4mm
2
(solid, stranded or fine stranded) 18 -- 12AWG
Optional ferrule or crimp pin maximum cable size
2.5mm
2
Cable strip length - 10-11mm
.40-.45 inches
Rated Input Voltage: 100-277VAC
Absolute maximum: 90-305Vac
Rated Input Frequency: 50/60Hz
Rated Input Current: .37A @ 100Vac (.61m)
.14A @ 277Vac (1.22m)
Rated Input Current: .73A @ 100Vac (.61m)
.28A @ 277Vac (1.22m)
Rated Maximum Wattage: 37 Watts at 100V (.61m)
73 Watts at 100V (1.22m)
Power Factor: >.92
Athd: <18%
Operating Temp:
-20°C to +65°C
Storage Temp:
-20°C to +85°C
Ingress Protection: IP66
Housing Material: Copper free Aluminum
Housing Colour: Light Gray RAL: 7040
Dimensions:
See Figure.1
Lens Material: Clear Toughened Glass
Frosted Toughened Glass
Cable Entries:
3 OFF M25 Threaded Ports
Tightening Torques
See Table
Fixture Weight
19.6 lbs (4’), 12.9 lbs (2’)
Fixture Dimensions
See “Mechanical Dimensions”
NOTE: Only the covers located on the top side of the
fixture should be removed for installation
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
