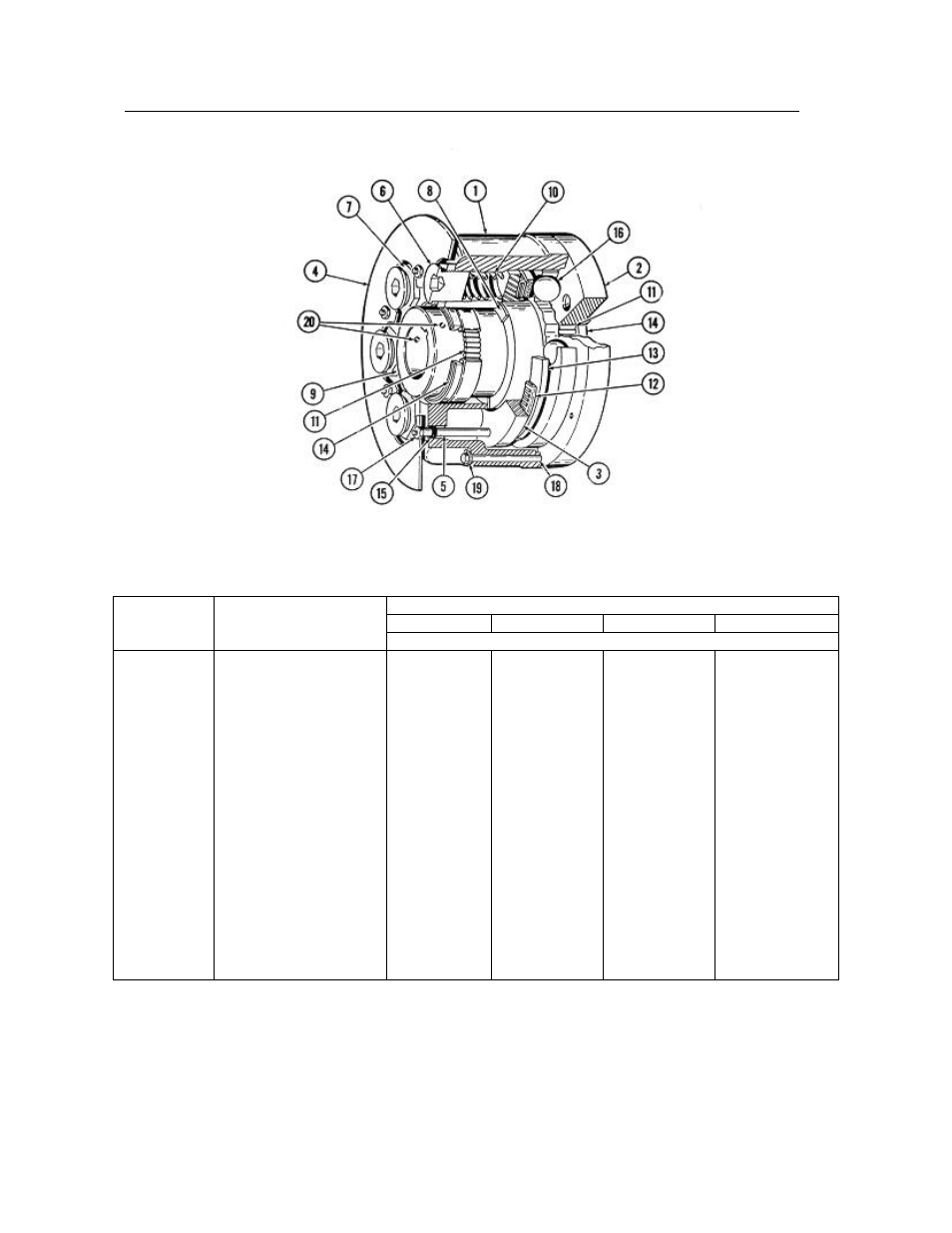

Location Map - RTL Series
FIGURE 2
Rite-Torq Number
5 20 60 120
Item No. Part Name Part Number
1 Housing Body 51 201 601 1201
2 End Plate 52 202 602 1202
3 Pressure Ring 53 203 603 1203
4 Actuator Plate 54 204 604 1204
5 Spacer Stud 55 205 605 1205
6 Torque Adj. Screw 56 206 606 1206
7 Locking Nut 57 207 607 1207
8 Thrust Washer 58 208 608 1208
9 Hub 59 209 609 1209
10 Spring 510 2010 6010 12010
11 Needle Bearing 511 2011 6011 12011
12 Thrust Bearing 512 2012 6012 12012
13 Thrust Race 513 2013 6013 12013
14 Oil Seal 514 2014 6014 12014
15 “O” Ring 515 2015 6015 12015
16 Ball 516 2016 6016 12016
17 Locknut 517 2017 6017 12017
18 Hex Head Bolt 518 2018 6018 12018
19 Lock Washer 519 2019 6019 12019
20 Set Screw 520 2020 6020 12020
CHART 1
