www.chenbro.com 7
ES34169 Chassis User’s Manual Rev. A1

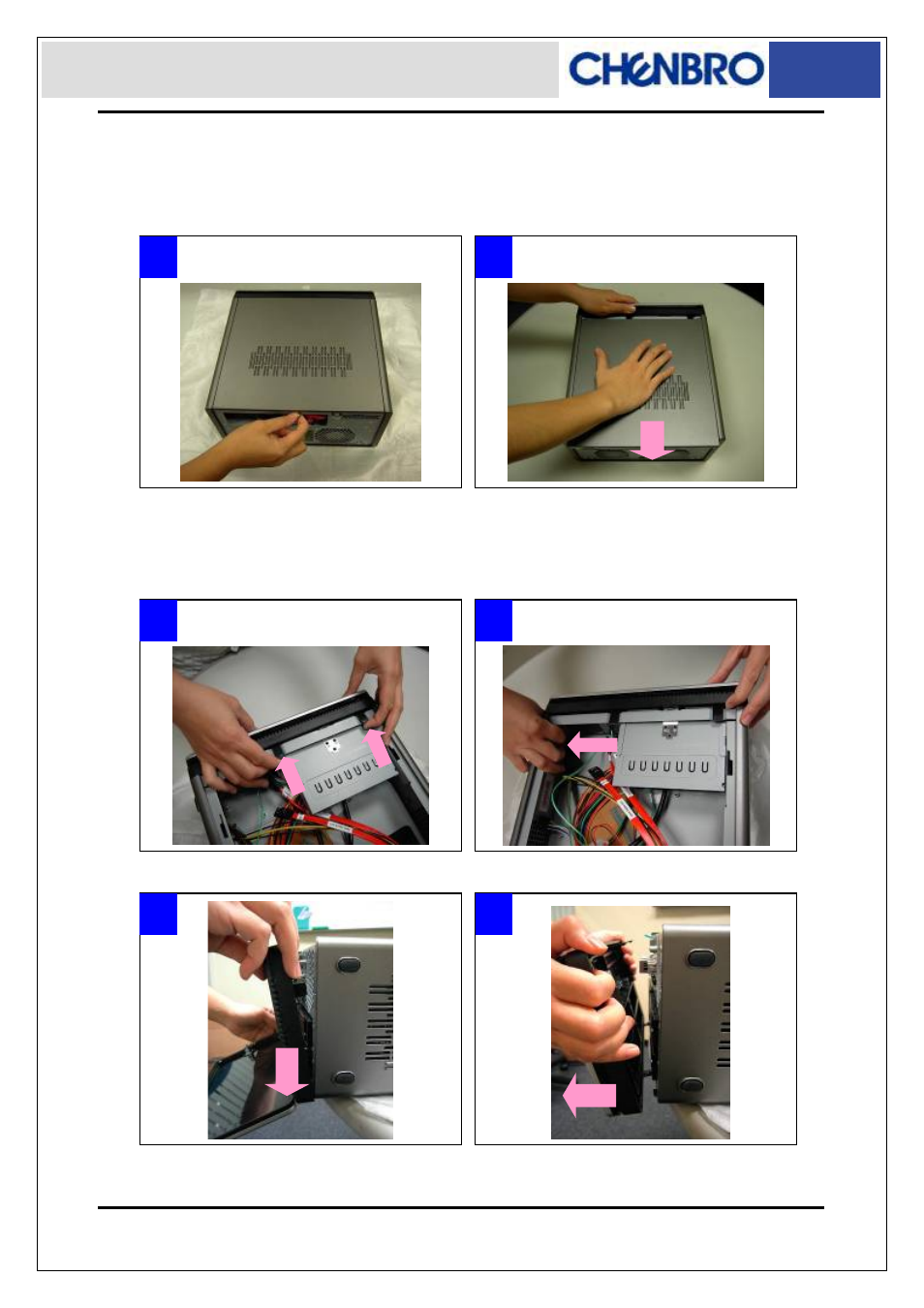

To open the chassis for assembly of internal parts, users need to:
z Remove the side panel and front bezel
Side Panel Removal
Front Bezel Removal
1 2
1 2
■ Release the side panel thumb screw on the rear ■ Push and slide the side panel toward rear to open the
chassis
3 4
■ Lift up the latch along the side to detach the bezel ■ Detach the bezel from Slim ODD side gently
■ Angle the latch until it is 15 degree away from the
chassis
■ gently pull the bezel to make it detach
