Chenbro ES34169 - Installation User Manual
Page 12
www.chenbro.com
12
ES34169 Chassis User’s Manual Rev. A1

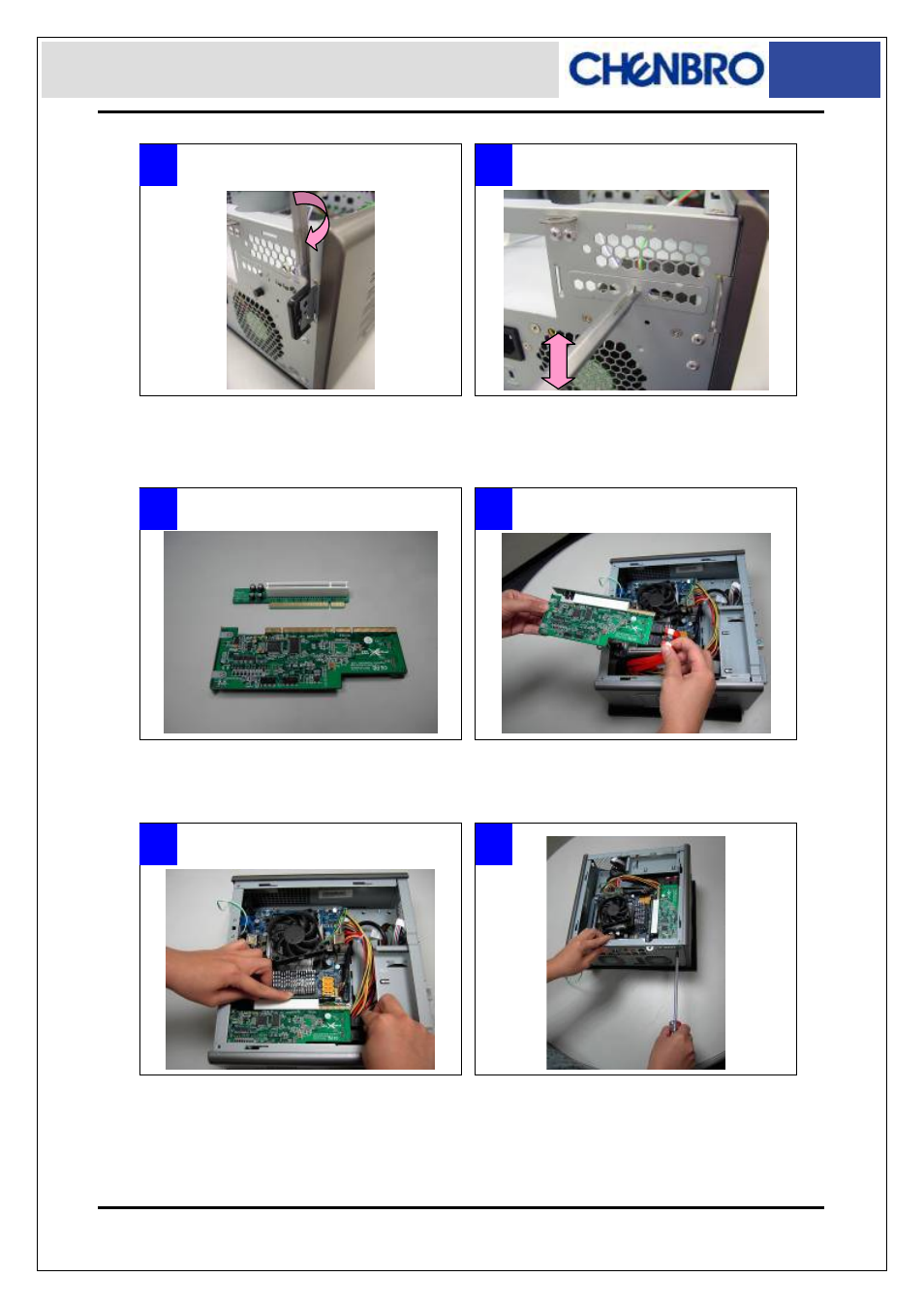

Installing Riser Card
3
4
5
6
■ Assemble riser and low profile add-on card
■ Install the riser card onto motherboard.
(Please pay attention to the cable arrangement)
■ Attach screws on the rear side to secure the PCI card
■ Connect the cables before install.
1
2
■ Remove the cap on slot holder
■ Detach the low profile slot bracket from rear window
