www.chenbro.com 15
ES34169 Chassis User’s Manual Rev. A1

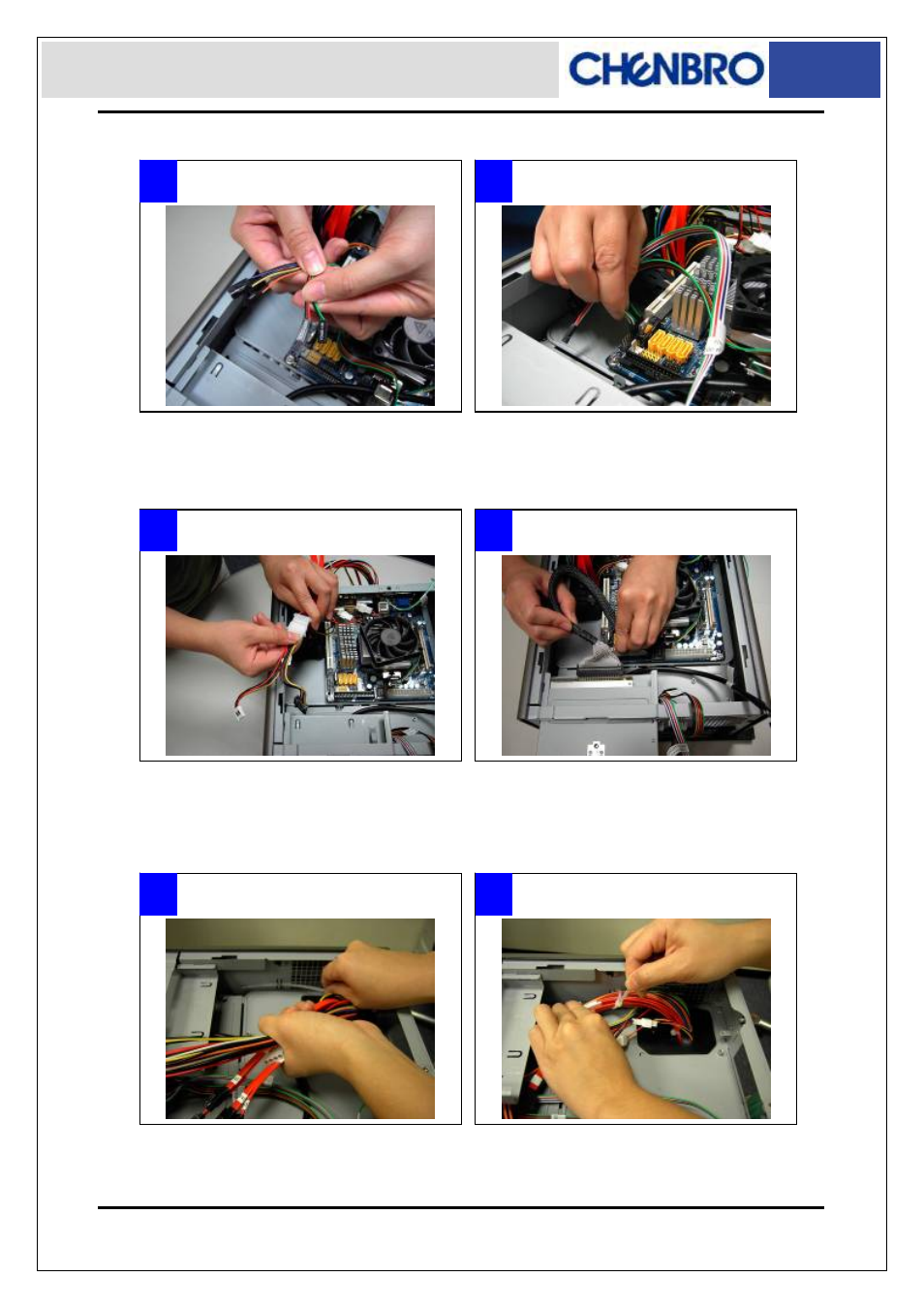

b. Front display cable connection
c. Slim ODD cable connection
d. Cable management
1 2
1 2
■ The cable with different connection for:
Power on, HDD, LAN, FAIL and the front switch
■ Connect to the M/B according to the M/B pin header
definition properly.
■ Use power split cable in accessory pack for conversion
of DC harness, small 4P is connected to the Slim
ODD adaptor board
■ Use either standard IDE / SATA cable from 3 rd party
M/B, or use optional cable from Chenbro to connect
to the Slim ODD adaptor board
1 2
■ Due to limited space inside the chassis, make sure all
cable are connected properly and use the cable tie
through the bridge land on side wall
■ Tie up the cable so the cables are fixed in certain
space.
