4.1.2 Gain Selector

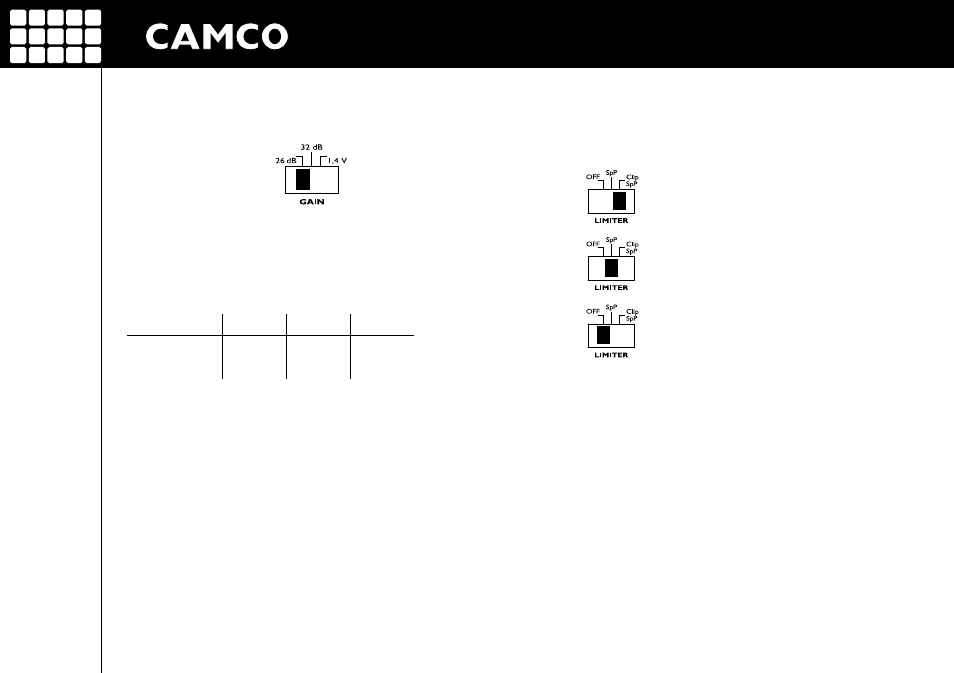

This switch on the rear of the D-POWER 7 allows the maximum amplification
attainable to be set directly in the input stage.
The D-POWER 7 amplifier has a 26 dB and 32 dB voltage gain setting along
with a 1,4 V sensitivitysetting.
4.1.3 Gain and Input Sensitivity
The table shows input sensitivity per channel for a given gain and load. It
also shows the gain for the 1,4 V input sensitivity.
26 dB
32 dB
1,4 V
3500 W @ 2 Ω
2500 W @ 4 Ω
1450 W @ 8 Ω
4,19 V
5,01 V
5,40 V
2,10 V
2,51 V
2,71 V
37,5 dB
4.1.4 Limiter Switch
This switch is located at the rear of D-POWER 7. It allows you to set the
mode of the limiter. There are three modes (See 4.3.1 Clip Limiter and 4.3.4
Speaker Protect Limiter):
Right position:
Clip
Limiter:
On
Speaker
Protect:
On
Middle position:
Clip
Limiter:
Off
Speaker
Protect:
On
Left position:
Clip
Limiter:
Off
Speaker
Protect:
Off
4 OPERA
TION
