D - P O W E R
S E R I E S
D-POWER 7
A
B
Z ≥ 2*Z
min
*Z
min
= 2 Ω
Bottom SPEAKON
Upper SPEAKON Input
Channel A
Input
Channel B
USER MANUAL
D-POWER 7
P.14

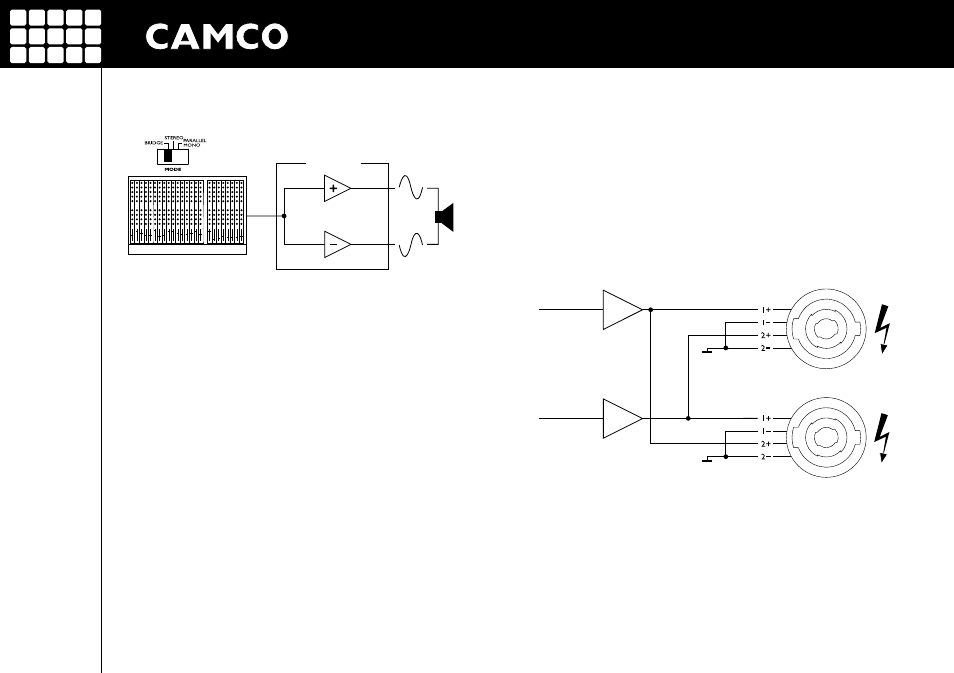

3.8.4 Mono Bridge Operation
One-channel mono bridged operation.
The second channel processes the same input signal, but with reversed
phase. The (single) load is connected between the two positive channel
outputs using a suitable connected SPEAKON
® connector. While the total
output of the ampli fier remains the same, both the available output volt-
age and the minimum impedance that can be connected are doubled, as
compared with stereo operation. Only channel A-Input is active – turn the
volume on channel B down to zero.
WARNING !
In Mono Bridge mode RMS output voltages are as high as 230 V. Wir-
ing to the speaker loads must conform to NEC Class 3 safety stand-
ards or its equivalent that meets all national and local electric codes.
All customer specific cables may only be manufactured by qualified
suppliers/personnel. All cabeling or rewiring work must be carried out
by qualified personnel.
3.8.5 SPEAKON ® Connection
Both SPEAKON ® connectors are connected to channel A and channel B
outputs. The pin configuration of the SPEAKON ® connectors is as follows:
Upper SPEAKON ® : Pin 1+ Channel A signal
Pin 1- Channel A ground
Pin 2+ Channel B signal
Pin 2- Channel B ground
Bottom SPEAKON ® : Pin 1+ Channel B signal
Pin 1- Channel B ground
Pin 2+ Channel A signal
Pin 2- Channel A ground
WARNING!
SPEAKON
® connectors marked with the lightning flashes indicate
high vol tages that are potentially life threatening.
Wiring to these terminals requires installation by an instructed person
or the use of ready-made leads or cords.
Custom wiring should only be carried out by qualified personnel.
