Installation and Maintenance Manual
Triad Series Ball Valves
Date: August 2011 / Page 4 of 7
®
A Subsidiary of BRAY INTERNATIONAL, Inc.
FLOW-TEK, Inc.
Tel: 832.912.2300
© 2011 Flow-Tek, Inc.
8323 N. Eldridge Pkwy #100
Fax: 832.912.2301
Houston, Texas 77041
www.flow-tek.com
24
23
26
25
28
29
12
11B
5
6B
2
2
1
9
9
6B
6A
6A
4
4
3
10
15
18
26
14
11A
19
Flow-Tek offers the seat, body
seals, thrust washer and stem
packing as recommended
spare parts. These parts are
available as a packaged
repair kit.

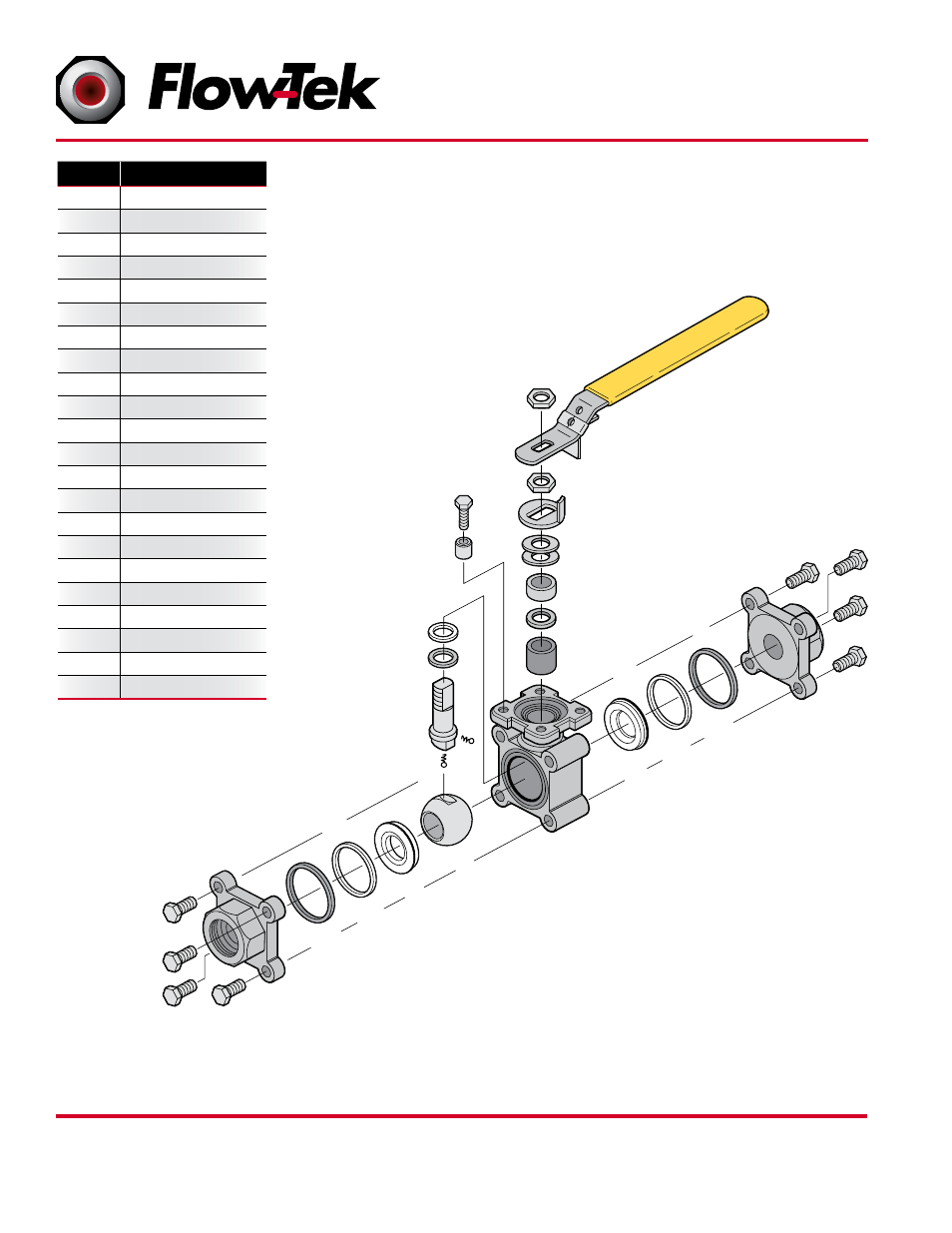

Item
Name
1
Body
2
End Cap•
3
Ball
4
Seat
5
Stem
6A
Body Seal
6B
Body Seal
9
Body Bolt*
10
Anti-Static Device
11A
Packing Protector
11B
Thrust Washer Protector
12
Thrust Washer
14
Stem Packing
15
Packing Gland Sleeve
18
Belleville Washer
19
Tab Lock Washer
23
Travel Stop Set Sleeve
24
Travel Stop Bolt
25
Handle
26
Lock Nut
28
Handle Sleeve
29
Locking Device
*Items contained in repair kit
Valve Sizes:
1/4” through 2 1/2”
