orientation of the stop plate is correct in relation
to Stop Pin Bolt(19);
13. Install handle(17) onto the stem, on top of the stop
plate;
14. Secure the handle with the handle nut (16)
15. Cycle the valve slowly with a gentle back
and forth motion, to build gradually to the full
quarter turn. By cycling slowly, the seat lips will
assure a permanent seal shape against the ball.
A fast turning motion, at this point, may cut the
seats before they have a chance to form the
proper seal.
1
6
5
17
1
6
5
2
5
6
1
5
6
16
17
4
3
20
13
13a
19
17
18
11
10
9
8
7
14
12
15
19
19
17
19
17
19

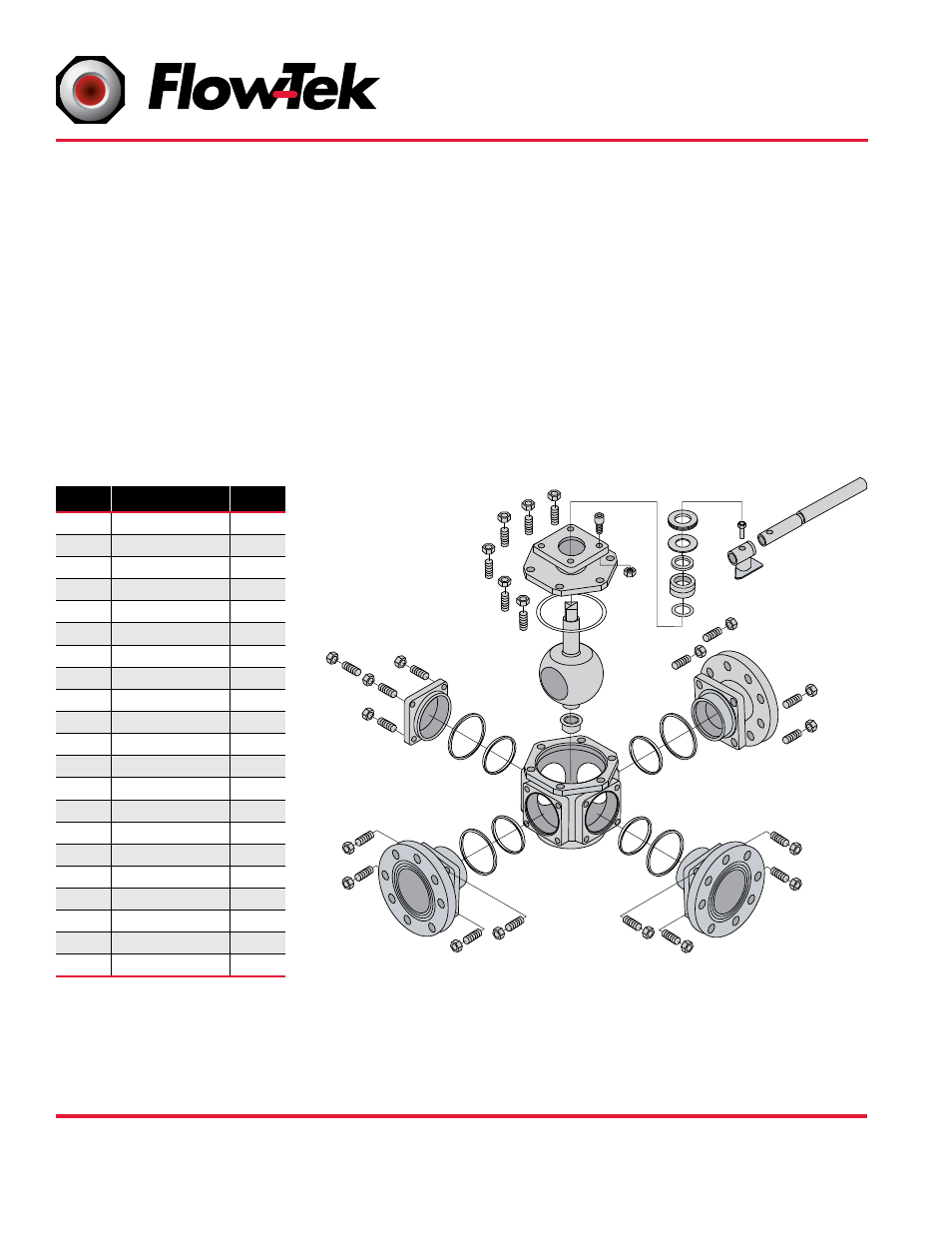

Item Name Qty.
1 End Cap 3
2 Body 1
3 Ball & Stem** 1
4 Stem Bushing** 1
5 Seat* 4
6 Gasket** 4
7 O-ring* 1
8 Stem Packing* 1
9 Gland 1
10 Belleville Washer 2
11 Packing Nut 1
12 Handle T-Bar 1
13 Stop Pin Bolt 1
13a Stop Pin Nut 1
14 Handle Bolt 1
15 Handle 1
16 Blank Cover 1
17 Threaded Stud 22/24
18 Bonnet 1
19 Hex Nut 22/24
20 Bonnet Gasket 1
Model MPF150
Flanged End
Connections
2 1/2” – 4”
shown
