6

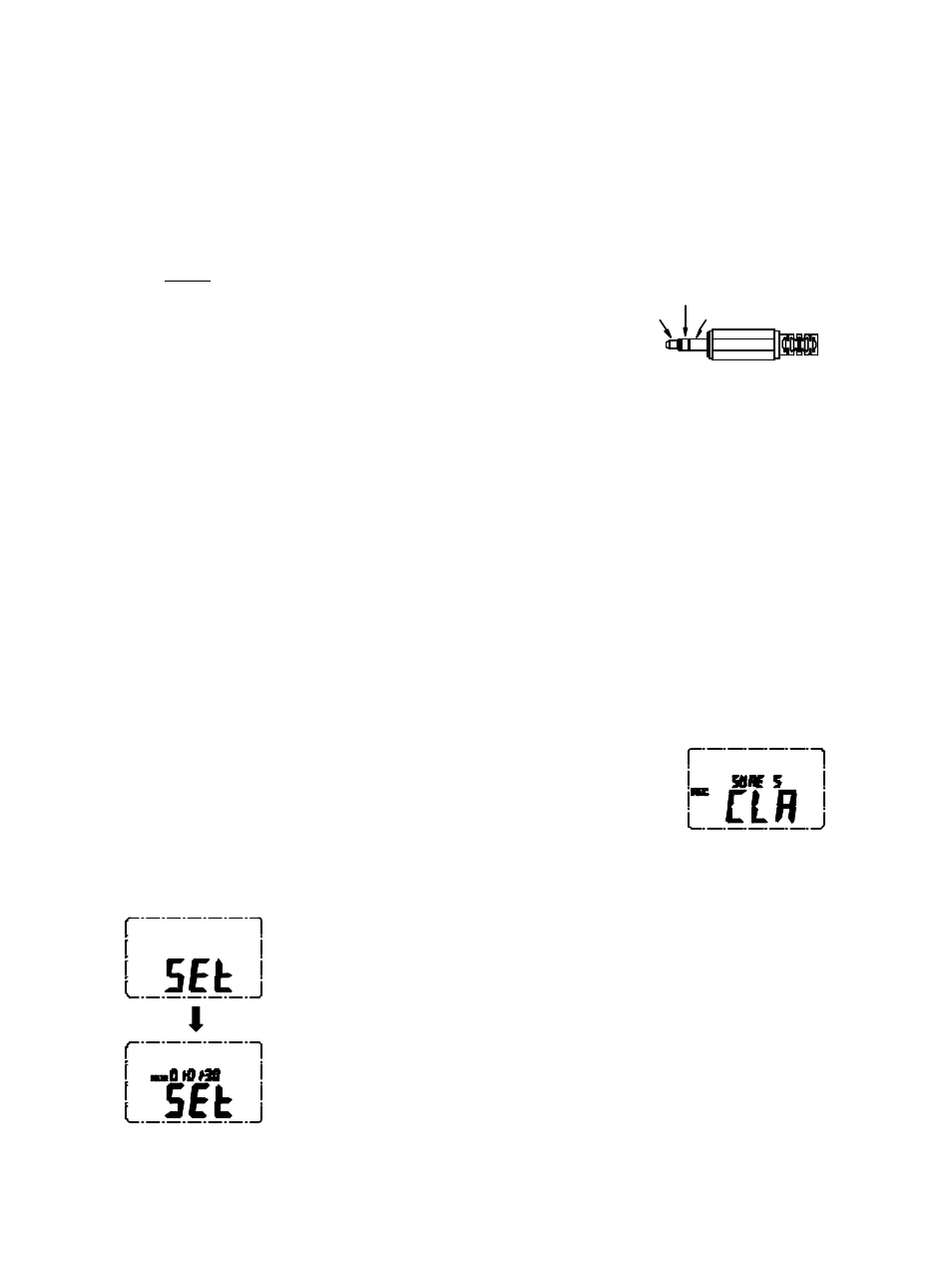

DC Signal
AC Signal Ground
?
12 Signal output terminal
AC: 1 Vrms Corresponding to each range step.
Output impedance
? 100O
Output signal by standard 3.5mm coaxial socket signal.
Note: At “Auto” level range, output signal is Auto select on “Lo” or “Med” or
“Hi” level range.
DC: Output: 10mV/dB
Output impedance = 1K
O
The output signal is sent by standard 3.5mm coaxial socket signal.
?
13 External DC 9V power supply terminal
Allows for an external AC adapter.
?
14 Tripod mounting screw.
?
15 Battery Cover
V. DATA LOGGER CLOCK & INTERVAL SETUP
(Model 735 Only)
§ DataLogger:
When you press the "REC" button, the meter will begin
recording, and pressing the "REC" button again will stop
recording, If you want to clear the memory, power off the
meter, then press and hold the “REC” button and then
press power button and hold it for at least 5 seconds, then
LCD will show "CLR" and “SURE” to clear the memory.
§ Clock Setup:
1: press and hold the “A/C” button and then power on the
meter:
2: press “MAX MIN”(clock) button:
3: press "REC"
? or "LEVEL" ? to increase or decrease
number, press “MAX MIN”(clock) to adjust next item. The
adjusting order is year
? month? day? hour? minute, then
press “MAX MIN” (clock) to finish adjusting. If you want to
abort during a setup process, press power button to cancel.
