31
B. Read IDs from Vehicle
1) From the TPMS Diagnosis Menu, use the UP/DOWN scroll
button to select the Read IDs from Vehicle, and press Y button.
(Figure 4.22)
2) The tool will display the sensor IDs and positions for your
viewing. Press the Y button to save data for future review, or
the N button to exit without saving. (Figure 4.26)

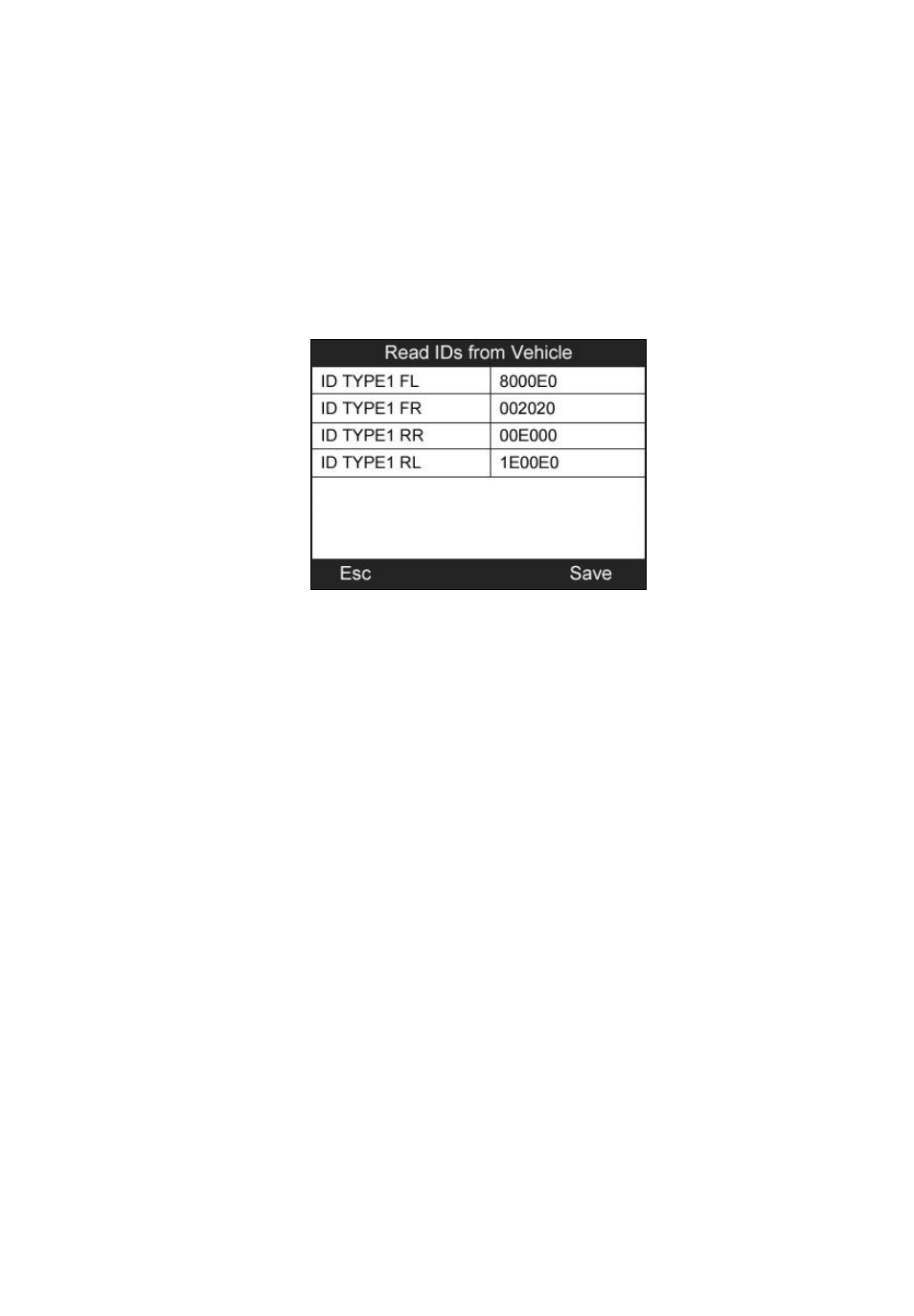

Figure 4.26
C. Read Codes
1) From the TPMS Diagnosis Menu, use the UP/DOWN scroll
button to select the Read Codes, and press Y button. (Figure
4.22)
2) A data list of TPMS DTCs retrieved from the vehicle’s ECU
will show up. If the data covers more than one screen, use the
UP/DOWN scroll button to view additional DTC information,
and press the Y button to save data for future review, or press
the N button to exit without saving. (Figure 4.27)
