Options & Accessories
* Specifying Note: Select AC input voltage option

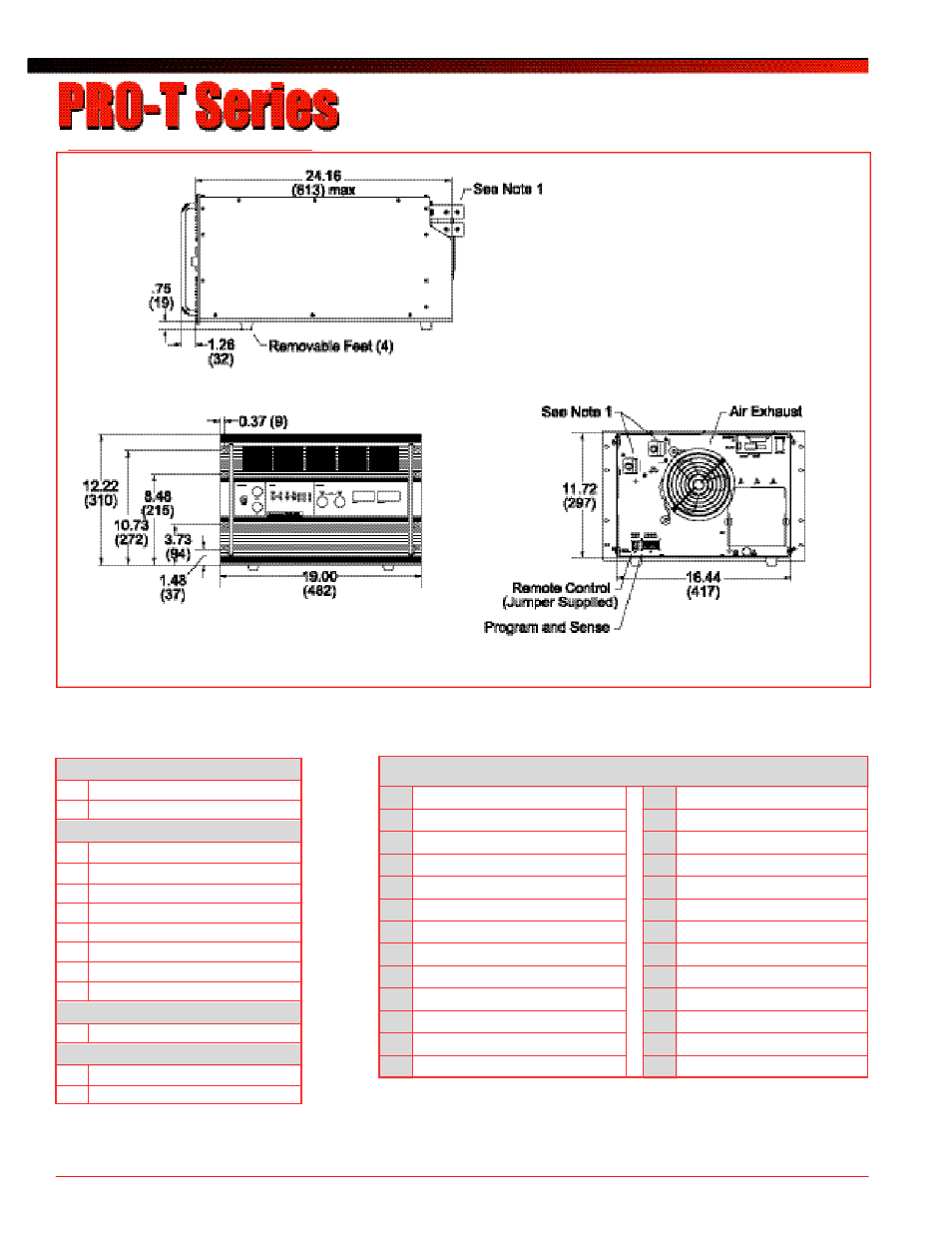

Side View
Front View Rear View
Dimensions in inches (millimeters) Note 1: 300V and 600V units provided with 1” long x 5/16” threaded output studs in place of buss bars
and add as a part number suffix to specify
power supplies (listed as 50-60 Hz, three phase)
Accessories
M5 SCR Crowbar
M9C Internal IEEE-488/RS 232 Interface
M36 CE Mark
Input Voltage Options*
T1 208 VAC
T2 380 VAC
T3 415 VAC
T4 440 VAC
T5 480 VAC
T8 220 VAC
T10 230 VAC
M85 Multichannel Slave Interface
T11 400 VAC
Remote Interface Options
Accessories
Regulatory Compliance
M86 Parallel Cable
M5A: J-305 Pin Assignments
1 Overvoltage Protection Flag 14
2
3
4
5
6
7
8
9
10
11
12
16
Not Used
TTL Shutdown Return 15 TTL Shutdown
Not Used Current Limit Program
Program Return 17 Voltage Program
Program Return 18 Current Readback
Auxiliary Ground 19 Voltage Readback
Remote Voltage Program Select* 20 +10V Reference Out (10 mA max.)
Remote Current Program Select* 21 Output Fail Flag*
Voltage Current Limit Mode Indicator 22 + Sense
+ Out 23 + Out
+ Out 24 - Return
- Return 25 - Return Sense
13 - Return
