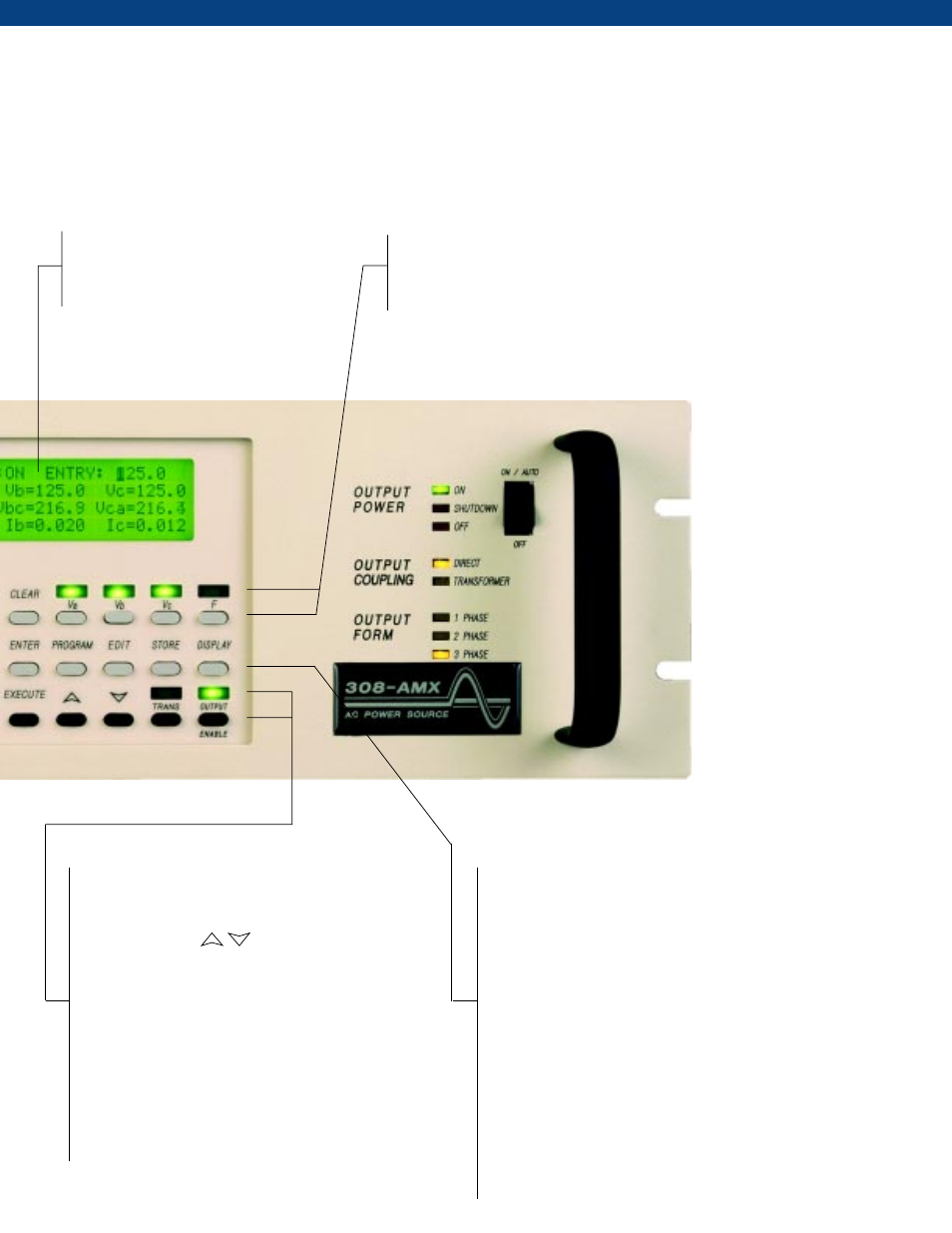

TOTAL CONTROL, METERING,
AND ANALYSIS OF AC POWER.
SIMPLE INTUITIVE OPERATION.
INFORMATIVE 160 CHARACTER
LCD DISPLAY
• Soft green backlight
• Adjustable PARAMETER SELECT KEYS
Select phase voltages and operating frequency when manual control
is desired. The selected parameter is indicated by the LCD display.
The clear key erases entries and keeps erasing with repeated pressing
until the basic VI screen is displayed.
EXECUTE KEY
Instantly executes a stored program that has been
selected with the program key.
SLEW KEYS
Smoothly change the designated voltage or
frequency parameters. Rates are separately
programmable.
TRANSIENT (TRANS) KEY
Turns time based or cycle based transients On or
Off. Indicator is On when transient is executed.
OUTPUT ENABLE KEY
Turns the output contactor of the power source On
or Off. Indicator is On when the contactor is closed.
ENTER KEY
Stores new parameter data that has been keyed in.
PROGRAM KEY
Selects 1 of 99 programs for edit or execution.
EDIT KEY
Selects the program edit mode and prompts for new
entry.
STORE KEY
Stores a program upon completion of editing.
DISPLAY KEY
Sequences through each metering screen:
• VI Meter
• Power Meter
• AMPS Meter
• Waveform Analysis (option)
