XR SERIES II
Enhanced Front Panel Control
M
AGNA-POWER
ELECTRONICS
M
E
P

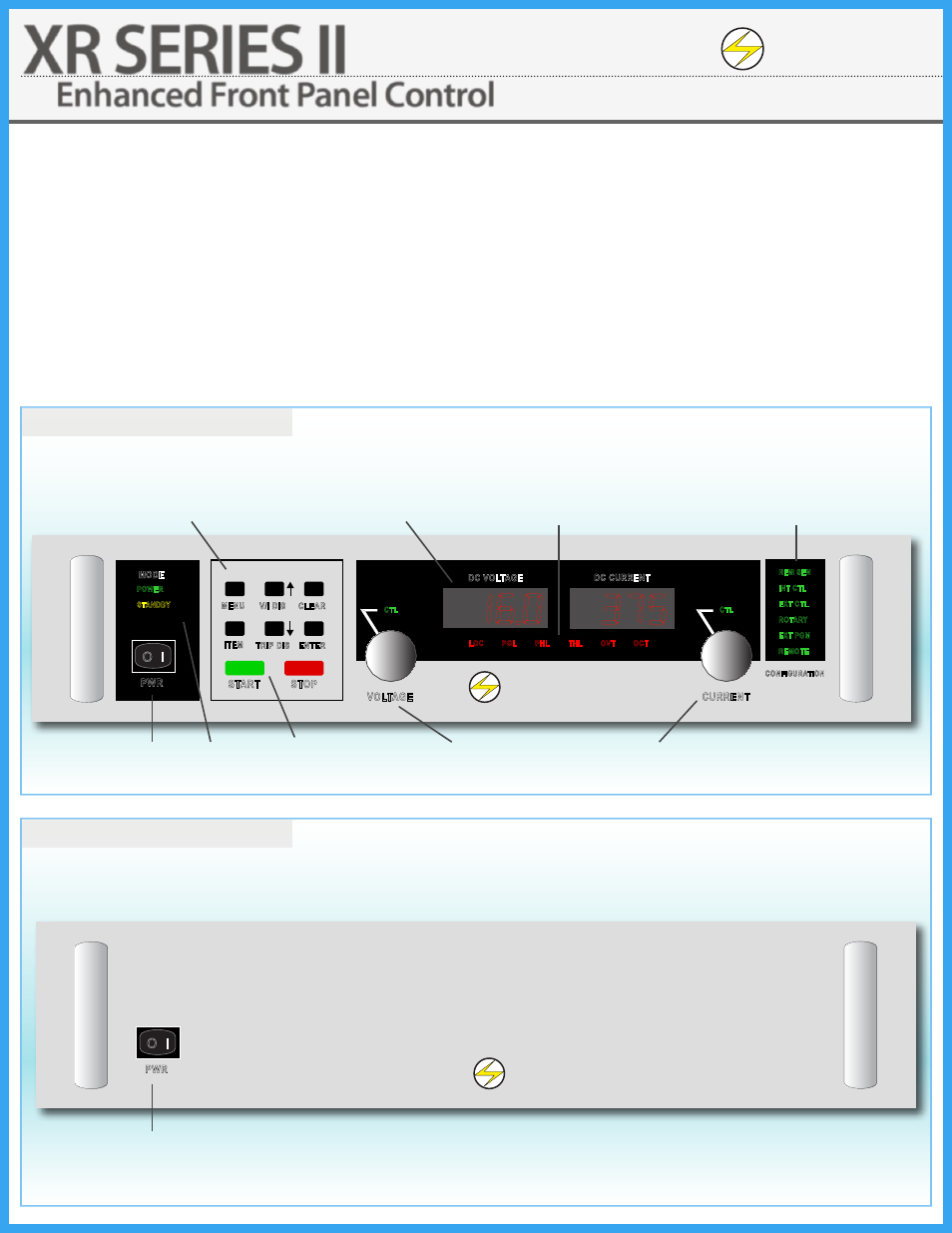

Standard Front Panel
XR models provide stepless analog control from front panel
potentiometers. With a simple configuration change, the
power supply can be programmed from the rear I/O connec-
tor or through software on one of the communication buses.
Computer Control: C Version Front Panel
XR models utilizing the C Version front panel, XRC, only
allows control from the rear I/O connector or by RS232/GPIB/
USB/Ethernet communications. These models are intended
for process control applications where front panel controls
and displays are not required nor desired.
DC VOLTAGE DC CURRENT
VOLTAGE
START STOP
CONFIGURATION
MENU
ITEM
V/I DIS
TRIP DIS
CLEAR
ENTER
CURRENT
PWR
MODE
M
AGNA-POWER
ELECTRONICS
M
E
P
I O
POWER
STANDBY
REM SEN
PGL LOC PHL THL OVT OCT
INT CTL
EXT CTL
ROTARY
EXT PGM
REMOTE
CTL CTL
375 16.0
PWR
M
AGNA-POWER
ELECTRONICS
M
E
P
I O
ALARMS:
LOC: Interlock
PGL: Extermal input beyond limits
PHL: Indicates a problem with the input voltage
THL: Indicates overheating
OVT: Shows over voltage protection has tripped
OCT: Show over current protection has tripped
CONFIGURATION:
REM SEN: Indicates remote sense
INT CTL: Front panel controls enabled
EXT CTL: External controls enabled
ROTARY: Potentiometer voltage/current control
EXT PGM: External voltage/current control
REMOTE: RS232 control enabled
Meters display voltage, current, over voltage
trip, over current trip
Switches main power on and off Energizes control circuits without
turning the main power on
Sets voltage and current in rotary mode
FUNCTION KEYS:
MENU: Select function
V/I DIS: Displays voltage and current setting
CLEAR: Clear setting or reset fault condition
ITEM: Select item within function
TRIP DIS: Displays OVT and OCT setting
ENTER: Enter Setting
MODES:
POWER: Indicates power output
STANDBY: Indicates control power only
Energizes control circuits without
turning the main power on
Standard Front Panel
C Version Front Panel
