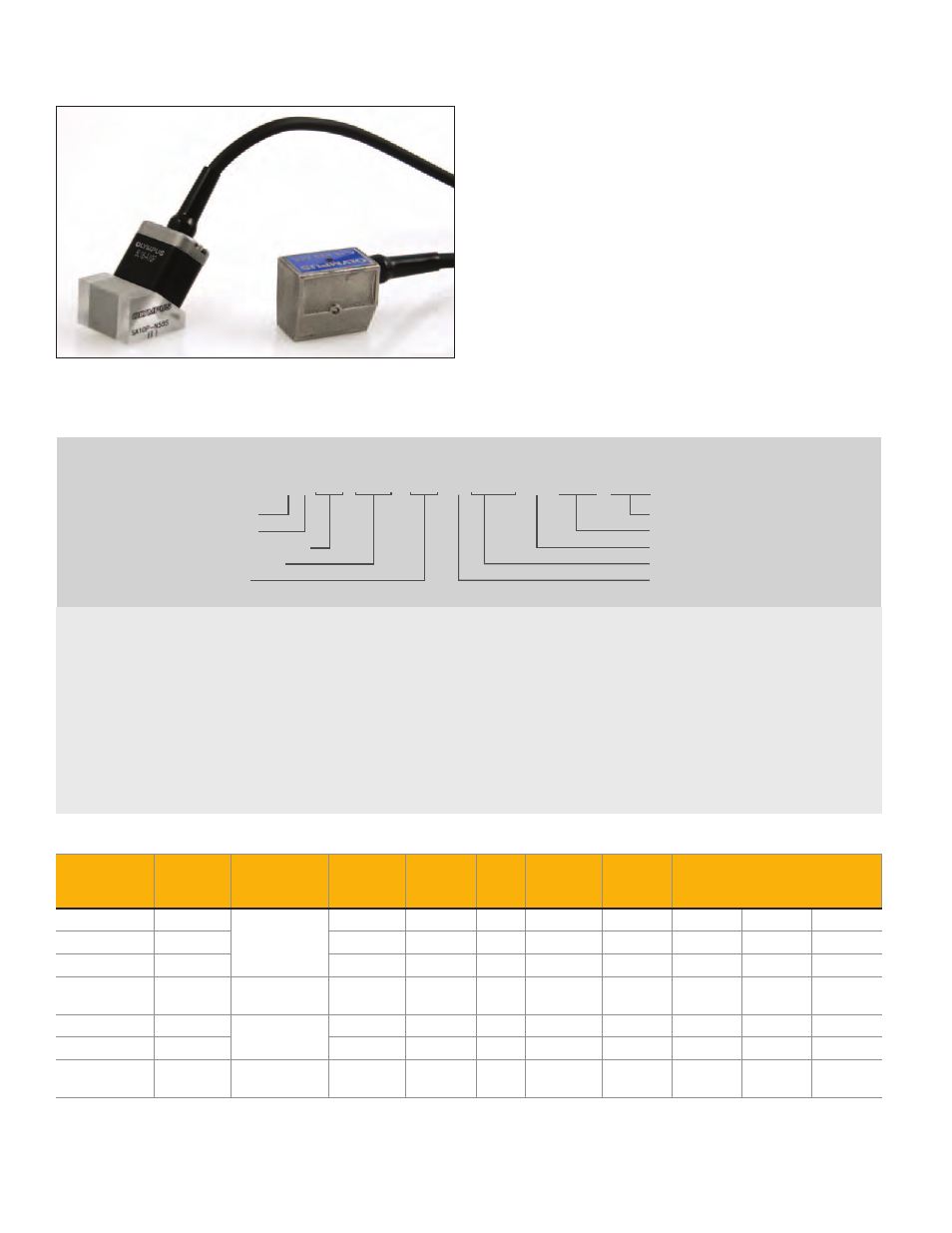

EPOCH 1000i Phased Array Probes and Accessories
The EPOCH ® 1000i supports a new series of phased array probes
to meet the demands of critical inspections. These probes include
specialized probes for specific code compliance, and standard
weld inspection probes, including removable or integral wedge
phased array probes. Most common phased array probes with up
to 64 elements are supported.
Fast Switch from Conventional to Phased Array
The EPOCH 1000i is compatible with all standard single element
transducers in conventional mode. Switching between conven‑
tional UT and phased array inspection is as easy as pressing a
button. The EPOCH 1000i features a high‑speed transition from
UT to PA mode, enabling you to easily combine conventional UT
and phased array inspections.
Probes*
Probe
Description
Item
Number
Usage/
Code
Compliance
Frequency
(MHz)
Number
of
Elements
Pitch
Active
Aperture
(mm)
Elevation
(mm)
Dimensions in mm
L x W x H (in.)
2.25L8‑A10P U8330663
General
Purpose
2.25 8 1.2 9.6 x 10 10 22.5 (0.89) 15.6 (0.61) 20 (0.79)
5L16‑A10P U8330661 5.0 16 0.6 9.6 x 10 10 22.5 (0.89) 15.6 (0.61) 20 (0.79)
10L16‑A10P U8330662 10 16 0.6 9.6 x 10 10 22.5 (0.89) 15.6 (0.61) 20 (0.79)
2.25L16‑AWS1 U8330660
AWS D1.1/
D1.5
2.25 16 1.0 16 x 16 16 37.6 (1.48) 25.4 (1.0) 17.8 (0.70)
2L8‑DGS1 U8330598
Integral Wedge/
DGS‑AVG
2.0 8 1.0 8 x 9 9 27.3 (1.07) 16.8 (0.66) 22.3 (0.88)
4L16‑DGS1 U8330597 4.0 16 0.5 8 x 9 9 27.3 (1.07) 16.8 (0.66) 22.3 (0.88)
5L64‑A12 U8330593
General
Purpose
5.0 64 0.6 38.4 x 10** 10 22.5 (0.89) 44.6 (1.76) 20 (0.79)
*All probes are supplied with 2.5-meter cable and OmniScan-style connector. For other variations contact Olympus NDT.
** Represents all 64 elements. Only 16 or fewer elements can be active at one time.
Ordering Information
Numbering systems used to order standard phased array probes.
5L16-9.6x10-A10P-P-2.5-OM
Frequency
Array Type
Number of Elements
Active Aperture
Elevation
Cable Length
Cable Type
Casing Type
Probe Type
Connector Type
Frequency
2.25 = 2.25 MHz
5 = 5.0 MHz
10 = 10.0 MHz
Array Type
L = Linear
Number of Elements
16 = 16 Elements
Active Aperture
Active aperture in mm
Elevation
Elevation in mm
Example 10 = 10.0 mm
Probe Type
A = angle beam with external wedge
DGS1 = DGS inspection/Atlas (AVG
probe)
AWS1 = AWS Inspection
Casing Type
Casing type for a given probe type
Cable Type
P = PVC outer
M = Metal armor outer
Cable Length
Cable length in m
2.5 = 2.5 m
5 = 5.0 m
10 = 10.0 m
Connector Type
OM = OmniScan ® connector
