Loaded With Practical Measurement Features
the ePocH Xt incorporates many standard measurement features including a tunable square wave pulser, selectable narrow-band and
broadband digital filters, gain range from 0 dB to 110 dB, peak memory and peak hold, adjustable PrF, 0.01 mm (0.001 in.) measure-
ment resolution, and two gates with programmable alarms. in addition, the unit offers many standard and optional application-specific
software features: Dynamic Dac/tVG (Distance amplitude correction/ time Varied Gain), on-board DGs/aVG, aws D1.1 and D1.5,
manual or encoded B-scan, advanced Filter, and GageView Pro
® .
• standard tunable square wave pulser
with Perfectsquare™ technology allows
the operator to adjust pulse width to
maximize transducer performance.
• standard digital receiver filtering:
broadband, several narrow-band
settings, and a high-pass setting
• Five measurement displays that are
fully customizable to meet inspection
needs. select any Gate 1 or Gate 2
measurement for each display box.
• amplitude measurement resolution of
0.25% full-screen height
• amplitude measurement from 0% to
110% full-screen height
• Gate measurement modes: Peak, edge
and First Peak Mode for thickness
measurement applications
• Measurement rate adjustable from
10 Hz to 1 kHz in 10 Hz increments on
live screen
• Peak Mem. and Peak Hold functions
in all rectified modes. Peak Hold also
functions in rF mode.
• Grid Display modes
– standard 1 to 10
– sound path
– leg mode for angle beam inspection
– selectable 100% or 110% vertical
display
• leg indicator and measurement mode
indicator for each gate
• alarm indicator for each gate

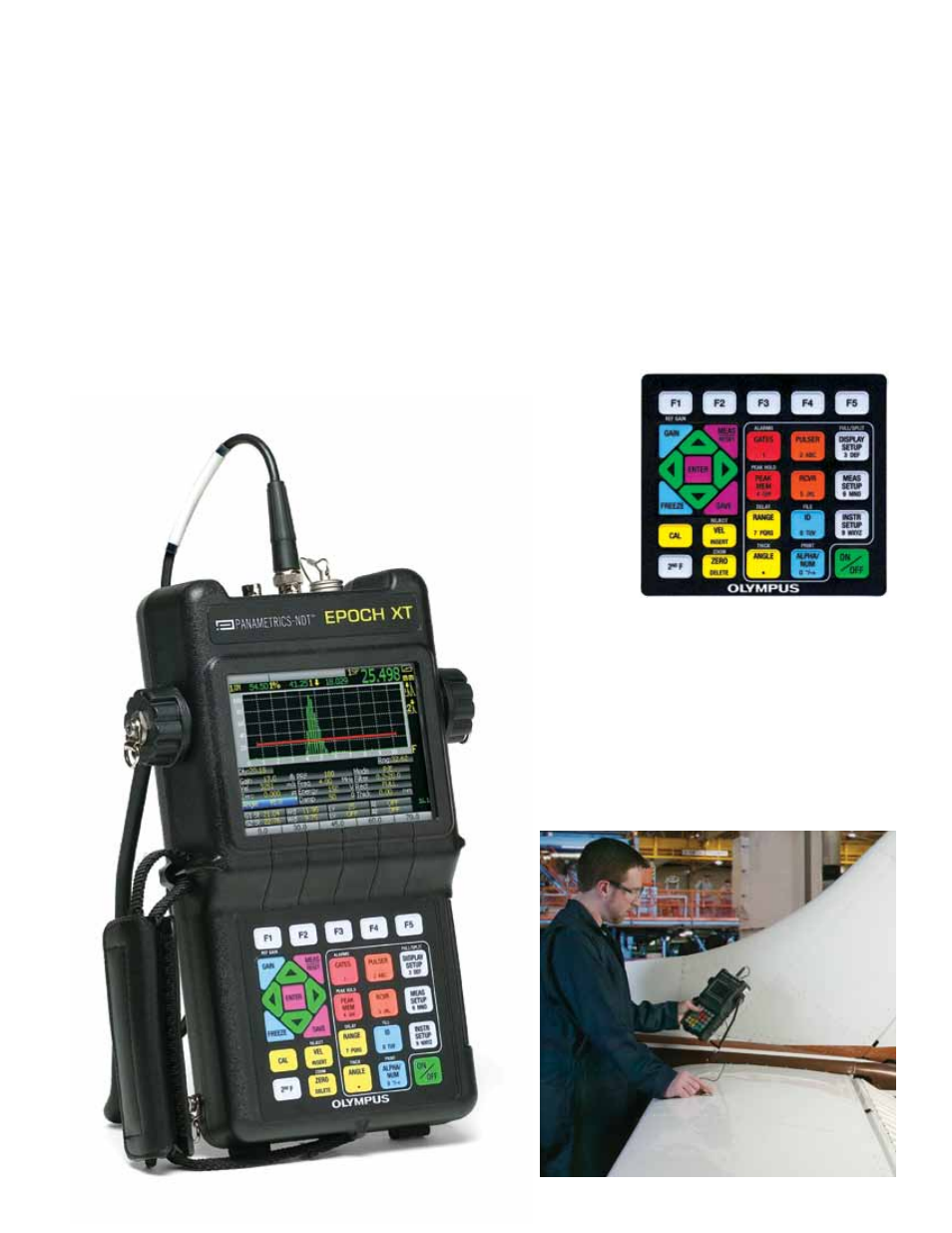

Direct-access Keypad
• logical color-coded key organization
• Direct access to important instrument
setup parameters
• Direct entry of alphanumeric characters
• Five customizable function keys allow
the operator to quickly select preset
values.
• available in english, Japanese, or
chinese, or international symbols
