4
Frequency
Range
ESG-A series
E4400B
250 kHz to 1 GHz
E4420B 250 kHz to 2 GHz
E4421B 250 kHz to 3 GHz
E4422B 250 kHz to 4 GHz
ESG-AP series
E4423B
250 kHz to 1 GHz
E4424B 250 kHz to 2 GHz
E4425B 250 kHz to 3 GHz
E4426B 250 kHz to 4 GHz
ESG-D series
E4430B
250 kHz to 1 GHz
E4431B 250 kHz to 2 GHz
E4432B 250 kHz to 3 GHz
E4433B 250 kHz to 4 GHz
ESG-DP series
E4434B
250 kHz to 1 GHz
E4435B 250 kHz to 2 GHz
E4436B 250 kHz to 3 GHz
E4437B 250 kHz to 4 GHz
Underrange 100 kHz
Resolution 0.01 Hz
Accuracy Same as timebase
Switching speed (typical) 1 ESG-A and ESG-AP and
ESG-D series ESG-DP series
Modulation on
Analog <50 ms <65 ms
Digital <90 ms <100 ms
Modulation off <40 ms <55 ms
Phase offset Phase is adjustable via GPIB or
front panel in nominal 0.1°
increments
Frequency bands
Band Frequency range N #
1 250 kHz to
≤249.999 MHz
1
2 >249.999 to ≤500 MHz 0.5
3 >500 MHz to
≤1 GHz
1
4 >1 to ≤2 GHz 2
5 >2 to ≤4 GHz 4
Sweep modes
Operating modes Frequency step, amplitude step
and arbitrary list
Dwell time 1 ms to 60 s
Number of points 2 to 401
Internal reference oscillator
Stability ESG-A and ESG-D ESG-AP and ESG-DP
series standard series standard
ESG-A and ESG-D
series Option 1E5
Aging rate <±1 ppm/yr <±0.1 ppm/yr or
<±0.0005 ppm/day after
45 days
Temp. (0 to 55° C) <±1 ppm, typical <±0.05 ppm, typical
Line voltage <±0.1 ppm, typical <±0.002 ppm, typical
(+5%, –10%) (+5%, –10%)
Timebase reference output
Frequency
10 MHz
Amplitude >0.35 V
rms
into 50 Ω load
External reference input
Frequency
1, 2, 5, 10 MHz
± typical 10 ppm
(typical 1 ppm, ESG-AP
and ESG-DP series,
ESG-A and ESG-D
series Option 1E5)
Amplitude >0.15 V
rms
Input impedance 50 Ω
Output
Power 2 Standard Option UNB
250 kHz to 1 GHz +13 to –136 dBm +17 to –136 dBm
>1 to 3 GHz +10 to –136 dBm +16 to –136 dBm
>3 to 4 GHz +7 to –136 dBm +13 to –136 dBm

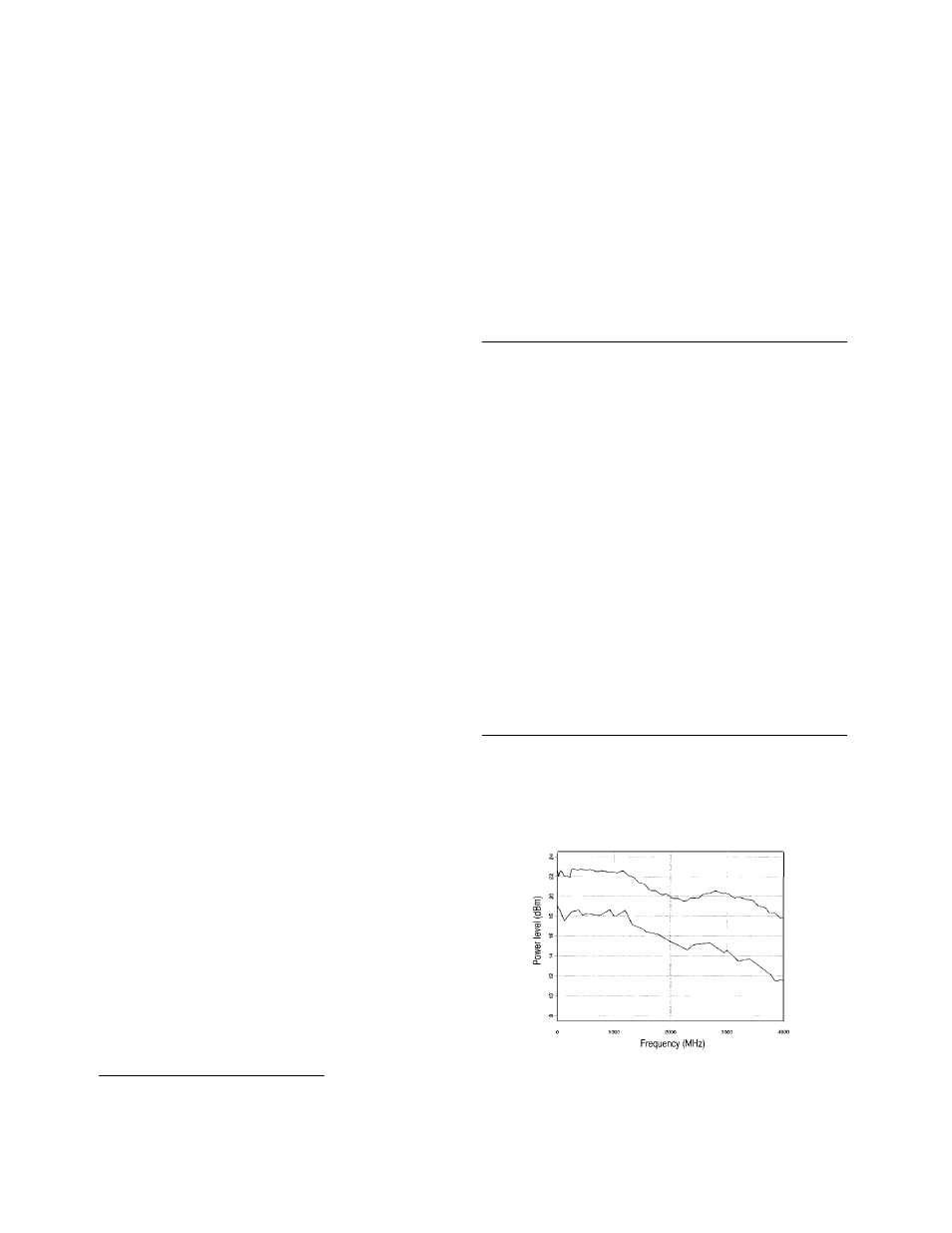

Typical maximum available power
Specifications for analog and digital models
1. To within 0.1 ppm of final frequency above 250 MHz or within 100 Hz below 250 MHz.
2. With high performance pulse modulation (Option 1E6) installed, all maximum power specifications drop by 4 dB.
Specifications describe the instrument’s warranted performance and apply after a 45 minute warm-up. All specifications are valid over the signal generator’s entire
operating/environmental range while in phase noise mode 2, unless otherwise noted. Supplemental characteristics, denoted typical or nominal, provide additional
(nonwarranted) information useful in applying the instrument.
