Specifications
California
Instruments
Total Customer Satisfaction
is the goal of all California In-
struments’ employees. It is the
driving force behind every-
thing we do. This not only af-
fects the product that you pur-
chase from California Instru-
ments, but everything about
your interface with the com-
pany. Our applications engi-
neers are ready to assist you
with your AC power applica-
tion. With over 35 years of
experience designing and
building precision AC power
supplies, chances are we can
meet your needs and exceed
your expectations. The same
dedication to customer satis-
faction you will find in our ap-
plications group also perme-
ates our modern manufactur-
ing facility where our products
are carefully built. No unit
leaves our factory without be-
ing thoroughly tested to en-
sure quality, reliability and
conformance to specifica-
tions.
Parameter 2001RP Unit
Controller
Type Programmable
Controls Digital Encoders
Readouts dual 4 digit LCD’s
Non Volatile Setups (with -OP1 option) 1 (8)
Output
AC Power maximum 2000 VA
Load Connection floating neutral Rear panel terminal block
optional Universal front panel sockets
Voltage
High / Low range (except -AV and -LZ options) 0-300 / 0-150 V RMS
Accuracy 16 Hz - 100 Hz ± 0.1 % FS
100 Hz - 5000 Hz ± 0.2 % FS
Resolution 0.1 V
Load Regulation remote sense ± 0.1 % FS
Line Regulation 10 % Line change ± 0.02 % FS
T.H.D. (into a 16 Hz - 100 Hz 0.5 typ./ 1.0 max. %
resistive load) 100 Hz - 5000 Hz 0.5 + 0.5 /KHz. %
Output Noise < 0.1 typ. V RMS
Frequency
Range Std model (see V-F rating chart) 16 - 5000 Hz
2001RP-LZ 16 - 500 Hz
Accuracy ± 0.02 %
Resolution 16.00 Hz - 80.00 Hz 0.01 Hz
80.1 Hz - 800.0 Hz 0.1 Hz
800 Hz - 5000 Hz 1 Hz
Current (see I-V rating chart)
RMS Current High / Low V range 6.7 / 13.4 A RMS
Peak Current High / Low V range 22.2 / 44.5 A
Protection
Adj. Current limit Resolution 0.1 A RMS
Modes Const. Current or Const. Volt
Over Temperature √
Over Voltage √
Input
Connection Rear panel terminal block
Line Voltage 2 wire+GND 107/115 V or 208/230 V ± 10% V RMS
Line Current < 35 @ 96V, < 30 @ 115V, < 15 @ 230V A RMS
Line Frequency 47 - 440 Hz
Holdup Time 10 ms
Isolation Input to Chassis/Output 1350 / 2200 V
Measurements (* Requires Option -OP1)
Current Range Low /High 4.000 / 15.00 A RMS
Accuracy 0.2 % FS + 0.3 % rdng
Resolution 0.001 / 0.01 A RMS
Peak Current* Range Low /High 12.00 / 50.0 A
Accuracy 0.5 % FS + 0.5 % rdng
Resolution 0.01 / 0.1 A
Voltage* Range 0 - 300 V RMS
Accuracy 0.1 % FS + 0.05 % rdng
Resolution 0.1 V RMS
Power* Range Low / High 800 / 2000 W
Accuracy 0.5 % FS
Resolution 0.2 W
Power Factor* Range 0.00 - 1.00
Resolution 0.01
Remote Control (* Requires Option -OP1)
Interface* RS232C and IEEE-488
IEEE Functions SH1, AH1, T8, L3, RL2
RS232C settings 19200,8,n,1
Command Language SCPI
Remote Inhibit* Output shut down TTL in, active low BNC
Function Strobe* On V or F change TTL out, active low BNC
Physical
Dimensions HxWxD 5.25/133 x 19/483 x 22/560 in/mm
Weight (net) 73 / 33 lbs / kg
Vibration and Shock Designed to meet NSTA-1A
Temperature Operating 0 to 40 ° C
Storage - 40 to + 85 ° C

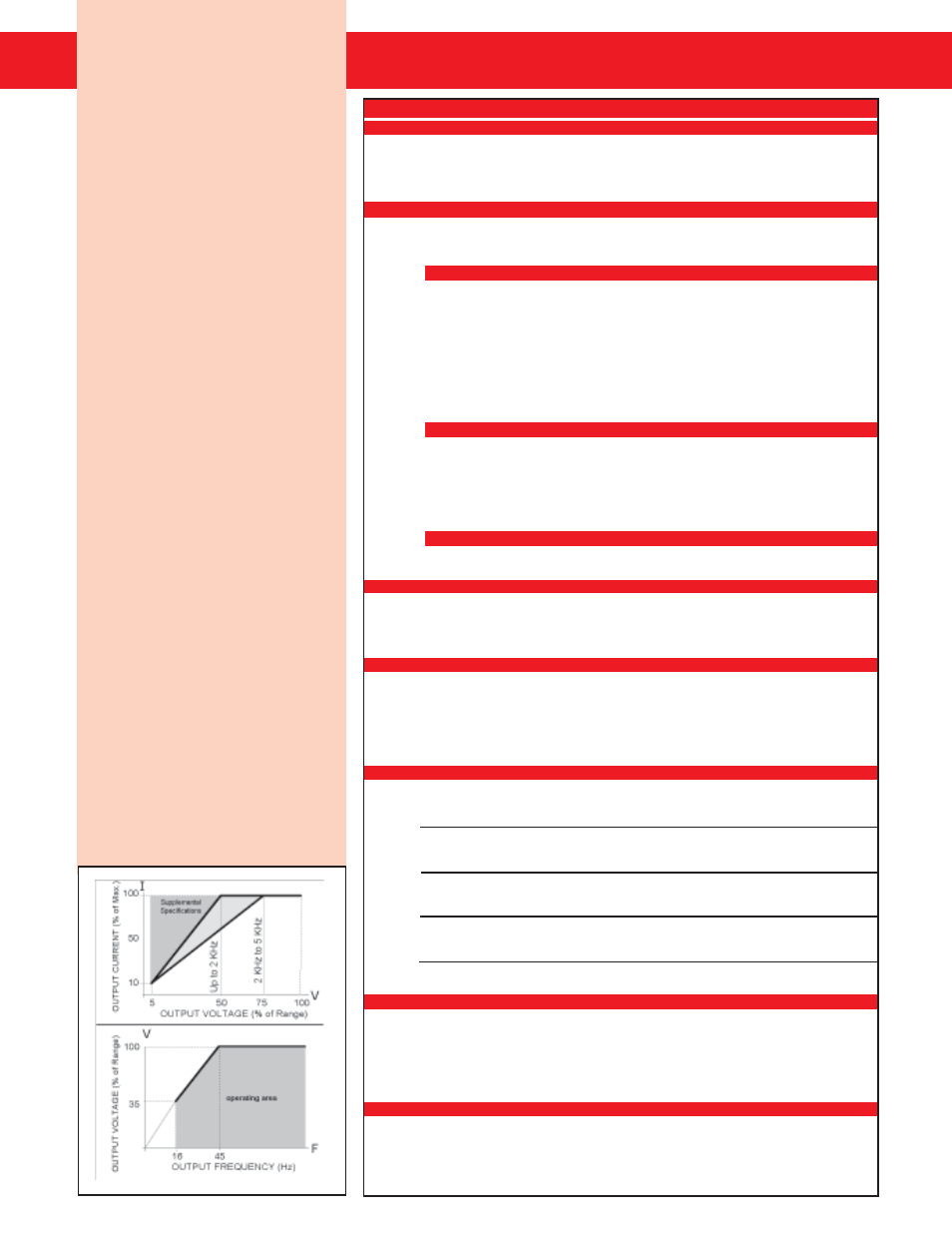

Note: Specifications shown are valid over an ambient temperature range of 25°±5°C. Voltage, Current and Frequency rating charts
