1. Measurement item indicators
2. Select measurement items of current,
power factor, or crest factor
3. Set output voltage, frequency, and current limit
4. Data setting and function keys
5. Rotary knob for adjusting output setting
6. Power switch
7. Status indicators
8. Universal output socket
9. Output enable and disable

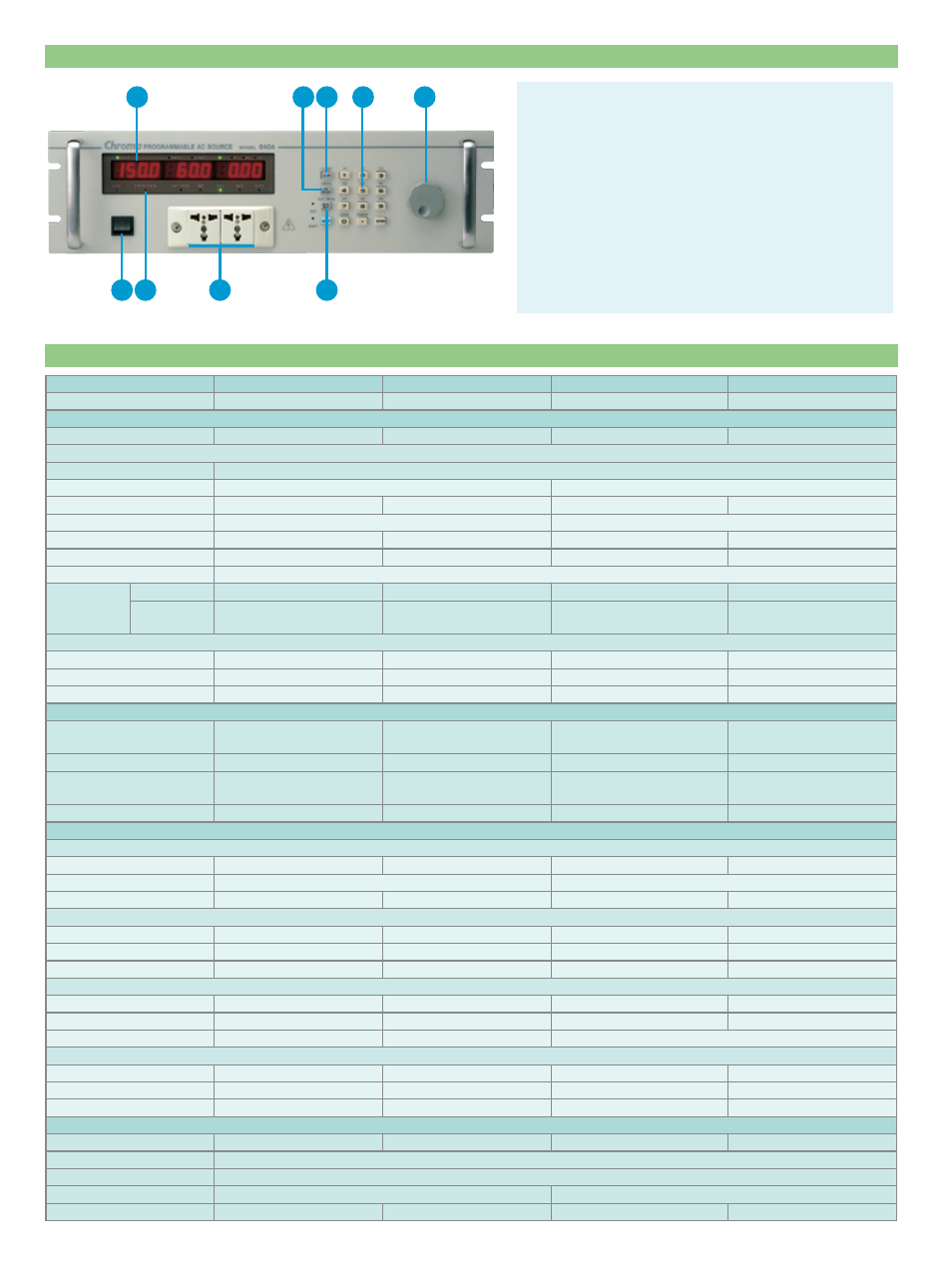

PANEl DESCRIPTION
1 2
6 7 8
3 5 4
9
Model 6404 6408 6415 6420
Output / Phase 1 1 1 1
Output Ratings
Power / Phase
375VA 800VA 1500VA 2000VA
Voltage
Range / Phase
150V/300V/Auto
Accuracy 0.2% F.S. for freq. ≦ 200Hz, 0.4% F.S. for freq. > 200Hz 0.2% + 0.2% of F.S.
Resolution 0.1V 0.1V 0.1V 0.1V
Distortion typical. 0.3% for freq. ≦ 200Hz, 0.8% for freq.>200Hz 0.5% for (45-500Hz), 1% for (> 500-1kHz)
Line Regulation 0.1% 0.1% 0.1% 0.1%
Load Regulation 0.1% 0.1% 0.1% 0.1%
Temp. Coefficient 0.02% per ˚C
Max. current
rms 2.5A/1.25A 5.33A/2.67A 15A/7.5A 20A/10A
peak
7A/3.5A ≦100Hz
5.5A/12.75A >100Hz
14.92A/7.47A ≦ 100Hz
7.47A/5.87A >100Hz
45A/22.5A ≦ 100Hz (45-100Hz)
37.5A/18.75A (>100-1kHz)
60A/30A (45-100Hz)
50A/25A (>100-1kHz)
Frequency
Range
45-500Hz 45-500Hz 45-1000Hz 45-1000Hz
Accuracy 0.1% 0.1% 0.1% 0.1%
Resolution 0.1Hz 0.1Hz 0.1Hz 0.1Hz
Input Ratings
Voltage Range 90-132V / 180-250V
90-132V (6408-1),
180-250V (6408-2)
190-250V, 1Ø 190-250V, 1Ø
Frequency Range 47-63Hz 47-63Hz 47-63Hz 47-63Hz
Current 7.5A max.
12A max.(6408-1),
6A max. (6408-2)
12A max. 15A max.
Power Factor 0.8 typical. 0.98 min. 0.95 min. 0.97 min.
Measurement
Voltage / Phase
Range
0-150V/0-300V 0-150V/0-300V 0-150V/0-300V 0-150V/0-300V
Accuracy (rms) 0.1% + 0.1% F.S. 0.25% + 0.1% F.S.
Resolution 0.1V 0.1V 0.1V 0.1V
Current / Phase
Range (peak
0-2A/2-10A 0-4A/4-20A 0-70A 0-100A
Accuracy (rms) 0.5% + 0.2% F.S. 0.5% + 0.2% F.S. 0.4% + 0.2% F.S. 0.4% + 0.15% F.S.
Resolution 0.01A 0.01A 0.01A 0.01A
Power / Phase
Range
0-375W 0-800W 0-1500W 0-2000W
Accuracy 0.5% F.S. 0.5% F.S. 1% F.S. (CF<6) 1% F.S. (CF<6)
Resolution 0.1 W 0.1 W 0.1 W for P<1000W, 1W for P>1000W
Frequency
Range
45-500Hz 45-500Hz 45-1000Hz 45-1000Hz
Accuracy 0.02% 0.02% 0.02% 0.02%
Resolution 0.1Hz 0.1Hz 0.1Hz 0.1Hz
Others
Efficiency
75% typical 80% typical 80% typical 80% typical
Protection UVP, OVP, OCP, OPP, OTP, Short
Safety & EMC CE (Include LVD and EMC Requirement)
Dimension (H x W x D) 133.35 x 482.6 x 471.4 mm / 5.25 x 19 x 18.56 inch 221.5 x 425 x 567 mm / 8.72 x 16.73 x 22.32 inch
Weight 18 kg / 39.65 lbs 23 kg / 50.66 lbs 23 kg / 50.66 lbs 27 kg / 59.47 lbs
