An IEEE 1394 port provides direct connec-
tion to a 500 MHz minimum Intel
® Celeron
or AMD K-6 II (or equivalent) PC running
Windows 2000 Professional. Purchase
additional quantities of E5851A (IEEE 1394
PCI card and cable) so the instrument can
be shared throughout the team.
PC-hosting allows you to see your design
with the same display size and resolution
of your regular working environment.
Trigger In/Trigger Out BNCs allow you
to trigger or arm external devices and
to receive signals that can be used to
arm the logic analyzer.
Cables connect conveniently to your
target from the front of the analyzer.
Access to your captured traces, your ability
to store and retrieve data, and your print
capabilities depend on your PC and network
environment.
A smaller footprint saves valuable workspace
and makes for easy portability.

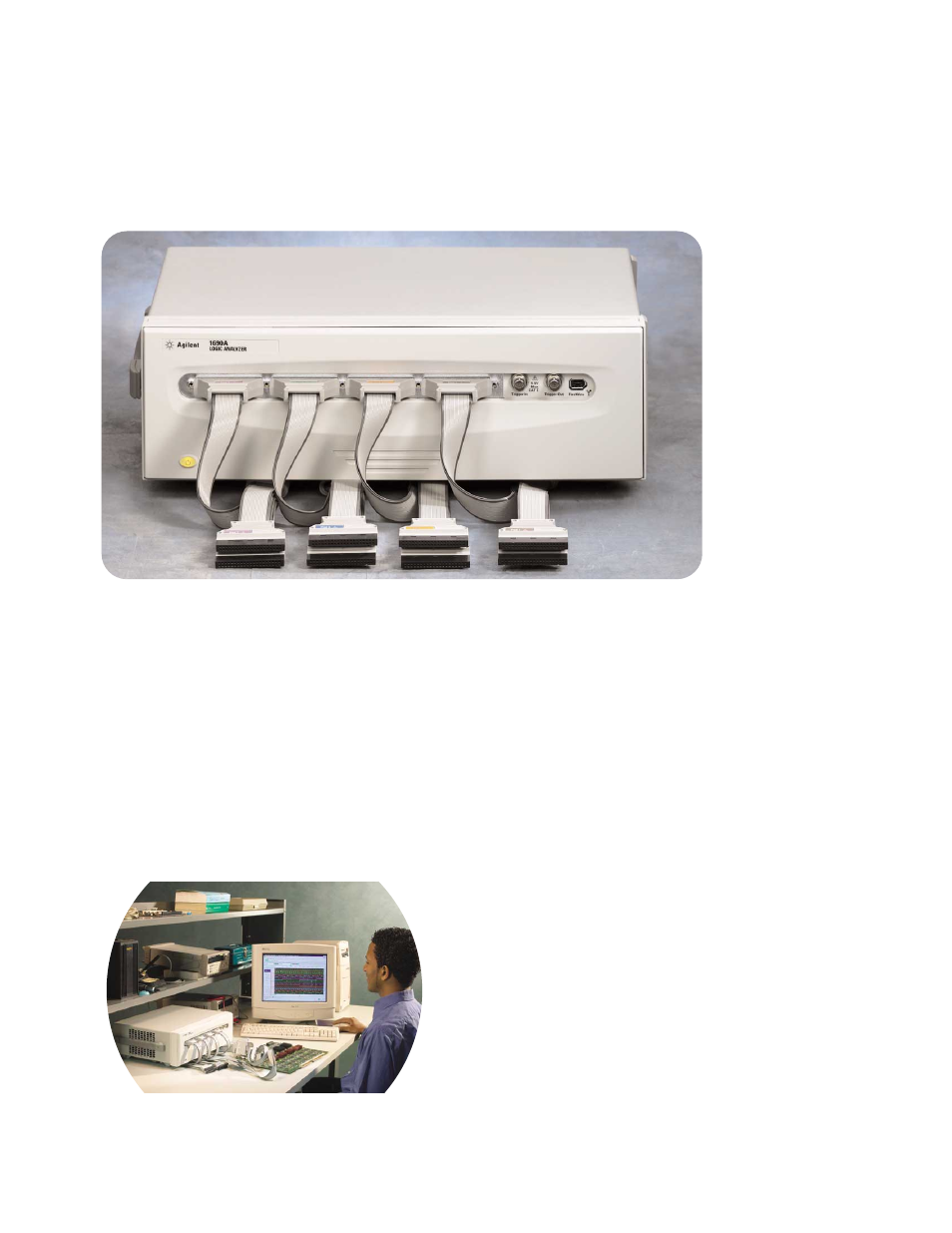

PC-hosted 1690 Series
Agilent’s 1690 Series PC-hosted logic analyzers provide the lowest price point for
high-performance logic analysis. They allow you to carry out your debug work in
your familiar PC environment.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
