11

136 102

68

34

Channels

Channels

Channels

Channels

Standalone 1680 Series

Standard Memory

1680A

1681A

1682A

1683A

Deep Memory

1680AD

1681AD

1682AD

1683AD

PC-Hosted 1690 Series

Standard Memory

1690A

1691A

1692A

1693A

Deep Memory

1690AD

1691AD

1692AD

1693AD

NOTE: Probes are ordered separately. Please specify probes when ordering to ensure the correct connection between your logic analyzer
and device under test. Order any combination and quantity of the probes listed on page 10.

A family of high-performance logic analyzers
at an affordable price

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

2

3

Choose the
form factor

Choose the
memory depth

Select the channel count.

Measurement Modes

Memory Depths

Timing: 800/400 MHz

Standard (‘A‘ Series): 1 M/512 K (full/half channel)

(half/full channel)

Deep (‘AD’ Series): 4 M/2 M (half/full channel)

State: 200 MHz

Standard (‘A’ Series): 256 K
Deep (‘AD’ Series): 1 M

Transitional Timing: 200 MHz

Standard (‘A‘ Series): 256 K
Deep (‘AD’ Series): 1 M

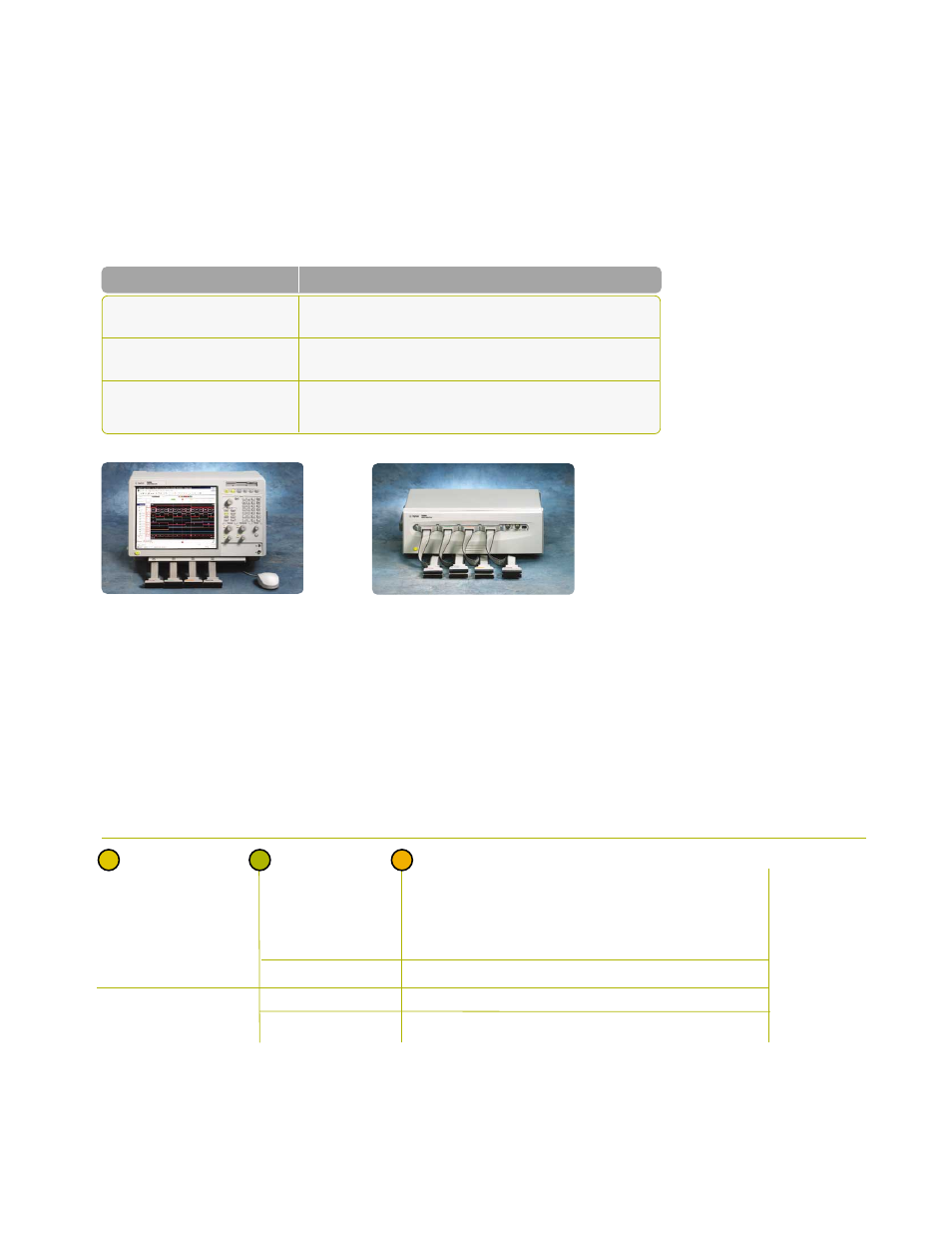

Agilent’s Windows-based logic analyzers are designed to match your work style, application
and budget. All, models offer a variety of channel counts and memory depths in
standalone or PC-hosted form factors. Each provides the same performance, core features and
functionality in a small footprint that saves valuable workspace.

1680 Series

• Self-contained standalone instrument

• Large, built-in, 12.1-inch color display

• Cable flexibility—front or back

• Front panel knobs and hot keys

• Includes a mouse, mini keyboard, front

panel cover and accessory pouch

1690 Series

• PC-hosted instrument

• Uses PC display

• Cable connection from the front

• Small footprint, lowest price

• Includes desktop IEEE 1394 PCI card

and cable, laptop IEEE 1394 cable and
accessory pouch

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Selecting a logic analyzer to meet your application and budget is as easy as 1, 2, 3.
