Solutions for Various Measurement Needs

Products that offer many features are often complicated to use. The MT9083A however, simplifies operation by offering task-

specific testing modes that automate testing and guide novice users. Dedicated testing modes are available for fault location,

cable installation, loss budget testing, visual fault location and IP testing.

Simple Operation

To simplify testing, the MT9083A features dedicated

measurement modes via the top menu to automate and

simplify the task at hand.

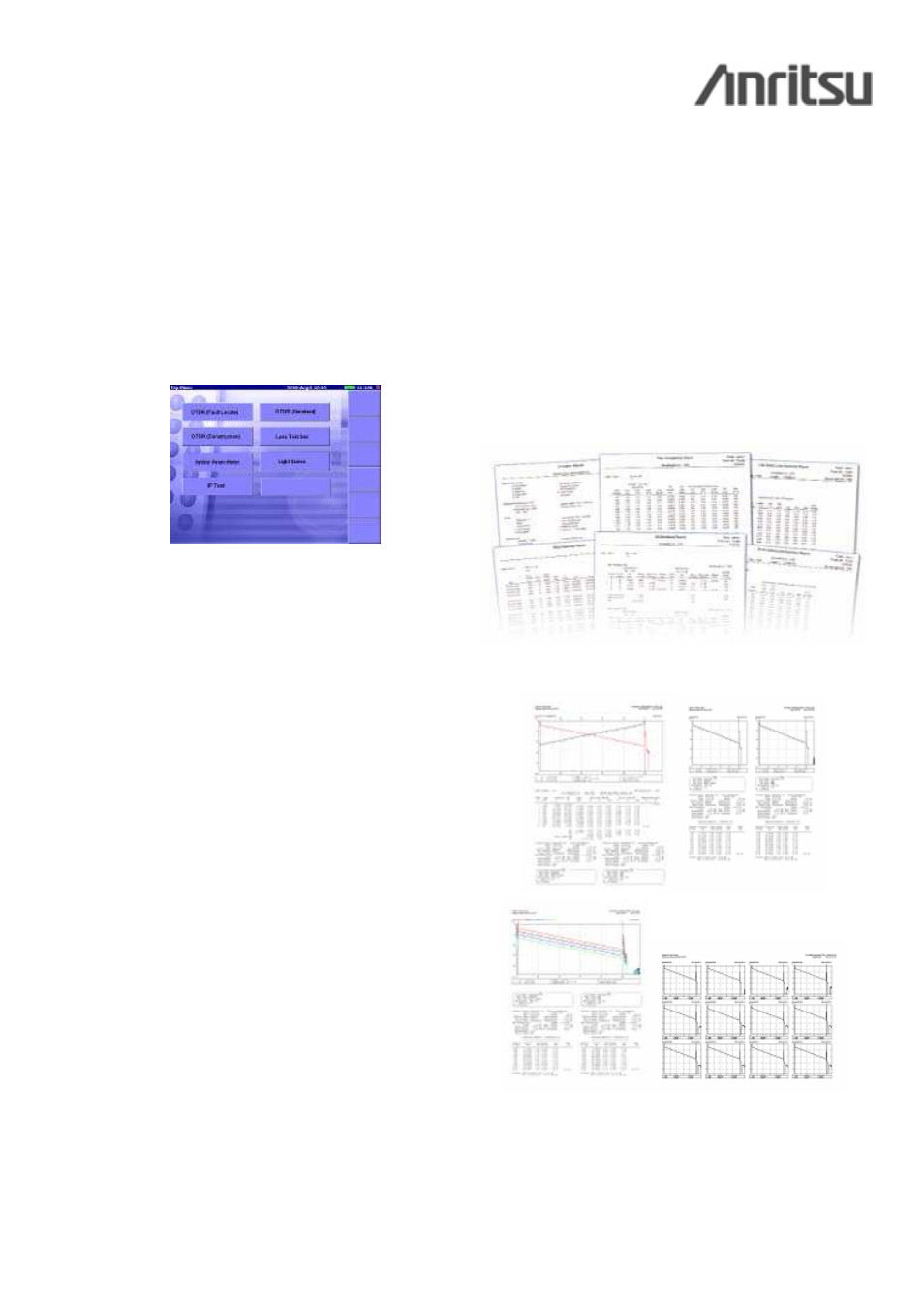

Fig.3: Dedicated measurement modes simplify testing for any skill level

Fault Location

FAULT LOCATE mode is designed for the novice or

someone who only uses an OTDR occasionally. Simply

connect the fiber and press START. The unit will verify the

fiber is connected correctly, select testing parameters and

provide a text response indicating fault/break location - easy

to read results for any skill level.

General OTDR Testing

For those who have more experience or would like to

perform more advanced testing, STANDARD OTDR mode

allows the user to set all parameters and compare traces

manually, automatically or somewhere in between.

Optical Fiber Construction and Certification

When final cable acceptance is the task at hand,

CONSTRUCTION mode greatly simplifies operation

through its innovative wizard. Select the required testing

wavelengths, number of fibers and file naming scheme and

construction mode acts as the project manager guiding the

user through the testing, while ensuring consistency with

testing parameters and filenames – virtually eliminating user

induced errors and missing files.

Value

Whatever your construction or maintenance needs, the new

ACCESS Master MT9083A is designed to reduce the time

to install, commission and maintain your optical networks –

without breaking your budget.

NETWORKS PC Software for Analysis and
Reporting

Once the data is collected, NetWorks PC emulation software

makes analysis and report generation a breeze. Professional

reports including splice loss, fiber acceptance and exceptions

as well as various printing options are possible with only a

few mouse clicks.

Fig.4: Comprehensive, professional reports are easily generated

Fig.5: Various printing options ensure you have the results you need.
