T-BERD 6000 COMPACT OPTICAL TEST PLATFORM
A Wide Range of OTDR Modules
JDSU has developed a wide range of field-interchangeable OTDR modules that
are suitable for any application on any type of network. JDSU offers over thirty
OTDR modules for testing and troubleshooting any multimode or singlemode
network. The T-BERD 6000 features JDSU’s industry-leading 50 dB UHD OTDR
module.
High Performance
The JDSU OTDR module product line is the industry’s reference for
performance. The T-BERD 6000 features both the new VLR and UHD OTDR
modules and offers:
– Best-in-industry optical specifications
– Highest dynamic range (50 dB at 1550 nm)
– Shortest event dead zones (80 cm for the VLR module)
– Best-in-industry data acquisition speeds

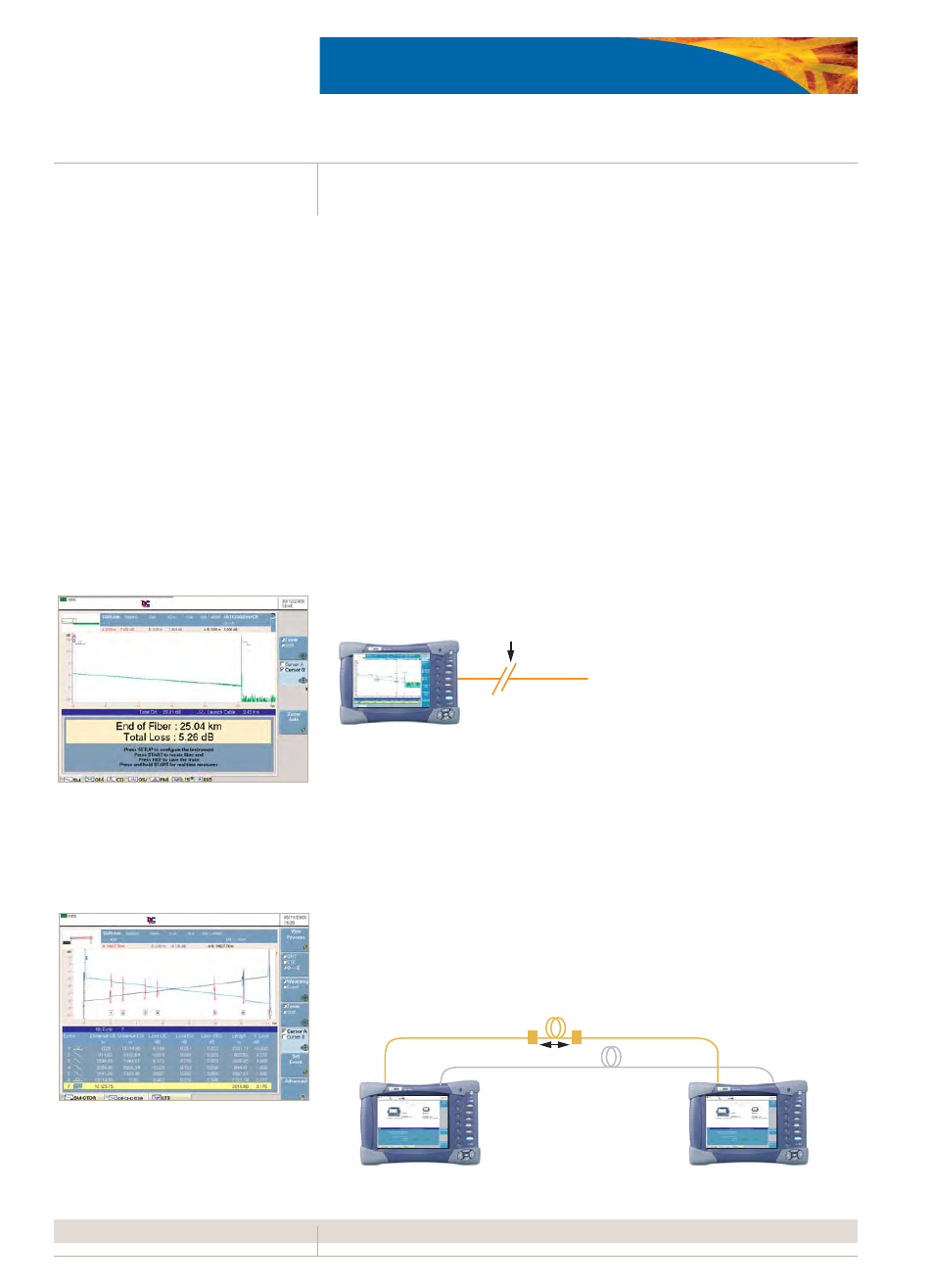

Fast and Precise Troubleshooting
4
Break/Fault
Industry leader for dynamic
range with 50 dB
Revolutionary 80 cm dead zone
– Fast detection
– Precise fault location
– One button automation
– No specific settings required
– Distance, loss, and ORL measurements
Unique to the market:
Automatic bi-directional
acquisition and analysis
Ideal for End-to-End Commissioning
OTDR bi-directional testing is required in order to obtain true and accurate splice
loss readings. JDSU has developed an innovative automatic bi-directional analysis
function that is integrated directly into the T-BERD 6000 platform, saving at least
50% of the time required for traditional bi-directional analysis.
– True splice loss measurement
– Reveals events that are hidden by dead zones in one direction
– Eliminates operator error by using the same setup
– Automatic fiber continuity check
– Immediate trace alignment with the correct parameters
Tested Fiber
Data
Local
T-BERD 6000 T-BERD 6000
Remote
The T-BERD 6000 Covers All OTDR Applications
