VEHICLE PREPERATION

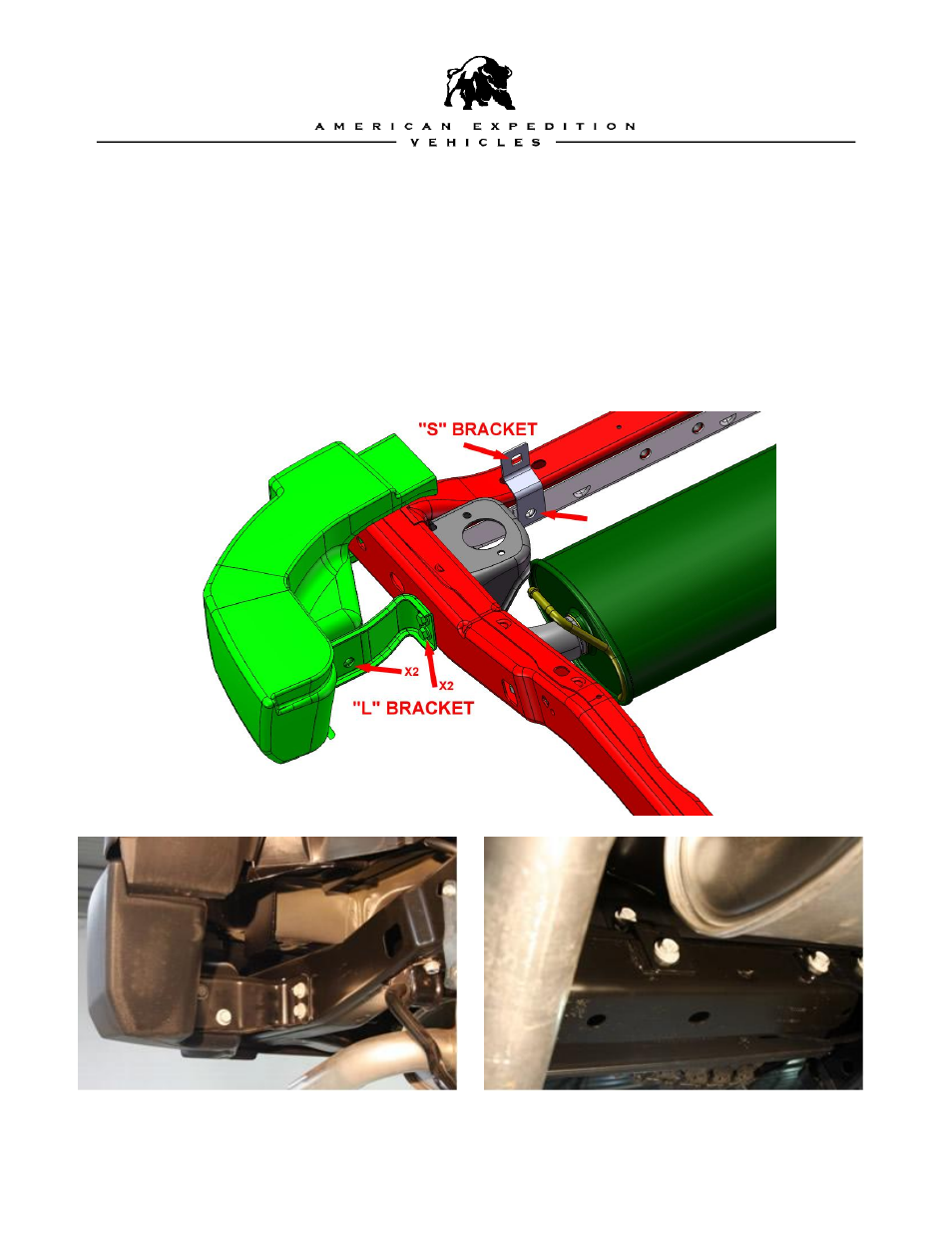

A. REMOVAL OF THE FACTORY REAR BUMPER
1. Remove the four bolts that a
ttach each of the “L” brackets to the frame and bumper.
SAVE
the “L” brackets and bolts for later use. MARK the “L” brackets Left and Right.
2. Remove the two bolts that attach each “S” bracket from the bumper and rear cross
member. You can discard the factory rear bumper,
“S” brackets, and bolts if installing the
AEV JK Rear Bumper. If you are installing the AEV Tire Carrier only you’ll need to save
this hardware.
“L” BRACKET “S” BRACKET
