Preliminary Operating Instructions 11 of 62 AIP SERVICE NUMBER 1-800-863-3364

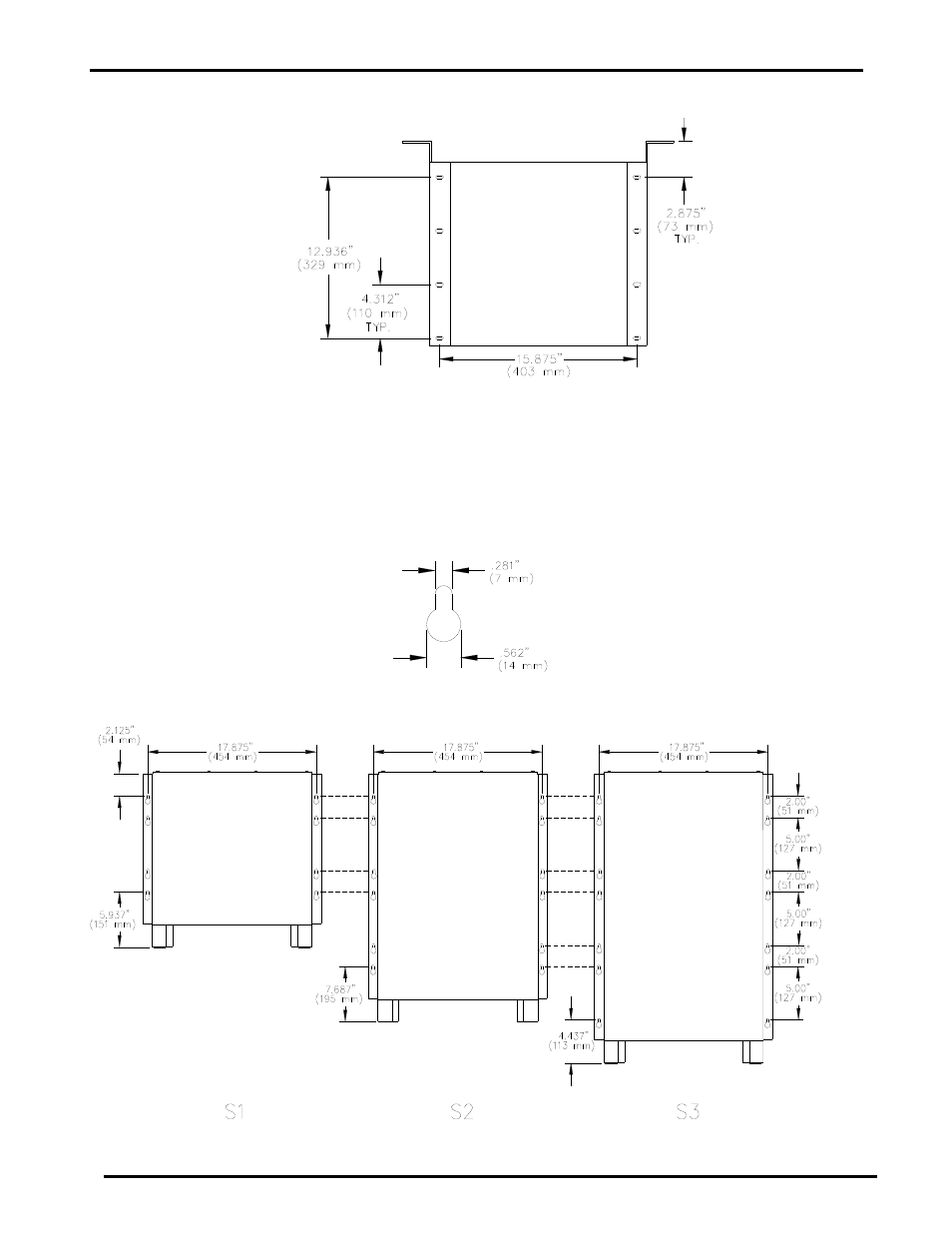

FIGURE 5.1: BOTTOM MOUNTING HOLE DIMENSIONS

5.2 WALL MOUNTING

The S1, S2 and S3 cabinets have built-in wall mounting flanges at the rear. When these flanges are
mounted flush against the wall, they provide for a clear airflow space at the rear of the charger. This
space should not be reduced or obstructed in any way.

The mounting flanges each have a series of keyhole slots. These are designed to conveniently engage
a ¼” (6mm) diameter bolt. The mounting flange bolt hole patterns are shown in FIGURES 5.2-1 and
5.2-2.

FIGURE 5.2-1: KEYHOLE DIMENSIONS

FIGURE 5.2-2: CHARGER WALL MOUNTING HOLES
