Enclosure installation – Alpha Technologies PWE Battery Enclosure (BE) User Manual
Page 16
1. Installation
16
033-077-C0-002 Rev. B
1.1.6. Cable Connections
Power Supply
1.
Verify the BATTERY BREAKER on the power supply is in the OFF
position. Unplug the existing battery pack and RTS from the
front of the power supply.
2.
Plug the ‘Y’ adapter into the front of the power supply.
Connect both battery packs to the remaining plugs of the ‘Y’
adapter.
1.1
BE Installation, continued

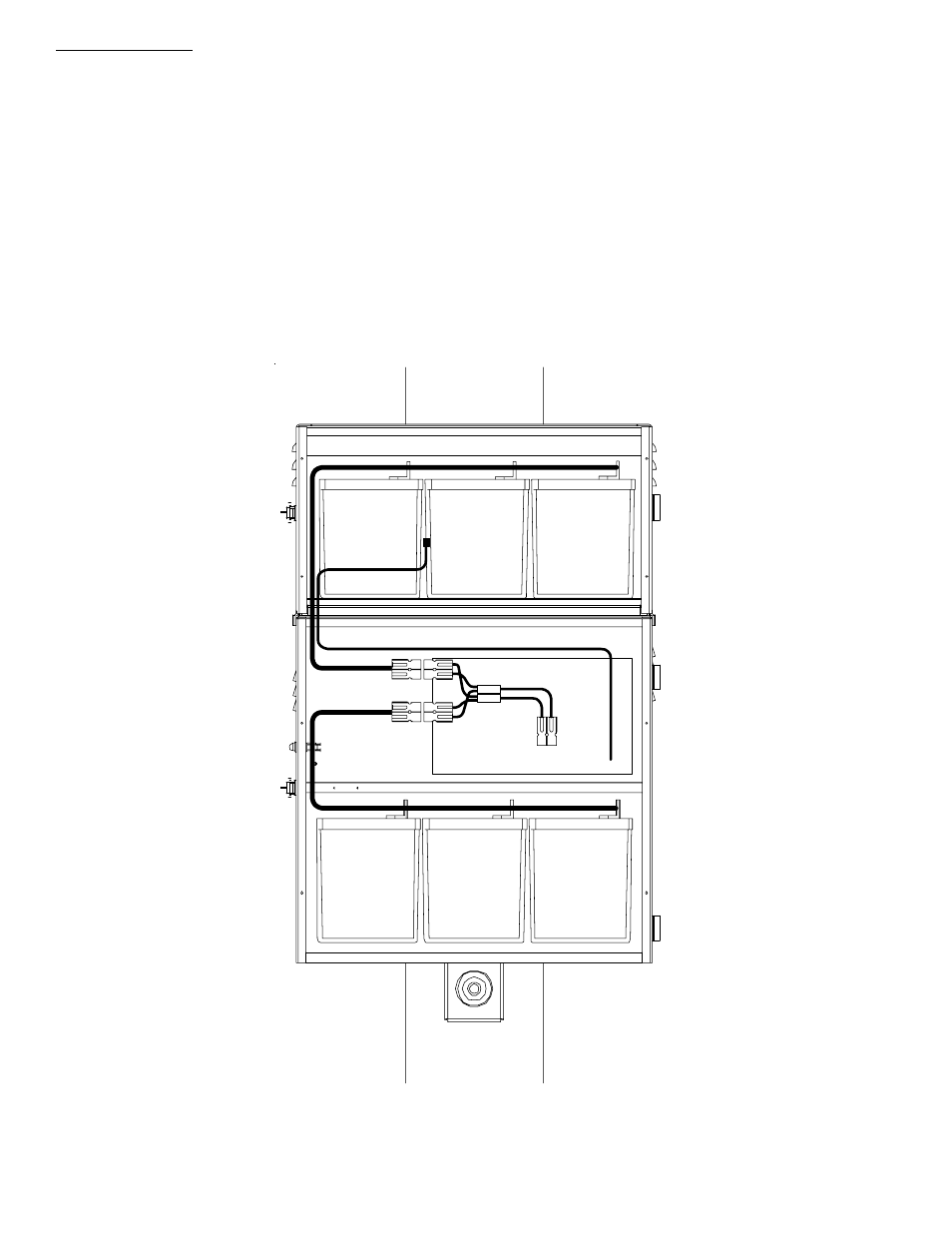

Fig. 1-7 Cable Routing
