Rain guard installation 13 – Alpha Technologies PWE Battery Enclosure (BE) User Manual
Page 13
1. Installation
13
033-077-C0-002 Rev. B
REAR VIEW
LEFT SIDE VIEW
1.1.3. Rain Guard Installation
1.
If required, rivet the rain guards to the PWE-BE enclosure.
2.
Using a #19 drill bit (0.166”), drill out the rivet hole ‘dimples’ on
the sides or rear of the enclosure. Install the rain guards with
the rivets included in the PWE-BE kit.
1.1
BE Installation, continued

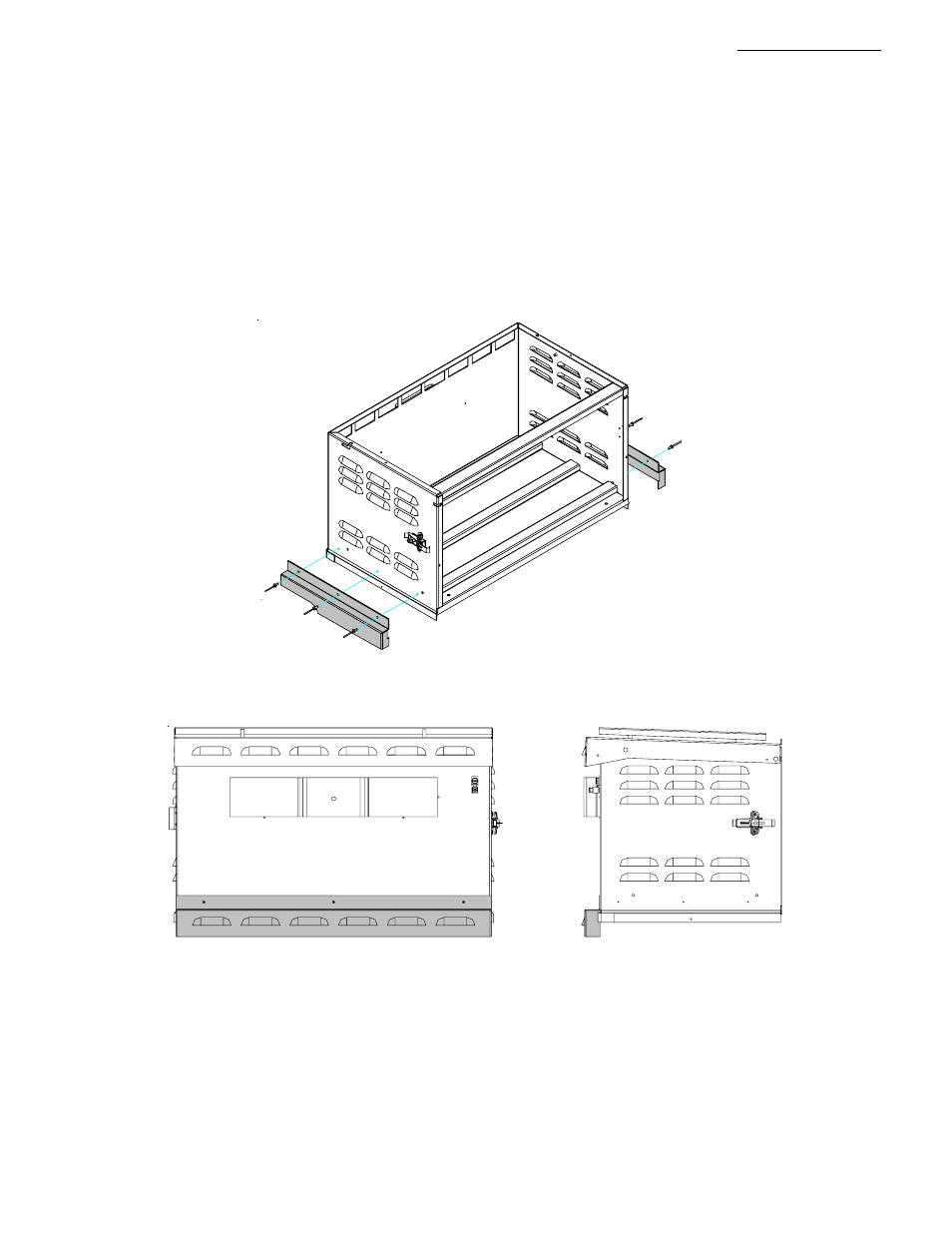

Fig. 1-4 Installing Rain Guards.
