1. Installation
15
033-077-C0-002 Rev. B
1. Remove the BE enclosure lid, and hang to the side on the
lanyard. Install three batteries as shown below. Attach Battery
Cable Kit and remote temperature sensor according to the
diagram.
2. Using a multimeter, verify that the battery pack has at least
36 VDC at the connector. Verify polarity is correct (red = pos,
black = neg)
1.1.5. Battery Installation
POS
NEG
+ + +
- - -
Temp Sensor
1.1 BE Installation, continued

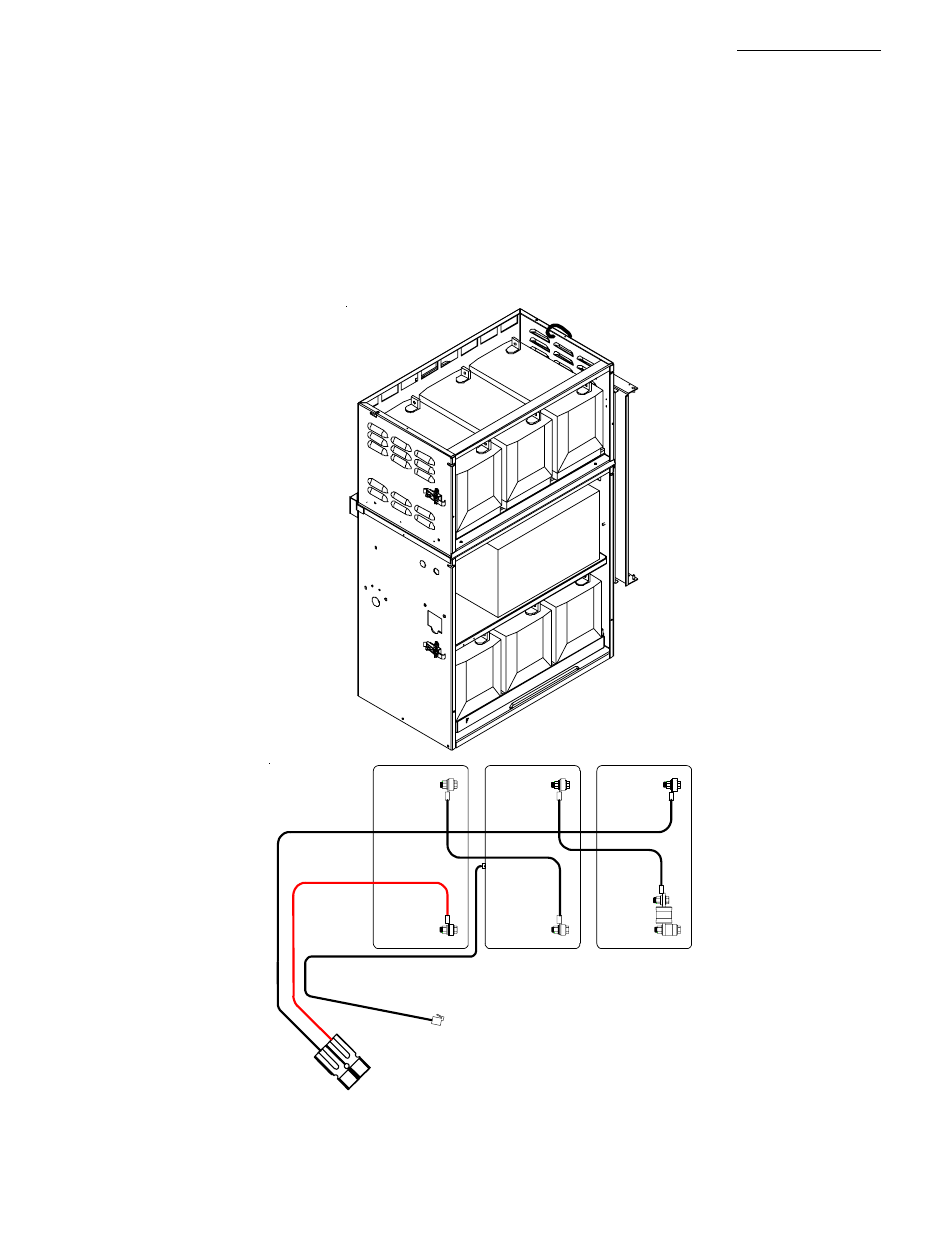

Fig. 1-6 Battery and TRS Placement and Connection
