1. Installation
11
033-077-C0-002 Rev. B
WARNING: Follow all manufacturer’s operating and safety instructions for
the use of power tools and punch drivers. Set BATTERY
BREAKER on the power supply to the OFF position.
Secure service power to the enclosure for the duration of
the installation.
1. Place the drilling template on top of the upper pole bracket, and
hold flush against the pole. Use the upper hole for the New
PWE, and the lower hole for the Type I and Type II PWE.
2. Mark the hole location, and remove the template. Drill a 3/4” hole
through the pole.
1.1 BE Installation, continued
1.1.2. Mounting Bracket Installation

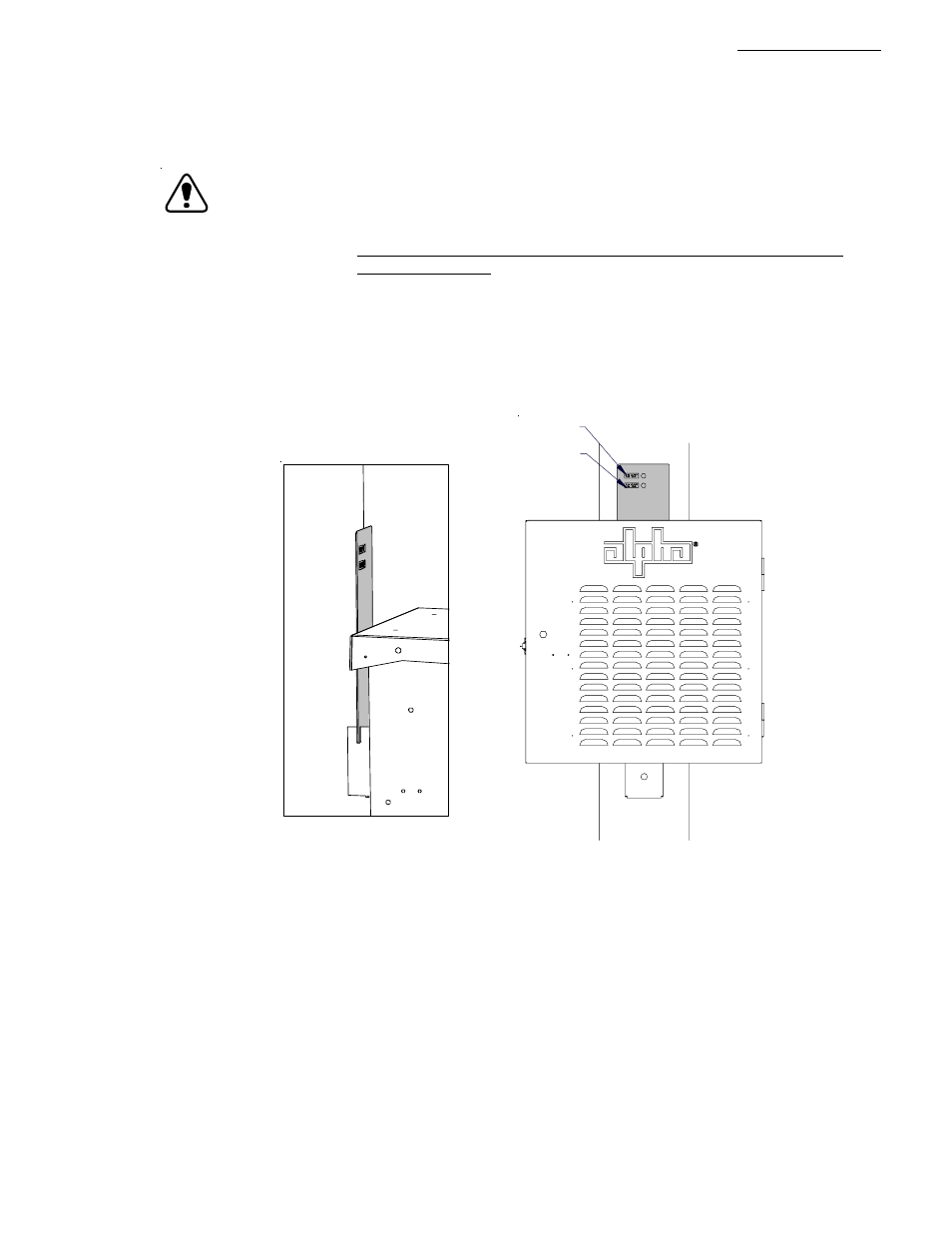

Fig. 1-1 Placing Template
13 1/2"
12 1/2"
