9 745-419-C0-002, Rev. B
AUX PWR
LOCAL
RX
TX
1
LCL
RDY
1.0 Introduction to the DOCSIS Transponder, continued
1.2 LED Indicators

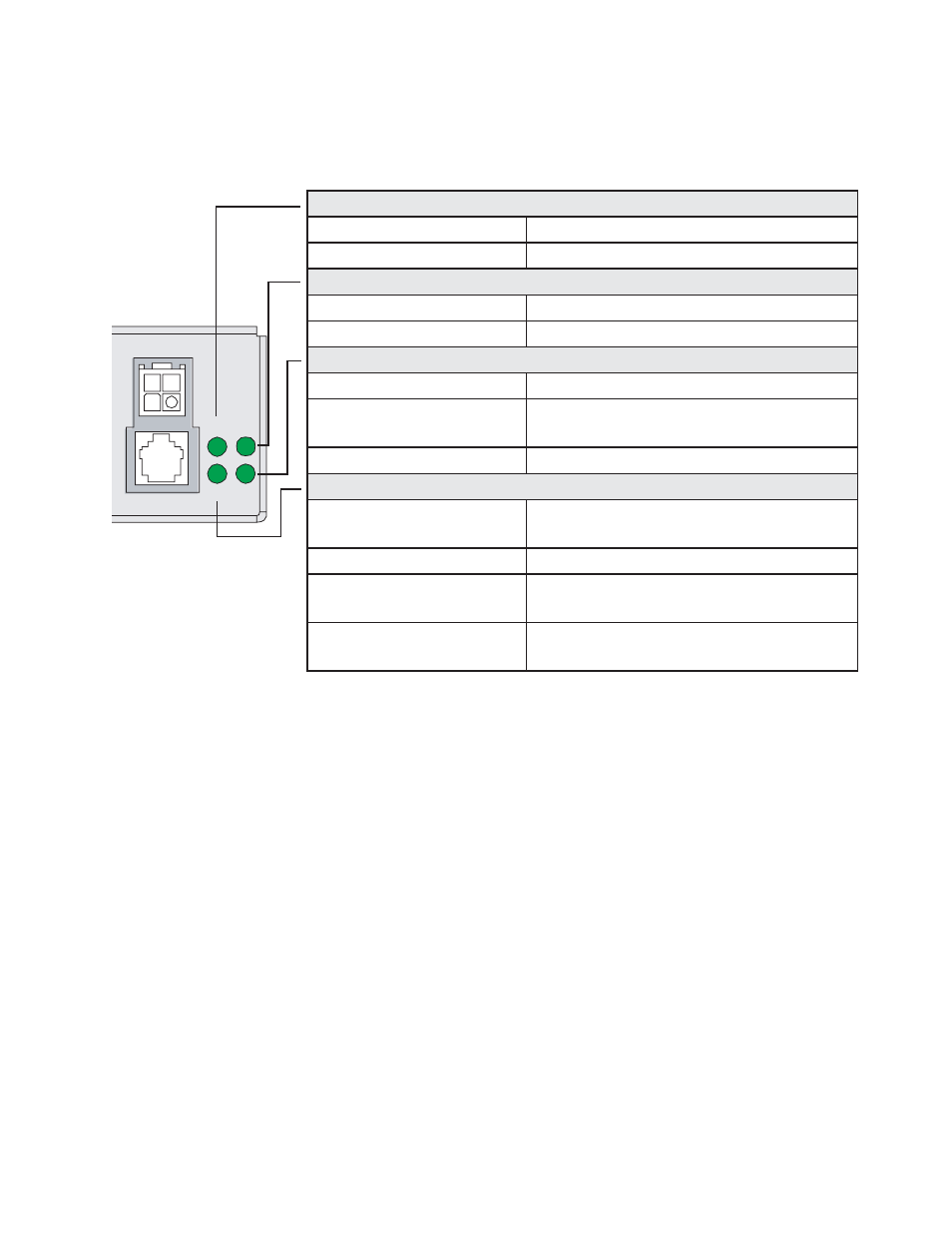

Fig. 1-3, LEDs
TX: Indicates status of data transmission to CMTS.
OFF: Idle Status.
Flickering ON: Communicating with CMTS.
LCL: Indicates the status of the local Craft port.
OFF: No communication.
ON fl ickering OFF: Ongoing communication.
RDY: Indicates operation status of the transponder.
Flashing ON and OFF: Normal Operation.
OFF: No power or malfunctioning transpon-
der.
ON: Transponder reset in progress.
RX: Status of data reception from CMTS.
ON: Communication established with
CMTS.
OFF: No communication with CMTS.
ON fl ickering OFF: Receiving data, CMTS link estab-
lished.
Flashing ON & OFF: Indicates loss of communication with
CMTS
