Alpha Technologies AlphaNet Series External DOCSIS Analog - Manual (Page 24)

24 745-419-C0-002, Rev. B
SPI
PWR SPLY
R
F
BAT C/D
BAT A/B AUX PWR
LOCAL RX
TX
1 1
1 1
ZTT/+
Vout/Iout Sense
Alpha P/N 875-456-10
Vin
Sense
#4
48V
#1
12V
#2
24V
#3
36V
Battery Sense Cable Kits (see Section 5.0)
RTS Cable
Alpha P/N 745-178-21
Tamper W ire Kit
Alpha P/N 875-494-20
2.0 Transponder Installation, continued
2.6 Input and Output Connections, ZTT and ZTT+ Models

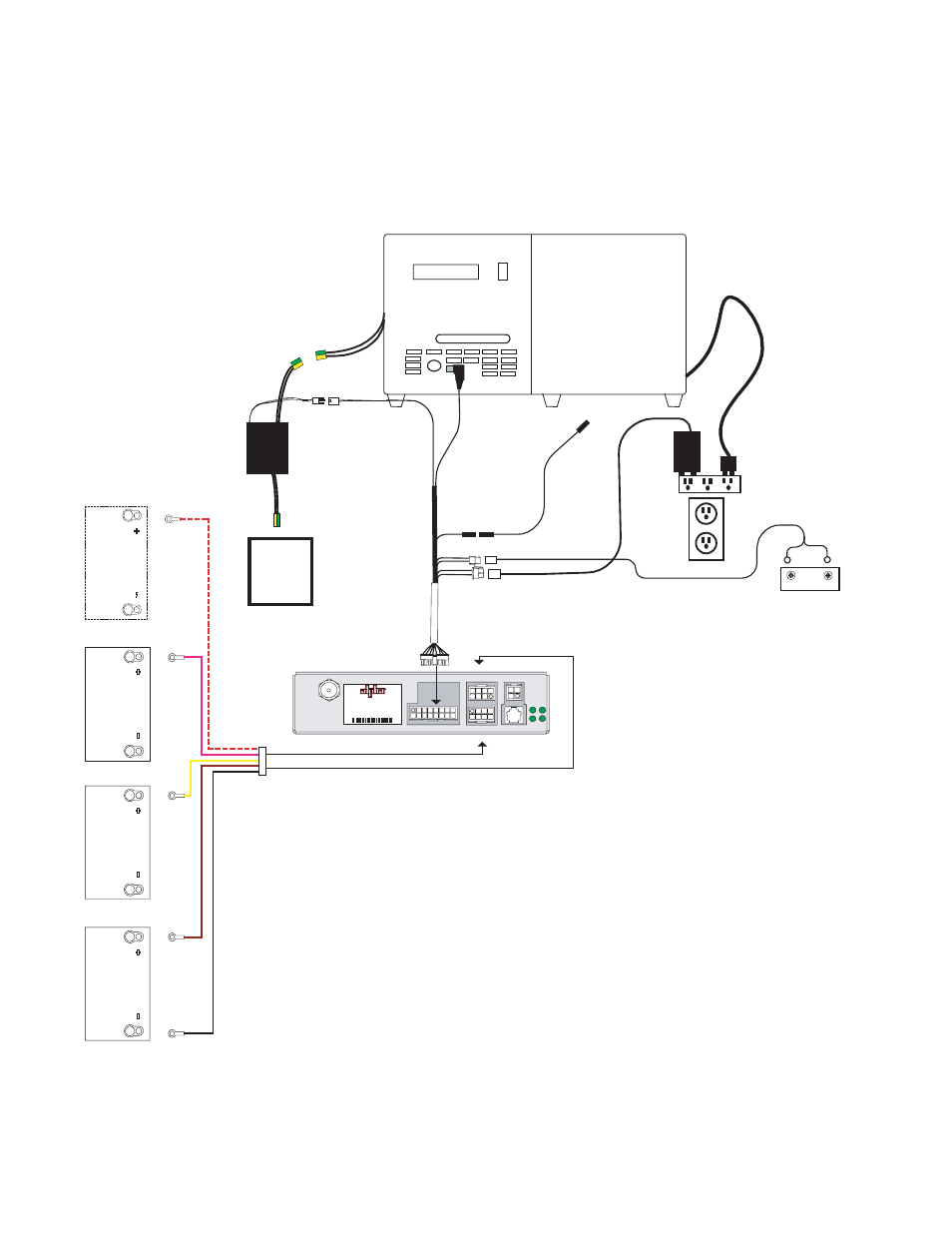

Fig. 2-7, Input and Output Connections, ZTT and ZTT+ Models
Power Supply Interface Cable
Alpha P/N 875-335-22 (ZTT & ZTT/+ post 1998)
Alpha P/N 875-335-23 (ZTT/+ pre 1998)
